SP 60 (1696596-00) - Snapper 21" Walk-Behind Mower, 675 Series Briggs Wheels Group Parts Diagram

21" Walk-Behind Mower, 675 Series Briggs

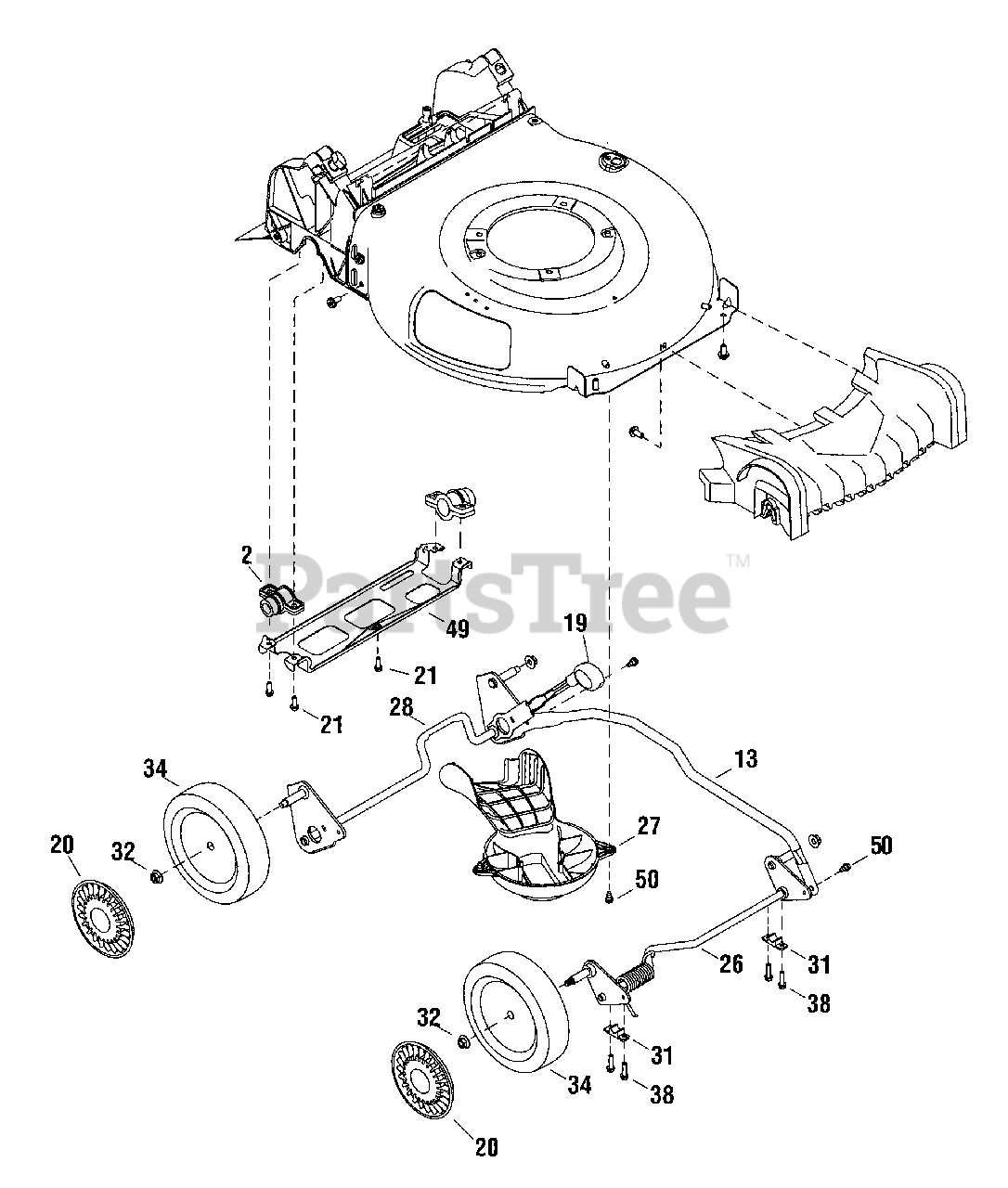

Wheels Group Parts Diagram

  • Title

2

Snapper 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

13

Snapper 707950

BRACKET, Cross

$99.99

$

Usually ships in 2-12 days

0

19

Snapper 703488

KNOB, Adjustment Lever

$17.99

$

Usually ships in 2-12 days

0

20

Snapper 703511

HUBCAP, Front, 8" Silver

$9.99

$

Usually ships in 2-12 days

0

21

Snapper 7900023SM

SCREW, 1/4-15 x 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 2 left!

0

26

Snapper 703549

AXLE ASSEMBLY, Front

$114.99

$

Usually ships in 2-12 days

0

27

Snapper 703471

BAFFLE, Engine

$52.99

$

Usually ships in 2-12 days

0

28

Snapper 703548

AXLE ASSEMBLY, Rear

$116.99

$

Usually ships in 2-12 days

0

31

Snapper 703524

BUSHING, Lock

$10.99

$

Usually ships in 2-12 days

0

32

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

34

Snapper 703473

WHEEL, 8 x 2, Black

$50.99

$

In Stock, only 4 left!

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

49

Snapper 703542

SUPPORT, Rear Bracket

$26.99

$

Usually ships in 2-12 days

0

50

Snapper 703521

BOLT, Shoulder, 1/4-20 x 1/2

$11.99

$

Usually ships in 2-12 days

0
