SP 60 (1696596-00) - Snapper 21" Walk-Behind Mower, 675 Series Briggs Deck Group Parts Diagram

21" Walk-Behind Mower, 675 Series Briggs

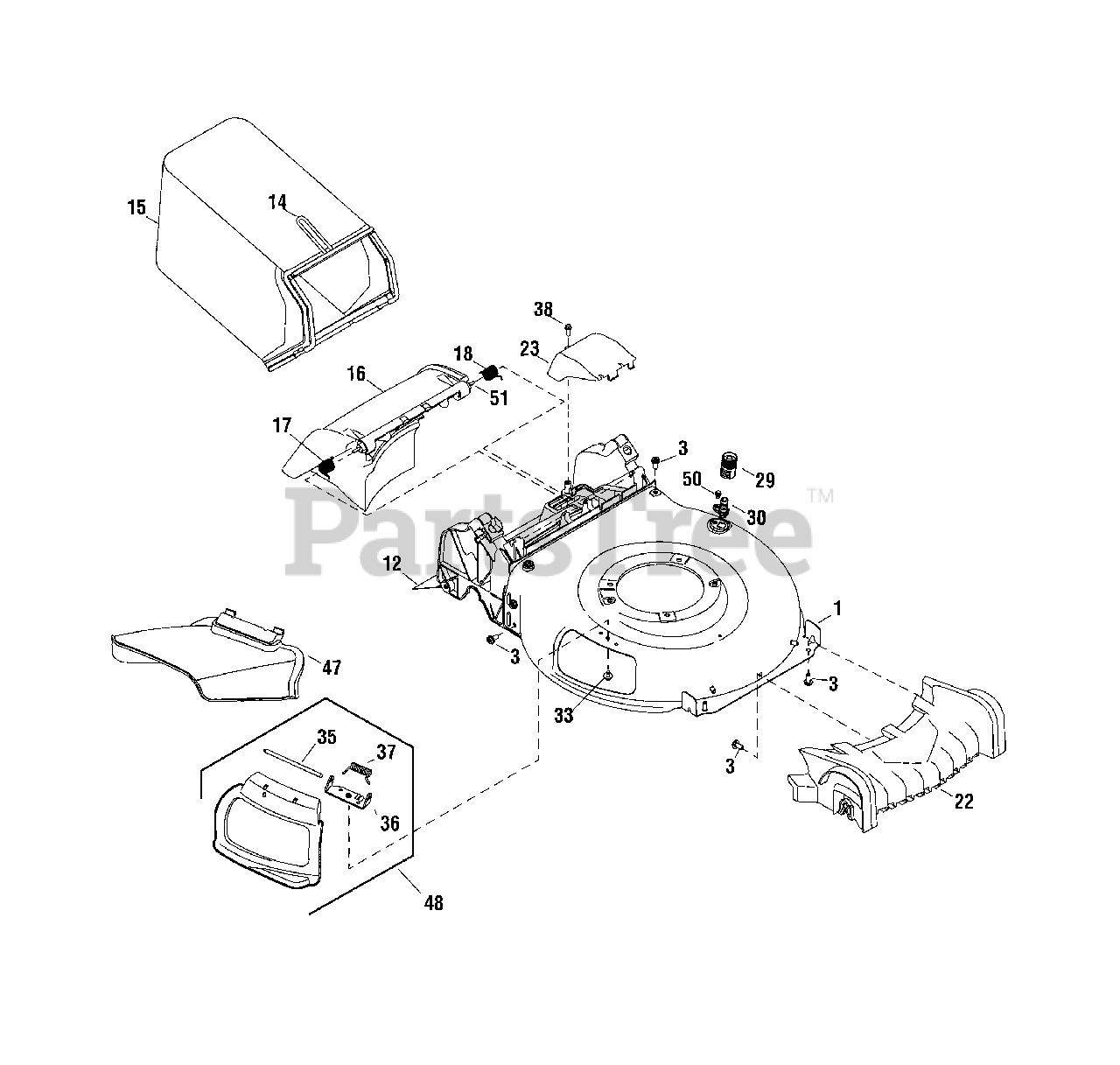

Deck Group Parts Diagram

  • Title

1

DECK, 21"

Note: Not Serviceable

$

$

Not available

3

Snapper 703482

SCREW, 5/16-14 x 3/4

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 703499

SHIELD, Trailing

$18.99

$

Usually ships in 2-12 days

0

14

Snapper 707951

FRAME, Grass Bag

$173.99

$

Usually ships in 2-12 days

0

15

Snapper 703385

BAG, Grass

$137.99

$

In Stock, only 1 left!

0

16

Snapper 703472

DOOR, Rear Discharge

$108.99

$

Usually ships in 2-12 days

0

17

Snapper 705878

SPRING, Torsion, RH

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 705879

SPRING, Torsion, LH

$14.99

$

Usually ships in 2-12 days

0

22

Snapper 703509

COVER, Front

$80.99

$

In Stock, only 1 left!

0

23

Snapper 703506

COVER, Transmission

$19.99

$

Usually ships in 2-12 days

0

29

Snapper 703557

ADAPTER, Water Nozzle

$41.99

$

Usually ships in 2-12 days

0

30

Snapper 703502

NOZZLE, Water

$5.99

$

In Stock, only 2 left!

0

33

Snapper B4300GS

SCREW, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

35

Snapper 703529

PIN, Hinge

$10.99

$

In Stock, only 3 left!

0

36

Snapper 703538

BRACKET, Chute Deflector

$9.49

$

In Stock, only 3 left!

0

37

Snapper 703517

SPRING, Torsion

$13.99

$

In Stock, Qty 5

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

47

Snapper 703377

CHUTE, Side Discharge

$49.99

$

In Stock, only 2 left!

0

48

Snapper 707912

MULCH PLUG

Note: (Includes Ref. Nos. 35, 36, & 37)

$67.99

$

In Stock, Qty 7

0

50

Snapper 703521

BOLT, Shoulder, 1/2-20 x 1/2

$11.99

$

Usually ships in 2-12 days

0

51

Snapper 703525

ROD, Pivot

$6.49

$

Usually ships in 2-12 days

0
