SP 53 BPE - Shindaiwa Manual Sprayer, Backpack (SN: MSP10000001 - MSP99999999) Pump Lever Parts Diagram

Manual Sprayer, Backpack

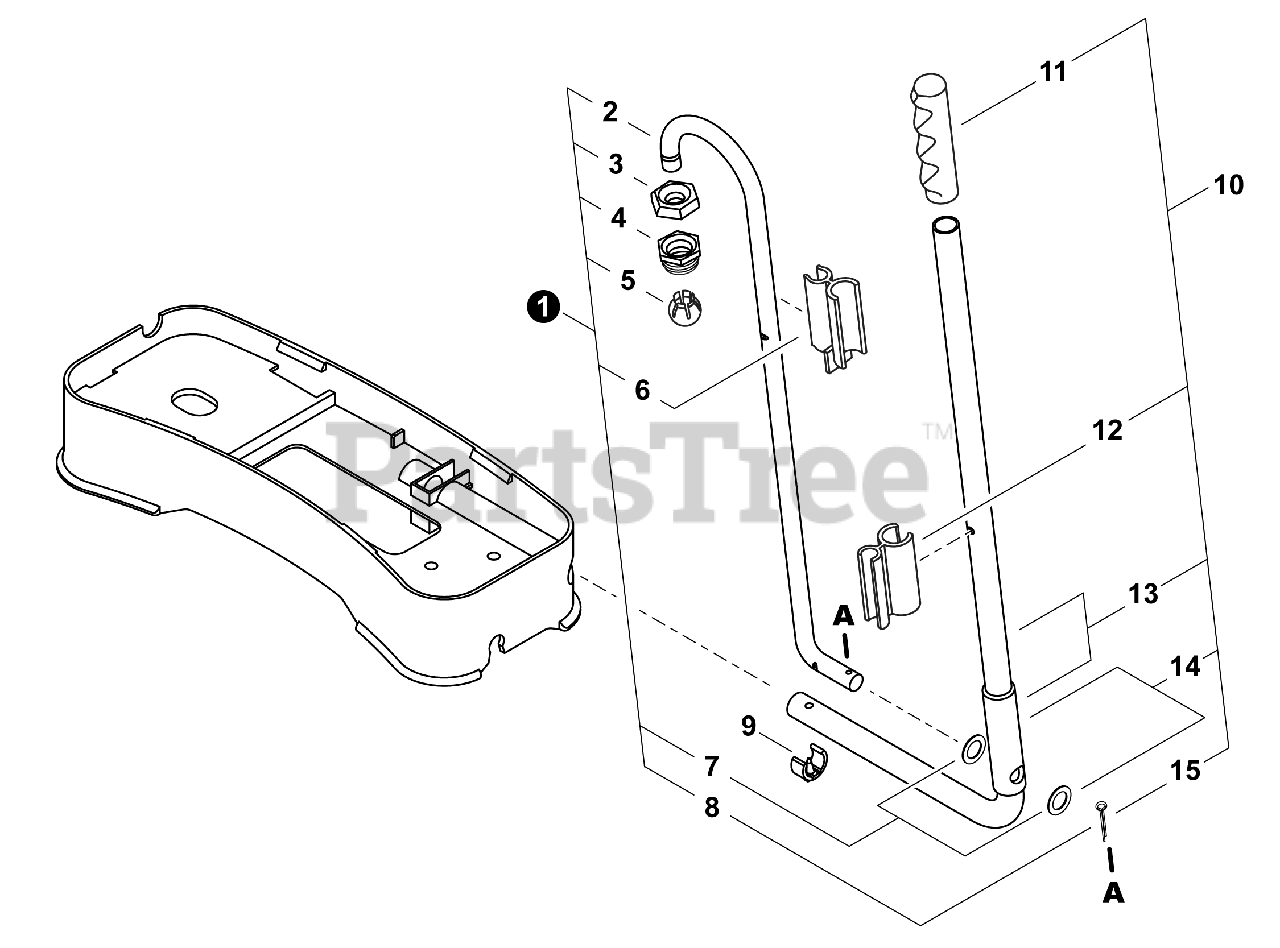

Pump Lever Parts Diagram

  • Title
1

Echo 569019

PUMP ARM KIT

Note: Includes Items 2-8

$

$

Not available

2

ARM, PUMP

$

$

Not available

3

Echo CN011333

BOOT, JOINT

$1.99

$

Usually ships in 2-4 days

0

4

Echo CN011332

NUT, JOINT

$1.49

$

In Stock, Qty 20+

0

5

Echo CN011336

JOINT, BALL

$1.49

$

In Stock, Qty 5

0

6

Echo CN011347

CLIP, PUMP LEVER

$1.49

$

Usually ships in 2-4 days

0

7

Echo CN011348

WASHER

$1.49

$

Usually ships in 2-4 days

0

8

Echo CN011076

PIN, COTTER

$1.49

$

Usually ships in 2-4 days

0

9

Echo 569042

C-CLIP

$30.99

$

Usually ships in 2-4 days

0

10

Echo 569026

LEVER KIT, PUMP

Note: Includes Items 11-15

$29.99

$

Usually ships in 2-4 days

0

11

Echo CN011007

GRIP, LEVER

$1.49

$

Usually ships in 2-4 days

0

12

Echo CN013587

CLIP, METAL WAND
(Superseded to Discontinued)

$

$

Not available

13

LEVER, PUMP

$

$

Not available

14

Echo CN011348

WASHER

$1.49

$

Usually ships in 2-4 days

0

15

Echo CN011076

PIN, COTTER

$1.49

$

Usually ships in 2-4 days

0
