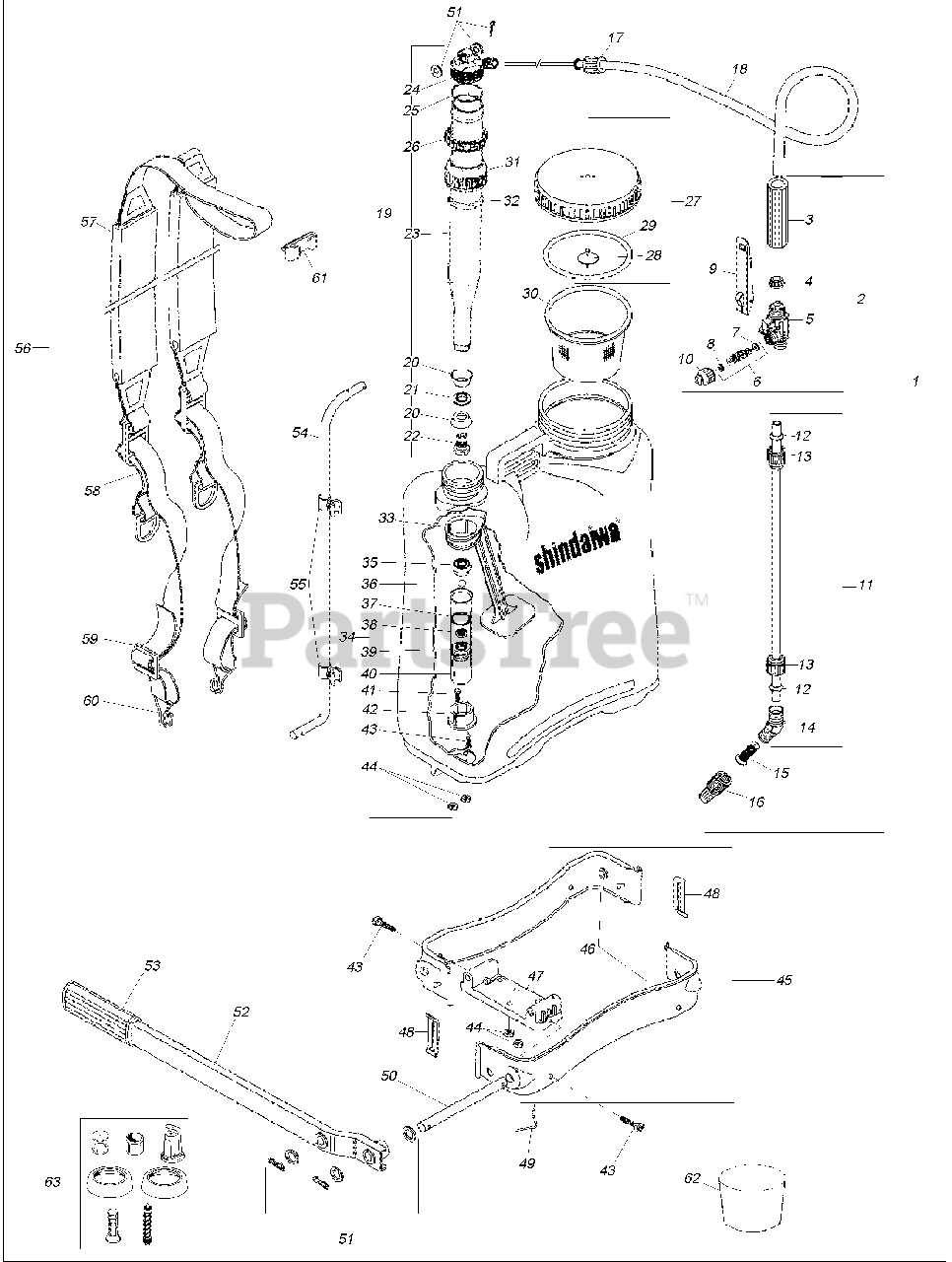

SP 518 - Shindaiwa Manual Sprayer, Backpack Spray Wand Assembly Parts Diagram

Manual Sprayer, Backpack

Spray Wand Assembly Parts Diagram

  • Title
1

Echo 280016

SPRAY WAND ASSY
(Superseded to 915769)

$

$

Not available

2

Echo 279992

TRIGGER VALVE ASSY
(Superseded to 908889)

$23.99

$

In Stock, Qty 6

0

3

Echo 909192

HANDLE, TRIGGER VALVE

$1.99

$

In Stock, only 3 left!

0

4

$0.99

$

In Stock, only 2 left!

0

5

Echo 909283

TRIGGER VALVE BODY

$3.99

$

Usually ships in 2-4 days

0

6

Echo 105239

TRIGGER VALVE NEEDLE ASSY
(Superseded to 1230971)

$8.99

$

Usually ships in 2-4 days

0

7

Echo 300731

SEAL - LOWER

$1.99

$

In Stock, only 2 left!

0

8

Echo 300764

SEAL - UPPER

$1.99

$

Usually ships in 2-4 days

0

9

Echo 263228

TRIGGER
(Superseded to 105247)

$11.99

$

Usually ships in 2-4 days

0

10

Echo 996058

TRIGGER VALVE CAP ASSY

$1.99

$

In Stock, Qty 10

0

11

Echo 285213

Wand Tube/Elbow ASSY

$

$

Not available

12

Echo 909309

CONE PACKING
(Superseded to 635276)

$3.99

$

In Stock, only 2 left!

0

13

Echo 915744

SCREW
(Superseded to 1220969)

$1.99

$

In Stock, Qty 11

0

14

Echo 635276

ELBOW

$3.99

$

In Stock, only 2 left!

0

15

Echo 730366

FILTER, NOZZLE
(Superseded to 592139)

$1.49

$

In Stock, Qty 20+

0

16

Echo 015024

ADJUSTABLE CONE NOZZLE

$3.99

$

Usually ships in 2-4 days

0

17

Echo 942193

NUT - 20X1.5

$1.99

$

In Stock, only 4 left!

0

18

Echo 048116

HOSE/DIP TUBE ASSY

$14.99

$

In Stock, only 2 left!

0

19

Echo 285205

CHAMBER ASSY

$127.99

$

Usually ships in 2-4 days

0

20a

Echo 743880

Piston Cup, Viton(R)

$10.99

$

Usually ships in 2-4 days

0

20b

Echo 942755

Piston Cup, Santoprene (R)

Note: OPTIONAL

$1.99

$

Usually ships in 2-4 days

0

21

Echo 942763

Piston Cup Spacer

$1.99

$

Usually ships in 2-4 days

0

22

Echo 402297

VALVE

$11.99

$

Usually ships in 2-4 days

0

23

Echo 285197

BODY, CHAMBER

$83.99

$

Usually ships in 2-4 days

0

24

Echo 942680

COVER, CHAMBER

$6.49

$

Usually ships in 2-4 days

0

25

Echo 573154

O-RING

$1.99

$

Usually ships in 2-4 days

0

26

Echo 040964

NUT - CHAMBER

$3.49

$

Usually ships in 2-4 days

0

27

Echo 878132

CAP ASSY
(Superseded to 1215303)

$12.99

$

In Stock, only 2 left!

0

28a

Echo 964270

DIAPHRAGM VALVE, VITON(R)

$7.49

$

In Stock, only 1 left!

0

28b

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

Note: OPTIONAL

$2.49

$

In Stock, Qty 5

0

29

Echo 837922

GASKET, CAP

$3.99

$

Usually ships in 2-4 days

0

30

Echo 942920

STRAINER, DEBRIS
(Superseded to 1220919)

$6.49

$

Usually ships in 2-4 days

0

31

Echo 878074

Packing Ring Nut

$4.49

$

Usually ships in 2-4 days

0

32

$1.99

$

Usually ships in 2-4 days

0

33

Echo 300582

AGITATOR

$2.99

$

Usually ships in 2-4 days

0

34

Echo 433334

CYLINDER ASSY

$36.99

$

Usually ships in 2-4 days

0

35

Echo 570788

BALL, LOCK

$1.99

$

In Stock, only 1 left!

0

36

Echo 715474

BALL
(Superseded to 715466)

$1.99

$

In Stock, only 1 left!

0

37

Echo 011668

O-RING

$1.49

$

Usually ships in 2-4 days

0

38

Echo 565960

SEAT, BALL

$3.99

$

In Stock, only 1 left!

0

39

Echo 433359

SEAT, VALVE

$2.99

$

Usually ships in 2-4 days

0

40

Echo 433342

CYLINDER

$19.99

$

Usually ships in 2-4 days

0

41

Echo 351486

BOLT - 6-20 X 1"
(Superseded to Discontinued)

$

$

Not available

42

Echo 433367

BASE, CYLINDER

$4.49

$

Usually ships in 2-4 days

0

43

Echo 211227

SCREW - 14-3/4

$1.99

$

Usually ships in 2-4 days

0

44

Echo 636126

NUT - FLANGE
(Superseded to 743914)

$0.99

$

Usually ships in 2-4 days

0

45

Echo 878140

Split Base ASSY

$36.99

$

Usually ships in 2-4 days

0

46

Echo 878066

Half Base
(Superseded to Discontinued)

$

$

Not available

47

$9.99

$

Usually ships in 2-4 days

0

48

$1.99

$

Usually ships in 2-4 days

0

49

Echo 433888

PIN - LOCKING

$1.99

$

Usually ships in 2-4 days

0

50

Echo 433896

LEVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

51

Echo 942102

HARDWARE PACK

$3.99

$

Usually ships in 2-4 days

0

52

Echo 661363

PUMP LEVER ASSY
(Superseded to 964387)

$13.99

$

Usually ships in 2-4 days

0

53

$2.49

$

In Stock, Qty 5

0

54

Echo 964387

PUMP LEVER CONNECTING ROD
(Superseded to 1198602)

$13.99

$

Usually ships in 2-4 days

0

55

Echo 838003

SPRAY WAND HOLDING CLIP

Note: Includes 2 PER PACKAGE

$3.99

$

Usually ships in 2-4 days

0

56

Echo 263392

STRAP ASSY
(Superseded to 573006)

$43.99

$

Usually ships in 2-4 days

0

57

Echo 568725

PAD, SHOULDER
(Superseded to 838029)

$48.99

$

In Stock, only 1 left!

0

58

Echo 229971

STRAP, BACKPACK

$3.99

$

Usually ships in 2-4 days

0

59

Echo 502757

BUCKLE, STRAP - LOWER

$0.99

$

Usually ships in 2-4 days

0

60

Echo 433474

Lower Strap Hook

$1.99

$

In Stock, only 1 left!

0

61

Echo 214817

CARRYING STRAPS LOCK
(Superseded to 635664)

$1.99

$

Usually ships in 2-4 days

0

62

Echo 963959

CALIBRATED MEASURING CUP

$

$

Currently unavailable

63

Echo 285221

Standard Repair and Nozzle Kit

$

$

Not available
