SP 45 BPE - Shindaiwa Manual Sprayer, Backpack (SN: MSP10001001 - MSP10999999) Pump / Tank Parts Diagram

Manual Sprayer, Backpack

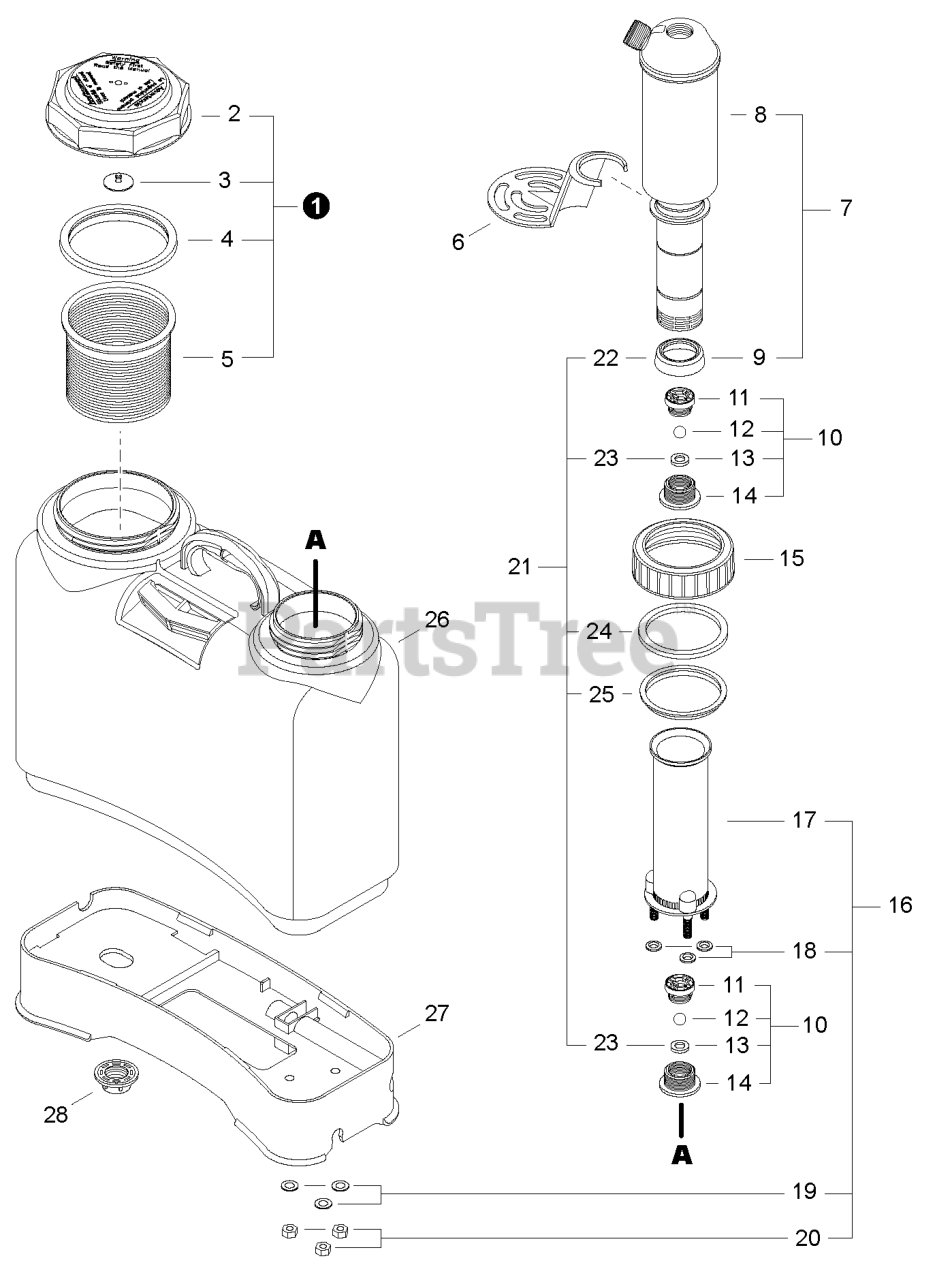

Pump / Tank Parts Diagram

  • Title
1

Echo 99944100473

TANK CAP KIT
(Superseded to 569002)

$14.99

$

In Stock, Qty 7

0

2

------------------

CAP, TANK

$

$

Not available

3

------------------

VALVE, CHECK - CAP

$

$

Not available

4

------------------

GASKET, BASKET

$

$

Not available

5

------------------

BASKET, FILTER

$

$

Not available

6

Echo CN011343

AGITATOR

$3.99

$

Usually ships in 2-4 days

0

7

Echo 569028

PRESSURE CHAMBER KIT

$53.99

$

Usually ships in 2-4 days

0

8

Echo CN011320-045

CHAMBER, PRESSURE

$20.99

$

Usually ships in 2-4 days

0

9

Echo CN011321-1

CUP, PLUNGER
(Superseded to 569021)

$

$

Not available

10

Echo 569023

CHECK VALVE ASSY
(Superseded to 99944100522)

$16.99

$

In Stock, only 2 left!

0

11

Echo CN011323

BODY, VALVE

$1.49

$

Usually ships in 2-4 days

0

12

Echo CN011325

VALVE, BALL

$1.49

$

Usually ships in 2-4 days

0

13

------------------

WASHER

$

$

Not available

14

$1.49

$

Usually ships in 2-4 days

0

15

Echo CN011317-7

RING, LOCKING

$25.99

$

Usually ships in 2-4 days

0

16

Echo 569024

CYLINDER/PISTON KIT

$22.99

$

Usually ships in 2-4 days

0

17

------------------

CYLINDER

$

$

Not available

18

------------------

GASKET, STUD

$

$

Not available

19

Echo CN011330

WASHER

$1.49

$

Usually ships in 2-4 days

0

20

$1.49

$

Usually ships in 2-4 days

0

21

Echo 569021

PUMP GASKET KIT

$

$

Not available

22

Echo CN011321-1

CUP, PLUNGER
(Superseded to 569021)

$

$

Not available

23

------------------

WASHER

$

$

Not available

24

Echo CN011346

WASHER - FELT

$3.99

$

In Stock, only 3 left!

0

25

Echo CN011318-1

GASKET, CHAMBER
(Superseded to CN6-8215)

$40.99

$

Usually ships in 2-4 days

0

26

------------------

TANK, SPRAYER

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

27

Echo CN011315-7

BASE, TANK

$26.99

$

Usually ships in 2-4 days

0

28

Echo CN011319

NUT, TANK

$1.99

$

Usually ships in 2-4 days

0
