SP 43-W (866018) - Briggs & Stratton Brush Cutter (2010) Shaft Group (866014_866018) Parts Diagram

Brush Cutter

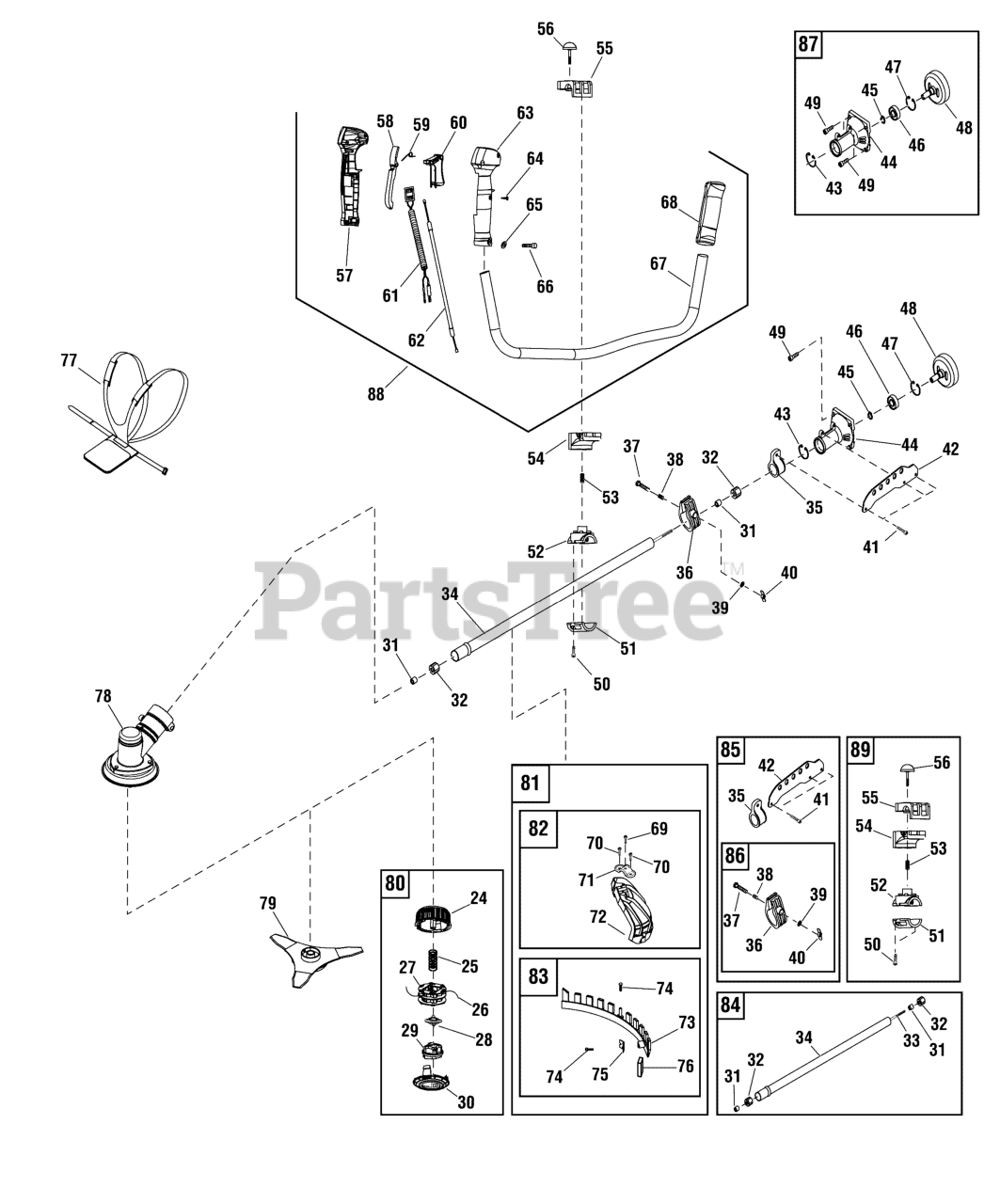

Shaft Group (866014_866018) Parts Diagram

  • Title

24

BOX, Bump Head

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

25

SPRING, Bump Head

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

26

ROPE, Flexible

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

27

SEAT, Flexible Rope

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

28

COVER, Flexible Rope

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

29

BUMP HEAD

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

30

COVER, Bump Head

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

31

Murray 700407

BEARING, Oil

$3.49

$

Usually ships in 2-12 days

0

32

Murray 700406

RUBBER COVER, Bearing Oil

$4.49

$

Usually ships in 2-12 days

0

33

Murray 702429

DRIVE SHAFT

$43.99

$

Usually ships in 2-12 days

0

34

Murray 702427

SHAFT, Straight

$84.99

$

In Stock, only 1 left!

0

35

Murray 700420

RING, Hang

$5.49

$

Usually ships in 2-12 days

0

36

RING, Limit

Note: (Not a serviceable part. Order Kit Ref. No 86)

$

$

Not available

37

BOLT, M6 x 45

Note: (Not a serviceable part. Order Kit Ref. No 86)

$

$

Not available

38

SPRING

Note: (Not a serviceable part. Order Kit Ref. No 86)

$

$

Not available

39

WASHER, Flat, 6

Note: (Not a serviceable part. Order Kit Ref. No 86)

$

$

Not available

40

NUT, M6

Note: (Not a serviceable part. Order Kit Ref. No 86)

$

$

Not available

41

Murray 702108

BOLT, M6 x 16

$2.99

$

Usually ships in 2-12 days

0

42

Murray 700421

HANDLE, Hang

$11.99

$

Usually ships in 2-12 days

0

43

RING, Stop, 37

Note: (Not a serviceable part. Order Kit Ref. No 87)

$

$

Not available

44

CASE, Clutch

Note: (Not a serviceable part. Order Kit Ref. No 87)

$

$

Not available

45

RING, Stop, 15

Note: (Not a serviceable part. Order Kit Ref. No 87)

$

$

Not available

46

BEARING, 6202-2RZ/P6

Note: (Not a serviceable part. Order Kit Ref. No 87)

$

$

Not available

47

RING, Stop, 35

Note: (Not a serviceable part. Order Kit Ref. No 87)

$

$

Not available

48

Murray 701471

CLUTCH DRUM, Complete

$21.99

$

Usually ships in 2-12 days

0

49

BOLT, M6 x 20

Note: (Not a serviceable part. Order Kit Ref. No 87)

$

$

Not available

50

BOLT, M5 x 16

Note: (Not a serviceable part. Order Kit Ref. No 89)

$

$

Not available

51

Murray 700798

BRACKET, Shaft, Lower

$7.99

$

Usually ships in 2-12 days

0

52

Murray 700799

BRACKET, Shaft, Upper

$11.99

$

Usually ships in 2-12 days

0

53

Murray 700839

SPRING

$3.49

$

Usually ships in 2-12 days

0

54

Murray 700800

BRACKET, Handle, Lower

$10.99

$

Usually ships in 2-12 days

0

55

Murray 700801

BRACKET, Handle, Upper

$7.99

$

Usually ships in 2-12 days

0

56

Murray 702441

BOLT, With Knob, Red

$5.49

$

Usually ships in 2-12 days

0

57

Murray 700779

COVER, Handle, Control Switch, LH

$11.99

$

Usually ships in 2-12 days

0

58

Murray 700788

HANDLE, Self Lock

$4.49

$

Usually ships in 2-12 days

0

59

Murray 700787

SPRING, Torsion

$3.49

$

Usually ships in 2-12 days

0

60

Murray 700786

LEVEL, Throttle

$5.49

$

Usually ships in 2-12 days

0

61

Murray 700780

STOP BUTTON, Complete

$8.49

$

Usually ships in 2-12 days

0

62

Murray 700781

CABLE, Complete

$8.99

$

Usually ships in 2-12 days

0

63

Murray 700785

COVER, Handle, Control Switch, RH

$10.99

$

Usually ships in 2-12 days

0

64

Murray 700784

SCREW, Self Tapping, M3.5 x 13

$2.99

$

Usually ships in 2-12 days

0

65

Murray 700783

WASHER, Flat, 5

$2.99

$

Usually ships in 2-12 days

0

66

Murray 700782

SCREW, M5 x 30

$2.99

$

Usually ships in 2-12 days

0

67

Murray 700833

HANDLE

$46.99

$

Usually ships in 2-12 days

0

68

Murray 700834

COVER, Handle

$12.99

$

Usually ships in 2-12 days

0

69

Murray 700792

BOLT, M5 x 10

$2.99

$

Usually ships in 2-12 days

0

70

Murray 700791

BOLT, M5 x 12

$2.99

$

Usually ships in 2-12 days

0

71

Murray 700793

HOLDER, Safety Guard

$5.49

$

Usually ships in 2-12 days

0

72

Murray 700794

SAFTEY GUARD

$37.99

$

Usually ships in 2-12 days

0

73

Murray 700796

SECURING SADDLE

$5.99

$

Usually ships in 2-12 days

0

74

Murray 700795

SCREW, Self Tapping, ST4.2 x 16

$2.99

$

Usually ships in 2-12 days

0

75

Murray 700427

BLADE

$4.99

$

Usually ships in 2-12 days

0

76

Murray 700428

COVER, Blade

$3.49

$

Usually ships in 2-12 days

0

77

Murray 700797

SHOULDER BELT

$39.99

$

Usually ships in 2-12 days

0

78

KIT, Gear Box

Note: (See Gearbox & Blade Service Parts)

$

$

Not available

79

KIT, Blade

Note: (See Gearbox & Blade Service Parts)

$

$

Not available

80

Murray 700437

KIT, Bump Head

Note: (Includes Ref. Nos. 24, 25, 26, 27, 28, 29 & 30)

$30.99

$

Usually ships in 2-12 days

0

81

Murray 701925

KIT, Guard Assembly

Note: (Includes Ref. Nos. 82 & 83)

$57.99

$

Usually ships in 2-12 days

0

82

Murray 701926

KIT, Blade Guard

Note: (Includes Ref. Nos. 69, 70, 71 & 72)

$27.99

$

Usually ships in 2-12 days

0

83

Murray 701927

KIT, Securing Saddle

Note: (Includes Ref. Nos. 73, 74, 75 & 76)

$8.49

$

Usually ships in 2-12 days

0

84

Murray 702426

KIT, Drive Shaft

Note: (Includes Ref. Nos. 31, 32, 33 & 34)

$100.99

$

Usually ships in 2-12 days

0

85

Murray 702075

KIT, Hang Handle

Note: (Includes Ref. Nos. 36, 41, 42 & 86)

$27.99

$

Usually ships in 2-12 days

0

86

Murray 702076

KIT, Limit Ring Assembly

Note: (Includes Ref. Nos. 36, 37, 38, 39 & 40)

$6.49

$

Usually ships in 2-12 days

0

87

Murray 701931

KIT, Clutch Assembly

Note: (Includes Ref. Nos. 43, 44, 45, 46, 47, 48 & 49)

$56.99

$

Usually ships in 2-12 days

0

88

Murray 702077

KIT, Handle Assembly

Note: (Includes Ref. Nos. 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67 & 68)

$119.99

$

Usually ships in 2-12 days

0

89

Murray 702439

KIT, Handle Bracket Assembly

Note: (Includes Ref. Nos. 50, 51, 52, 53, 54, 55 & 56)

$30.99

$

Usually ships in 2-12 days

0
