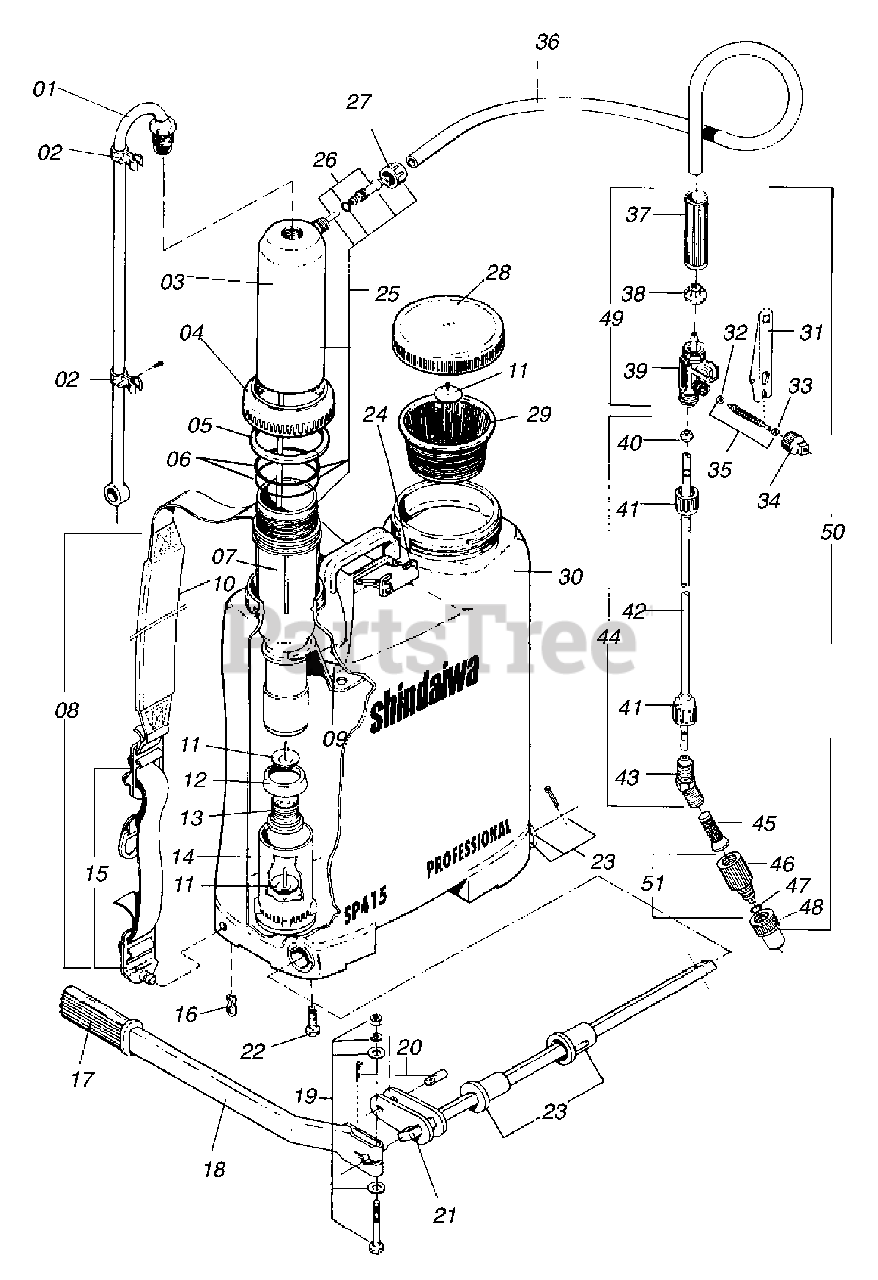

SP 415 - Shindaiwa Manual Sprayer, Backpack General Assembly Before S/N: 198697L3 Parts Diagram

Manual Sprayer, Backpack

General Assembly Before S/N: 198697L3 Parts Diagram

  • Title

01

Echo 214486

PUMPING ROD ASSY

$31.99

$

Usually ships in 2-4 days

0

02

Echo 925800

SPRAY WAND HOLDER SET

$3.99

$

In Stock, only 3 left!

0

03

Echo 942136

COVER, CHAMBER
(Superseded to 81902)

$

$

Not available

04

Echo 120303

HOLDER, GASKET

$2.49

$

Usually ships in 2-4 days

0

05

Echo 552703

GASKET

$2.99

$

In Stock, Qty 14

0

06

Echo 120055

O-RING - 36

$3.99

$

Usually ships in 2-4 days

0

07

Echo 942235

BODY, CHAMBER
(Superseded to 942144)

$27.99

$

In Stock, Qty 16

0

08

Echo 568717

STRAP ASSY
(Superseded to 744417)

Note: Includes ITEMS 10 & 15

$

$

Not available

09

Echo 214619

AGITATOR

$1.99

$

Usually ships in 2-4 days

0

10

Echo 568725

PAD, SHOULDER
(Superseded to 838029)

$48.99

$

In Stock, only 1 left!

0

11

Echo 908905

DIAPHRAGM
(Superseded to 560573)

$2.49

$

In Stock, Qty 5

0

12

Echo 568535

PISTON CUP - 45 X 12

$14.99

$

In Stock, only 3 left!

0

13

Echo 630749

PISTON CUP FASTENER WITH DIAPHRAGM

$4.49

$

Usually ships in 2-4 days

0

14

Echo 630731

CYLINDER KIT

$14.99

$

In Stock, only 1 left!

0

15

Echo 229286

STRAP BUCKLE SET

Note: (supplied with 2 locks)

$

$

Not available

16

Echo 120154

LOCK

$0.99

$

In Stock, only 1 left!

0

17

Echo 002683

GRIP

$2.49

$

In Stock, Qty 5

0

18

Echo 630723

PUMPING LEVER

Note: (supplied with Items 17 and 18)

$25.99

$

Usually ships in 2-4 days

0

19

Echo 925818

BOLT

$6.49

$

Usually ships in 2-4 days

0

20

Echo 925826

PIN KIT

$5.99

$

In Stock, Qty 5

0

21

Echo 214627

PUMPING LEVER SHAFT

$58.99

$

In Stock, only 1 left!

0

22

Echo 336503

SCREW - 14 X 7/8" -- TAPPING

$1.99

$

Usually ships in 2-4 days

0

23

Echo 630756

BUSHING SET

$6.99

$

Usually ships in 2-4 days

0

24

Echo 214817

CARRYING STRAPS LOCK
(Superseded to 635664)

$1.99

$

Usually ships in 2-4 days

0

25

Echo 942219

CHAMBER ASSY
(Superseded to 81902)

$

$

Not available

26

Echo 942359

DIP TUBE ASSY
(Superseded to 071308)

$14.99

$

In Stock, only 2 left!

0

27

Echo 942193

NUT - 20X1.5

$1.99

$

In Stock, only 4 left!

0

28

Echo 654921

CAP ASSY
(Superseded to 878132)

$12.99

$

In Stock, only 2 left!

0

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

$2.49

$

In Stock, Qty 5

0

29

Echo 942920

STRAINER, DEBRIS
(Superseded to 1220919)

$6.49

$

Usually ships in 2-4 days

0

30

Echo 568634

TANK WITH CAP
(Superseded to Discontinued)

$

$

Not available

Echo 568642

TANK

$

$

Not available

31

Echo 568972

TRIGGER
(Superseded to 1220951)

$11.99

$

Usually ships in 2-4 days

0

32

Echo 352577

SEAL - LOWER

$

$

Currently unavailable

33

Echo 351585

SEAL - UPPER -- 50X96X35
(Superseded to 300764)

$1.99

$

Usually ships in 2-4 days

0

34

Echo 105254

CAP, TRIGGER VALVE
(Superseded to 996058)

$1.99

$

In Stock, Qty 10

0

35

Echo 568790

TRIGGER VALVE NEEDLE ASSY
(Superseded to 105239)

Note: Includes ITEMS 32 & 33

$8.99

$

Usually ships in 2-4 days

0

36

Echo 530576

HOSE, 5.6" X 1350
(Superseded to 048116)

$14.99

$

In Stock, only 2 left!

0

37

Echo 909192

HANDLE, TRIGGER VALVE

$1.99

$

In Stock, only 3 left!

0

38

Echo 920470

LOCK

$0.99

$

In Stock, only 2 left!

0

39

Echo 909283

BODY, TRIGGER VALVE

$3.99

$

Usually ships in 2-4 days

0

40

Echo 909309

CONE PACKING
(Superseded to 635276)

$3.99

$

In Stock, only 2 left!

0

41

Echo 915744

SCREW
(Superseded to 1220969)

$1.99

$

In Stock, Qty 11

0

42

Echo 336263

SPRAY WAND TUBE
(Superseded to 568873)

$

$

Not available

43

Echo 560649

SPRAY WAND NOZZLE ELBOW
(Superseded to 635276)

$3.99

$

In Stock, only 2 left!

0

44

Echo 568873

SPRAY TUBE ASSY

Note: Includes ITEMS 40, 41,42 [2], & 43

$

$

Not available

45

Echo 730366

FILTER, NOZZLE
(Superseded to 592139)

$1.49

$

In Stock, Qty 20+

0

46

Echo 009456

NOZZLE BODY
(Superseded to 015024)

$3.99

$

Usually ships in 2-4 days

0

48

Echo 009464

NOZZLE CAP - RED
(Superseded to 015024)

$3.99

$

Usually ships in 2-4 days

0

49

Echo 568782

TRIGGER VALVE ASSY
(Superseded to 908889)

Note: Includes ITEMS 31, 34, 35, 37, 38 & 39

$23.99

$

In Stock, Qty 7

0

50

Echo 568774

SPRAY WAND ASSY

Note: Includes ITEMS 44 & 49

$35.99

$

In Stock, only 2 left!

0

51

Echo 015024

ADJUSTABLE CONE NOZZLE

Note: (w/ Items 46, 47 and 48)

$3.99

$

Usually ships in 2-4 days

0
