SP 33 HW (12AE76M8897) - Columbia 33" Walk-Behind Mower (2017) Electrical Parts Diagram

33" Walk-Behind Mower

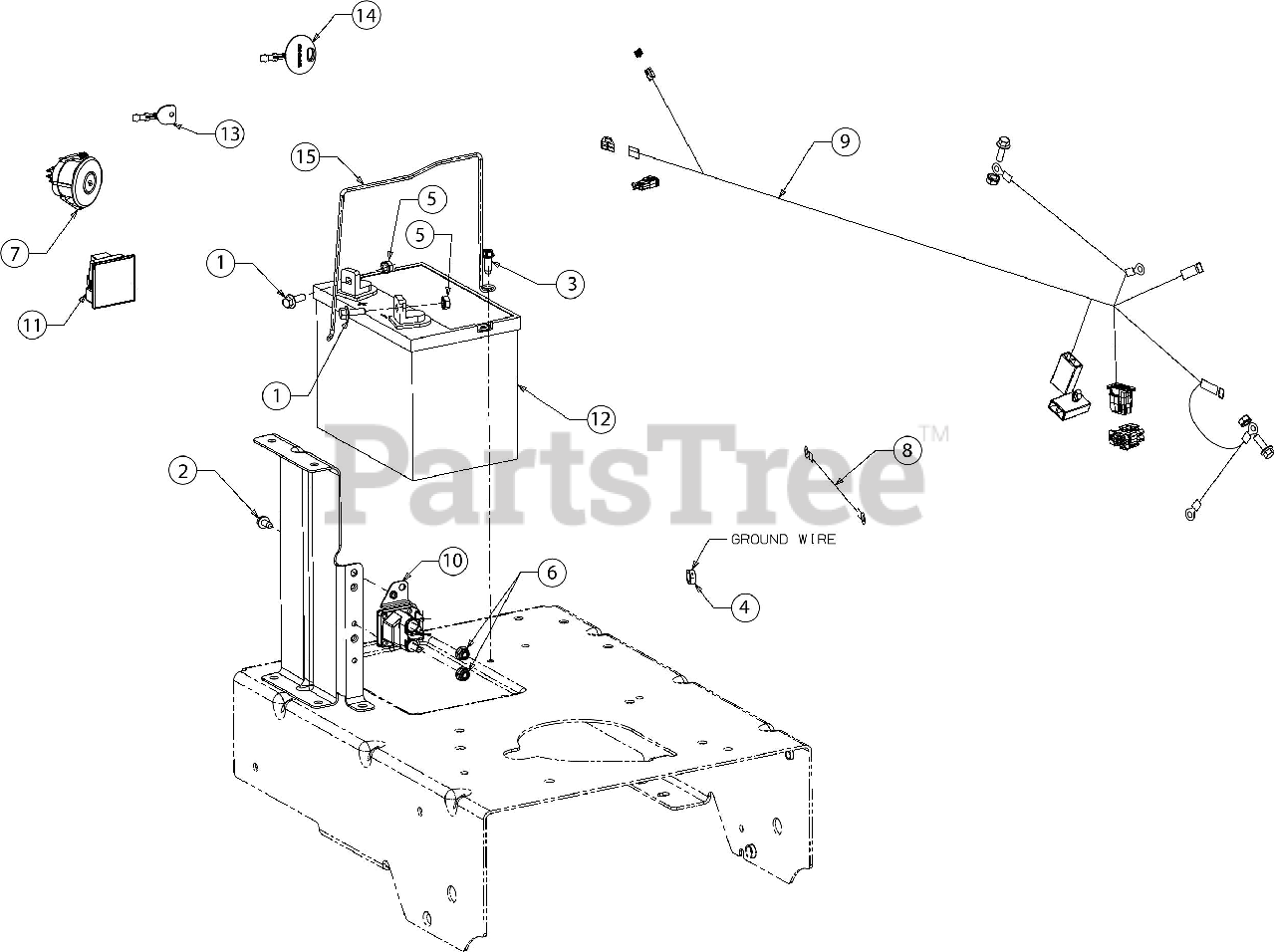

Electrical Parts Diagram

  • Title

1

MTD 710-04666

SCREW 1/4-20 X .75 GR5

$6.99

$

In Stock, only 3 left!

0

2

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

SCREW 1/4-20 X .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-04228

KEY SWITCH 3 POSITION

$39.99

$

In Stock, Qty 20+

0

8

MTD 725-04478

STARTER HARNESS

$19.99

$

Usually ships in 3-6 days

0

9

MTD 925-05266

HARNESS

$80.99

$

Usually ships in 3-6 days

0

9

MTD 710-04666

SCREW 1/4-20 X .75 GR5

Note: (Not Shown)

$6.99

$

In Stock, only 3 left!

0

9

MTD 712-0271

SEMS NUT 1/4-20

Note: (Not Shown)

$4.49

$

In Stock, Qty 19

0

10

MTD 725-06153

SOLENOID-12V 100A
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

11

MTD 925-06170A

HOUR METER
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

12

MTD 925-1707D

BATTERY

$

$

Not available

13

MTD 925-1745A

IGNITION KEY

$17.99

$

In Stock, Qty 20+

0

14

MTD 925-2054A

IGNITION KEY
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

15

MTD 747-04657

BATTERY HOLD DOWN STRAP

$12.99

$

In Stock, only 2 left!

0
