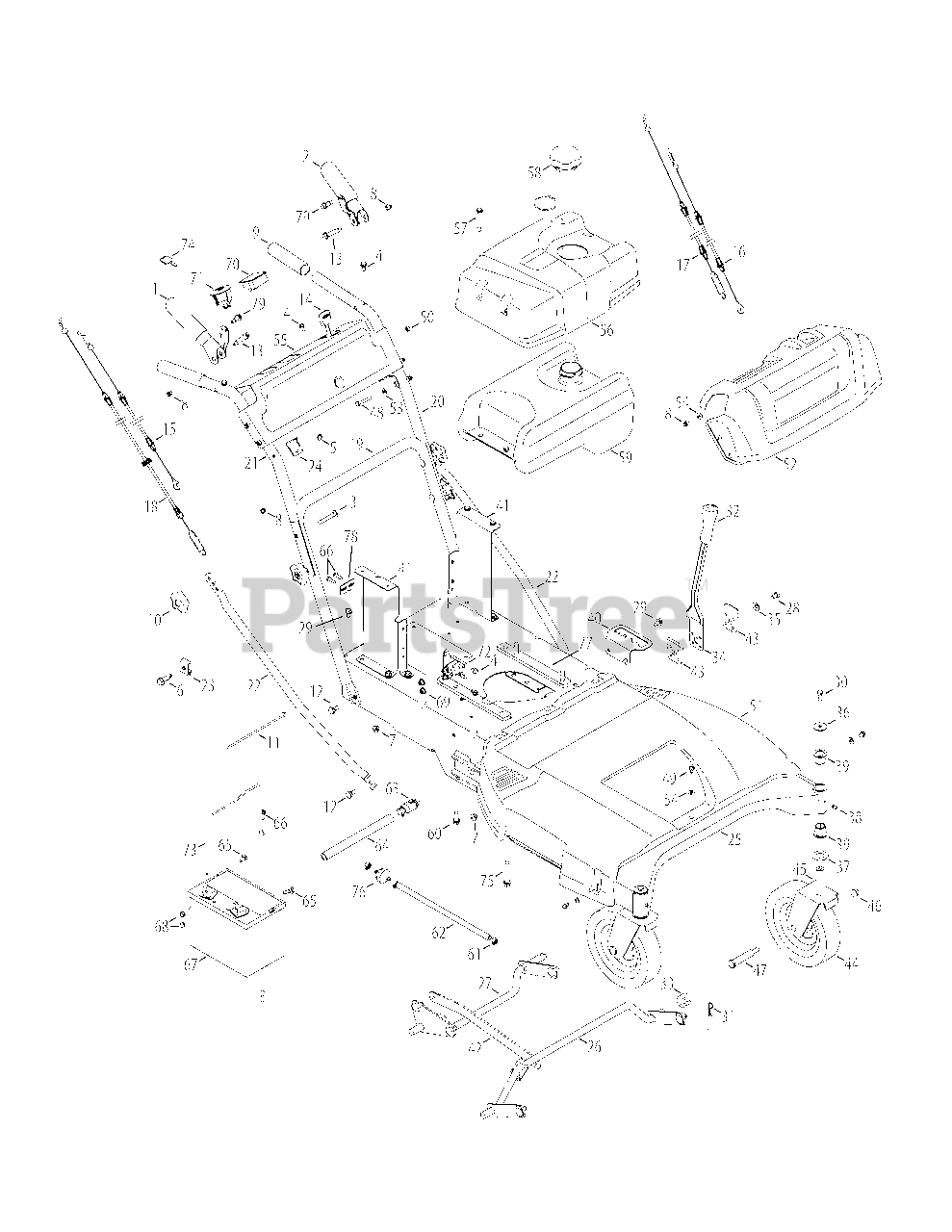

SP 33 HW (12AE76JU897) - Columbia 33" Walk-Behind Mower (2015) Dash Parts Diagram

33" Walk-Behind Mower

Dash Parts Diagram

  • Title

1

MTD 687-02426A

RH Lever Assembly Bracket
(Superseded to 687P02426C)

$28.99

$

In Stock, only 1 left!

0

2

MTD 687-02427A

LH Lever Assembly Bracket
(Superseded to 687P02427C)

$28.99

$

In Stock, only 1 left!

0

3

MTD 710-0572

Screw, Carriage, 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

4

MTD 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

6

MTD 710-1237

Screw, #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

7

MTD 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 912-0442

Lock Nut Cap, 1/4-20
(Superseded to 712-0442)

$

$

Not available

9

MTD 720-0274

Grip, 1.0 ID x 5.0 LG

$11.99

$

In Stock, only 1 left!

0

10

MTD 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

12

MTD 938-0140

Screw, Shoulder, .435 x .178-5/16 x .56
(Superseded to 738-0140)

$

$

Not available

13

MTD 938-1226

Screw, Shoulder, .375 x 1.355 x 1/4-20

$7.99

$

In Stock, only 1 left!

0

14

MTD 946-04604

Throttle/Choke Cable, 38.0 x 1.1 EXT

$42.99

$

Usually ships in 3-6 days

0

15

MTD 946-05076

RH Trans Brake Cable
(Superseded to 946-05076A)

$36.99

$

In Stock, Qty 5

0

16

MTD 946-05077

LH Trans Brake Cable
(Superseded to 946-05077A)

$36.99

$

In Stock, Qty 9

0

17

MTD 946-05149

Wheel Clutch Cable

$55.99

$

In Stock, Qty 6

0

18

MTD 946-05073

Deck Clutch Cable

$39.99

$

In Stock, only 1 left!

0

19

MTD 749-04330-0637

Lower Handle

$84.99

$

In Stock, only 1 left!

0

20

MTD 649-05013-0637

Upper LH Handle
(Superseded to 649-05013B-0637)

$72.99

$

Usually ships in 3-6 days

0

21

MTD 649-05014-0637

Upper RH Handle
(Superseded to 649-05014B-0637)

$72.99

$

In Stock, only 1 left!

0

22

MTD 749-04333-0637

Adjustable Handle Brace

$46.99

$

Usually ships in 3-6 days

0

23

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

24

MTD 787-01490A-0637

RH Cable Mount Bracket

$10.99

$

Usually ships in 3-6 days

0

24

MTD 787-01491A-0637

LH Cable Mount Bracket

$19.99

$

Usually ships in 3-6 days

0

25

MTD 687-02591A-0606

Frame Assembly
(Superseded to 687-02591B-0606)

$437.99

$

Usually ships in 3-6 days

0

26

MTD 687-02265-0637

Front Deck Lift Assembly

$59.99

$

Usually ships in 3-6 days

0

27

MTD 687-02419-0637

Rear Deck Lift Assembly

$68.99

$

In Stock, only 1 left!

0

28

MTD 710-04312

Hex Screw, 5/16-18 x .50

$7.49

$

In Stock, only 1 left!

0

29

MTD 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

31

MTD 914-0145

Click Pin, .092 x 1.64 LG
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

32

MTD 720-0311

Grip Handle, 1/2

$15.99

$

In Stock, only 2 left!

0

33

MTD 731-05791

Plastic Spacer, .63 ID x .75 LG

$5.99

$

In Stock, only 2 left!

0

34

MTD 732-04418B

Deck Height Lever
(Superseded to 732-04418C)

$45.99

$

Usually ships in 3-6 days

0

35

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0343

Washer, Flat, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

37

MTD 936-0351

Washer, Flat, .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

38

MTD 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

39

MTD 741-0660A

Flange Bearing, .760 x .941 x 1.0

$3.49

$

In Stock, Qty 10

0

40

MTD 787-01496-0606

Height Adjustment Bracket

$17.99

$

Usually ships in 3-6 days

0

41

MTD 787-01507B-0606

Fuel Tank Mount Bracket

$16.99

$

Usually ships in 3-6 days

0

42

MTD 787-01510-0637

Link Pivot Bracket

$39.99

$

Usually ships in 3-6 days

0

43

MTD 787-01521-0637

Lever Pivot Bracket
(Superseded to 787-06323-0637)

$9.49

$

Usually ships in 3-6 days

0

44

MTD 734-04243

Caster, Wheel, 8 x 1.75

$57.99

$

In Stock, only 1 left!

0

44

MTD 941-0706

Bearing, Flange w/ftg

$8.49

$

In Stock, Qty 6

0

45

MTD 687-02263-0606

Wheel Caster Bracket

$83.99

$

Usually ships in 3-6 days

0

46

MTD 712-04065

Nut, Flangelock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

47

MTD 738-04216A

Bolt, Shoulder, .625 x 2.515 x 3/8-16

$8.49

$

In Stock, Qty 9

0

48

MTD 710-0136

Hex Screw, 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

49

MTD 710-0896

Screw, 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

50

MTD 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

51

MTD 931-05684

Belt Cover

$121.99

$

Usually ships in 3-6 days

0

52

MTD 731-05937A

Handle Panel, Black

$49.99

$

Usually ships in 3-6 days

0

53

MTD 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

54

MTD 936-0463

Washer, Flat, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

55

MTD 787-01548-0637

Hour Meter and Key Handle Panel

$102.99

$

In Stock, only 2 left!

0

56

MTD 931-06935A

Fuel Tank Cover

$52.99

$

Usually ships in 3-6 days

0

57

MTD 738-04282

Screw, Shoulder, 1/4-20 x .32 x 1.8

$4.49

$

Usually ships in 3-6 days

0

58

MTD 951-12182

Fuel Cap

$36.99

$

In Stock, only 1 left!

0

59

MTD 951-04322

Fuel Tank
(Superseded to 951-04322A)

$153.99

$

Usually ships in 3-6 days

0

60

MTD 710-1007

Screw, 3/8-16 x 1.250

$6.49

$

In Stock, only 1 left!

0

61

MTD 726-0205

Hose Clamp, .490 DIA.

$3.99

$

In Stock, Qty 18

0

62

MTD 751-10349-13

Fuel Hose, Low Permeation, 1/4

$17.99

$

In Stock, only 3 left!

0

63

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

64

MTD 751-3141-14

Extension Hose

$11.99

$

In Stock, Qty 8

0

65

MTD 710-04666

Hex Head Flange, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

66

MTD 710-0642

Screw, 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

67

MTD 925-1707D

Battery, 155 CCA WET

$

$

Not available

68

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

69

MTD 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

70

MTD 925-06170

Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

71

MTD 925-04228

Key Switch

$39.99

$

In Stock, Qty 20+

0

72

MTD 725-06153

Solenoid, 12V, 100 Amp, 4 term
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 9

0

73

MTD 747-04657

Battery Hold Down Strap

$12.99

$

In Stock, only 2 left!

0

74

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

75

MTD 710-05283

Screw, 3/8-16 x 2.25

$6.49

$

Usually ships in 3-6 days

0

76

MTD BS-298090S

Fuel Filter

$

$

Not available

77

MTD 787-01932-0606

Engine Mounting Plate

$35.99

$

Usually ships in 3-6 days

0

78

MTD 787-02009

PLate, Shift

$9.99

$

Usually ships in 3-6 days

0

79

MTD 738-04425

Screw, Shoulder, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

MTD 925-05266

Wiring Harness

Note: (Not Shown)

$80.99

$

Usually ships in 3-6 days

0

MTD 725-04478

Starter Wire

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

MTD 712-0266A

Nut, Jamlock, 3/8-16

Note: (Not Shown)

$3.99

$

In Stock, Qty 11

0

MTD 751-12089-28

Vent Hose, 3/16

Note: (Not Shown)

$8.99

$

In Stock, only 1 left!

0
