SP 28 S (12ABW32G897) - Columbia 28" Walk-Behind Mower (2016) Grassbag Parts Diagram

28" Walk-Behind Mower

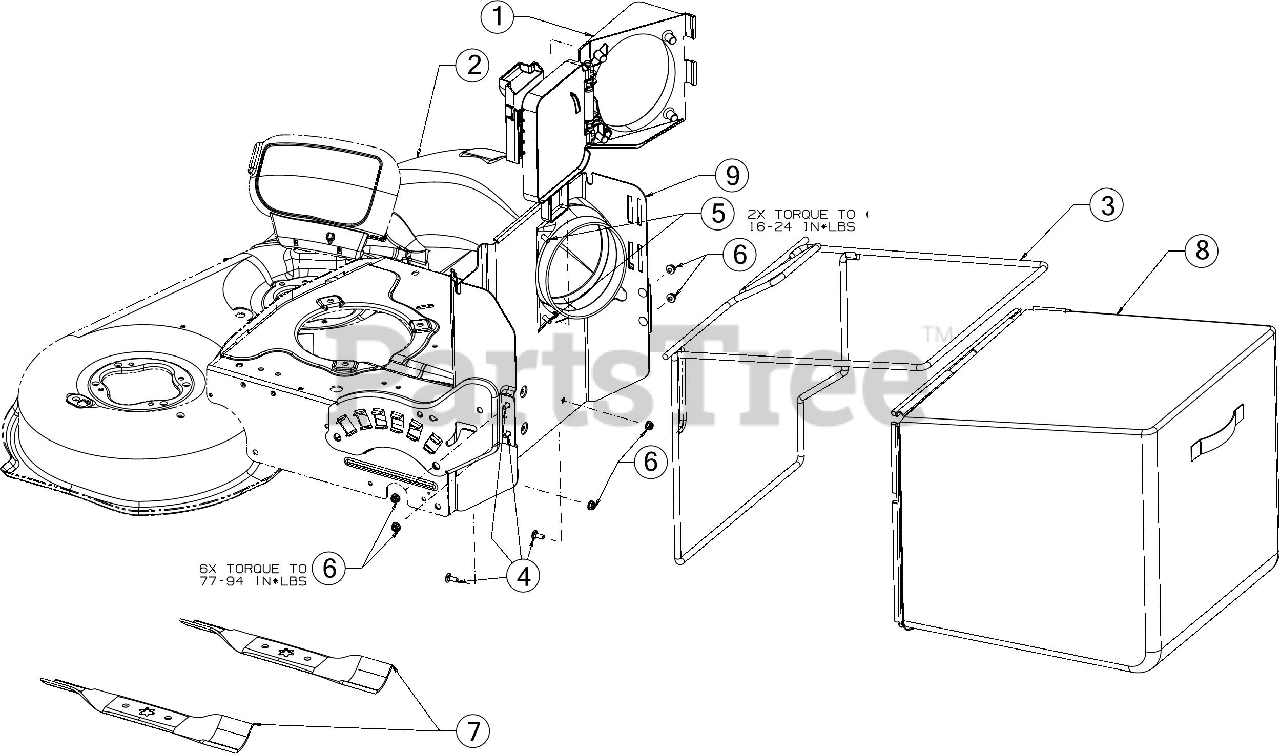

Grassbag Parts Diagram

  • Title

1

MTD 631-05335B

GRASSBAG DOOR ASSEMBLY

$53.99

$

Usually ships in 3-6 days

0

1

MTD 726-04009

PUSH CAP
(Superseded to 726-04009A)

Note: (NOT SHOWN)

$7.49

$

In Stock, only 2 left!

0

1

MTD 747-06290B

CHUTE HINGE PIN

Note: (NOT SHOWN)

$4.49

$

In Stock, Qty 20+

0

1

MTD 750-0885A

SPACER

Note: (NOT SHOWN)

$11.99

$

Usually ships in 3-6 days

0

2

MTD 931-05337

CHUTE ASSEMBLY

$135.99

$

Usually ships in 3-6 days

0

2

MTD 712-04064

FLANGE LOCK NUT

Note: (NOT SHOWN)

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0751

SCREW 1/4-20 x .620 GR5

Note: (NOT SHOWN)

$3.99

$

In Stock, Qty 20+

0

2

MTD 736-0173

FLAT WASHER .28 ID x .74 OD x .063

Note: (NOT SHOWN)

$4.49

$

In Stock, Qty 20+

0

3

MTD 647-05065-0637

GRASSBAG FRAME

$81.99

$

In Stock, only 1 left!

0

4

MTD 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 942-05235

BLADE (HI LIFT) (14.2)

$28.99

$

In Stock, only 2 left!

0

8

MTD 964-05060A

GRASSBAG - PLAIN 28" MOWER
(Superseded to 964-05060B)

$74.99

$

In Stock, only 1 left!

0

9

MTD 787-03589

GRASSBAG SUPPORT BRACKET
(Superseded to 787-03589-0637)

Variations

MTD 787-03589-0637

GRASSBAG SUPPORT B - POWDER BLACK (0637)

$112.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0
