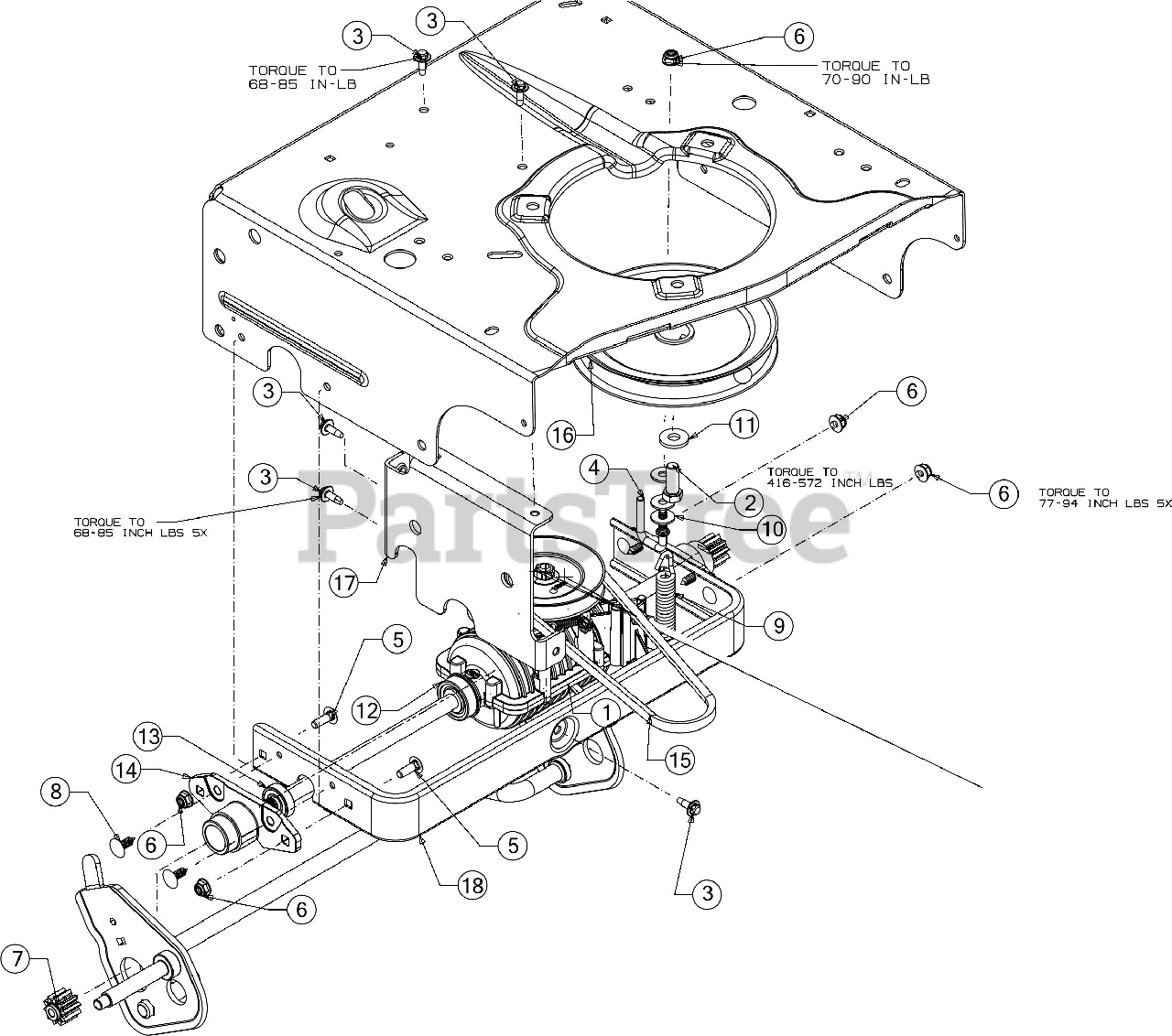

SP 28 S (12ABW32G897) - Columbia 28" Walk-Behind Mower (2016) Drive Parts Diagram

28" Walk-Behind Mower

Drive Parts Diagram

  • Title
1

MTD 618-07163

TRANSMISSION
(Superseded to 918-07163)

$374.99

$

In Stock, only 1 left!

0

2

MTD 710-0591

SCREW 3/8-24 x 1.00 GR5

$4.49

$

Usually ships in 3-6 days

0

3

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

4

MTD 710-06475

SPRING GUIDE EYE BOLT-1/4 x 20

$11.99

$

Usually ships in 3-6 days

0

5

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 917-04852

SPUR GEAR 10T

$4.99

$

In Stock, only 2 left!

0

8

MTD 726-3046

RATCHET CLIP .250

$3.99

$

In Stock, Qty 16

0

9

MTD 732-0716D

EXTENSION SPRING

$13.99

$

Usually ships in 3-6 days

0

10

MTD 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

12

MTD 741-04362

ROLLER BEARING

$30.99

$

Usually ships in 3-6 days

0

13

MTD 741-04430A

BALL BEARING

$6.49

$

In Stock, only 2 left!

0

14

MTD 748-05111

DRIVE BEARING
(Superseded to 948-05111A)

$25.99

$

Usually ships in 3-6 days

0

15

MTD 754-05090

BELT 3/8 x 24.68"
(Superseded to 954-05090)

$27.99

$

In Stock, only 1 left!

0

16

MTD 756-05201

ENGINE PULLEY

$98.99

$

Usually ships in 3-6 days

0

17

MTD 787-03454A

TRANSMISSION SUPPORT BRACKET

Variations

MTD 787-03454A-0606

BRACKET-TRANSMISSI - MAJESTIC ORANGE (0606)

$25.99

$

In Stock, only 2 left!

0

MTD 787-03454A-0638

BRACKET-TRANSMISSI - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 787-03454A-0691

BRACKET-TRANSMISSI - BLACK JACK (0691)

$28.99

$

Usually ships in 3-6 days

0

MTD 787-03454A-4021

BRACKET-TRANSMISSI - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

MTD 787-03588

AXLE BEARING SUPPORT PLATE

Variations

MTD 787-03588-0606

AXLE BEARING PLATE - MAJESTIC ORANGE (0606)

$21.99

$

Usually ships in 3-6 days

0

MTD 787-03588-0638

AXLE BEARING PLATE - MTD/TROY-BILT RED (0638)

$26.99

$

Usually ships in 3-6 days

0

MTD 787-03588-4021

AXLE BEARING PLATE - CUB YELLOW 2 (4021)

$24.99

$

Usually ships in 3-6 days

0

MTD 787-03588-4028

AXLE BEARING PLATE - SEARS YELLOW (4028)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0
