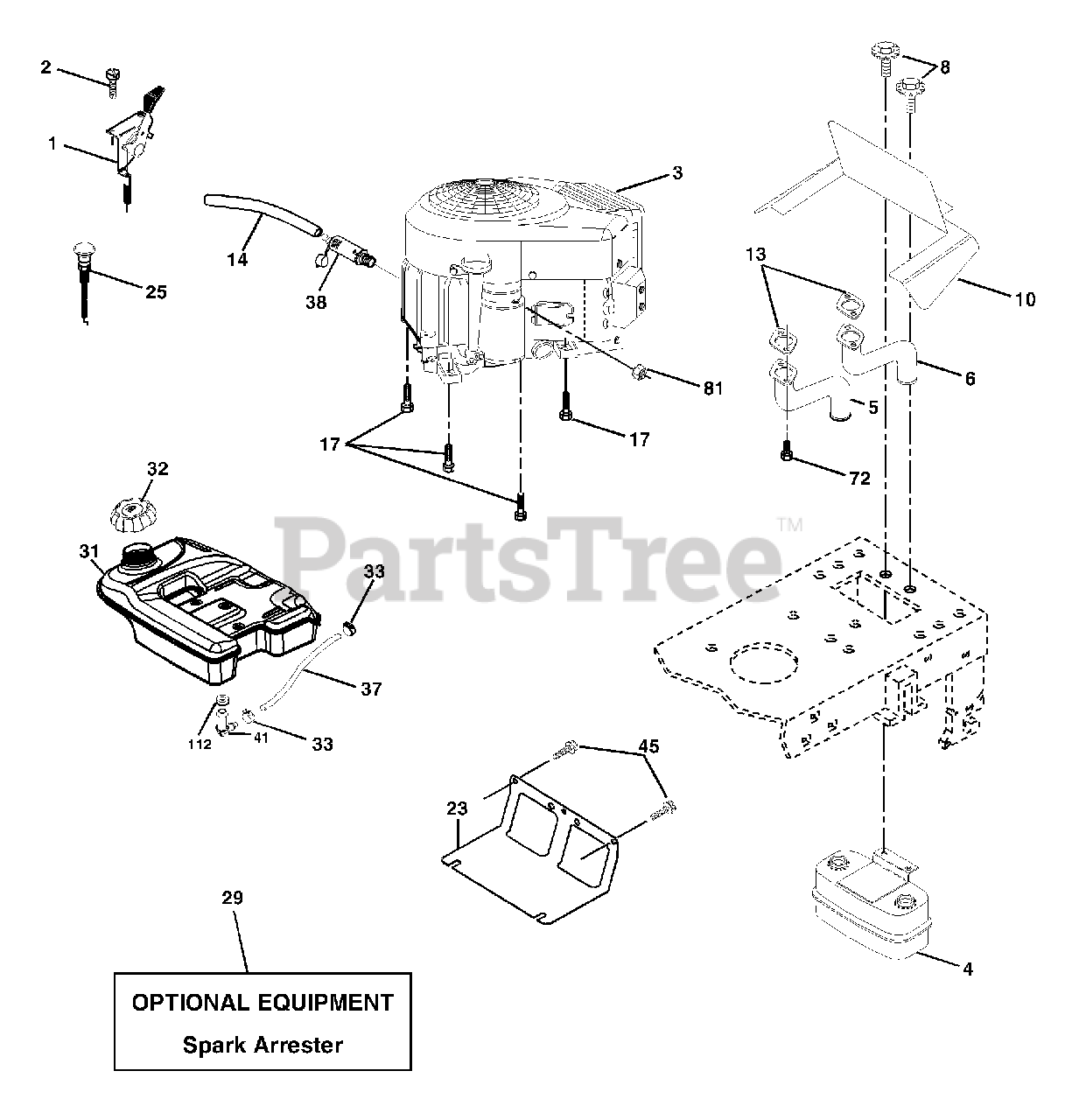

SP 22H42ST B - Statesman Lawn Tractor (2004) (Southern States) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Electrolux/AYP 170771

Control, Throttle
(Superseded to 532170771)

$

$

Not available

2

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

3

Engine Briggs Model 407577

Note: (Order Parts from Engine Mfg.)

$

$

Not available

4

Electrolux/AYP 149723

Muffler, Asm. Twin Lo-Tone
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 160589

Pipe Exhaust Intek 20 RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 159955

Pipe Exhaust Intek 20 LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 171877

Bolt 5/16-18 unc x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, only 4 left!

0

10

Electrolux/AYP 162797

Shield Browing B&S Intek II
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 165391

Muffler Gasket
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 148456

Tube Oil Drain
(Superseded to 532148456)

$6.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 17060624

Screw 3/8-16 x 1-1/2
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 169837

Shield, Browning/Debris Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

25

$

$

Not available

29

Electrolux/AYP 137180

Arrester, Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 179022

Tank, Fuel
(Superseded to 532179022)

$

$

Not available

32

Electrolux/AYP 179124X428

Cap Gauge, Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp, Hose Blk
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 8543R

Line, Fuel
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 139277

Stem Tank Fuel
(Superseded to 532139277)

$8.99

$

In Stock, Qty 8

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

72

Electrolux/AYP 183906

Screw Socket Head 5/16-18 x 1
(Superseded to 532183906)

$6.49

$

Usually ships in 3-10 days

0

81

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

112

Electrolux/AYP 3645J

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0
