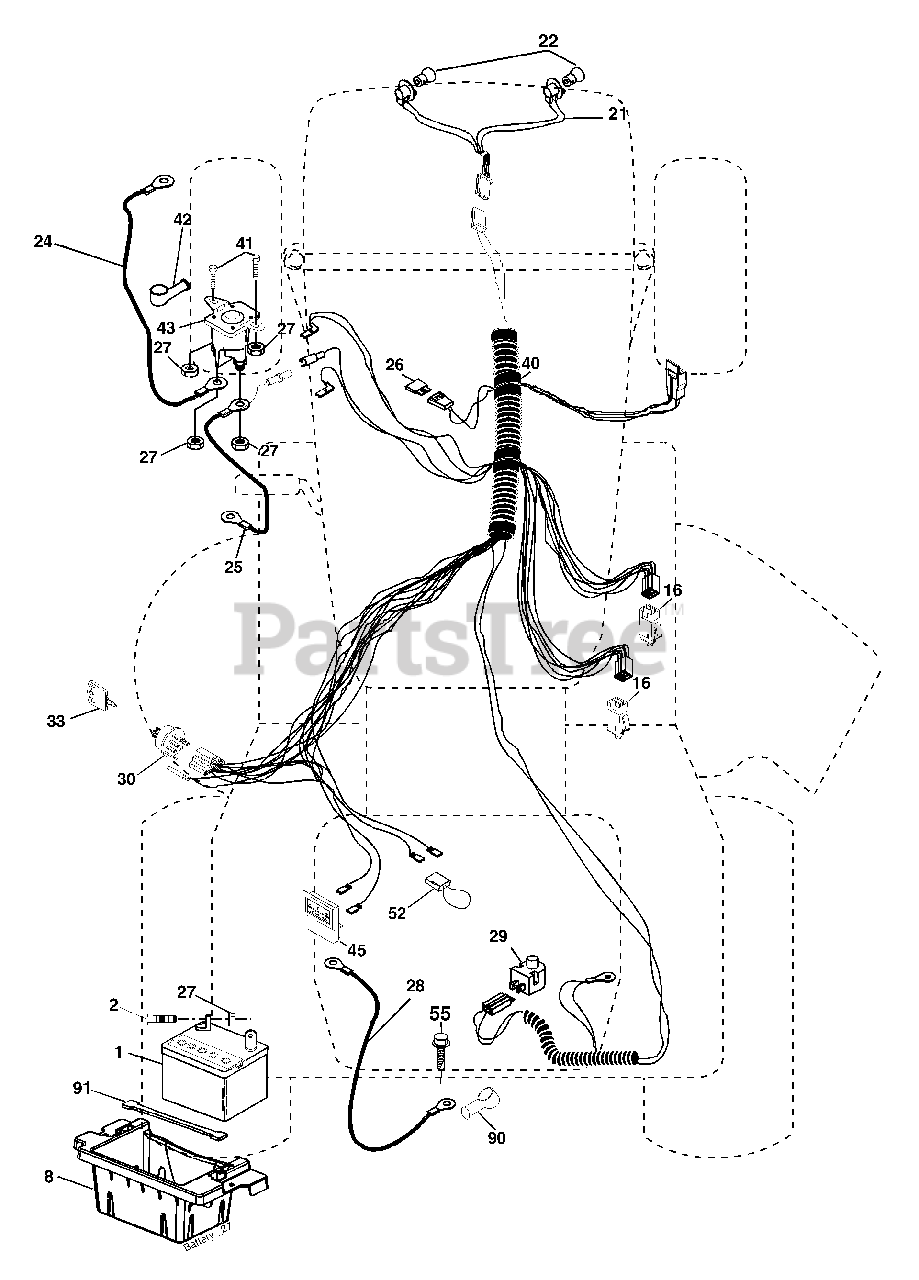

SP 22H42ST B - Statesman Lawn Tractor (2004) (Southern States) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Electrolux/AYP 144927

Battery
(Superseded to 532144927)

$

$

Not available

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 186491

Box Battery
(Superseded to 532186491)

$

$

Not available

16

Electrolux/AYP 176138

Switch Interlock
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 183759

Harness Socket Light
(Superseded to 532183759)

$47.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 4152J

Bulb, Light # 1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

Cable Battery
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146148

Cable Battery 6 Ga. Red w/16 wire
(Superseded to 532146148)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 145491

Cable Ground 21" Blk 6 Ga.
(Superseded to 532145491)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 121305X

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 175566

Switch Ign
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 140401

Key Ign Molded Generic
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

40

Electrolux/AYP 179720

Harness Ign
(Superseded to 532179720)

$120.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

Bolt Fin Hex 1/4-20 unc x 1/2
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

45

Electrolux/AYP 121433X

Ammeter Rectangular
(Superseded to 532121433)

$

$

Not available

52

Electrolux/AYP 141940

Protection Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 180449

Cover Terminal

$2.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 190270

Strap Battery Mount Front
(Superseded to 532190270)

$9.99

$

In Stock, Qty 13
