SP 2265FC (7800263) - Snapper 22" Walk-Behind Mower, 6.5hp Handles & Controls (Self-Propelled) Parts Diagram

22" Walk-Behind Mower, 6.5hp

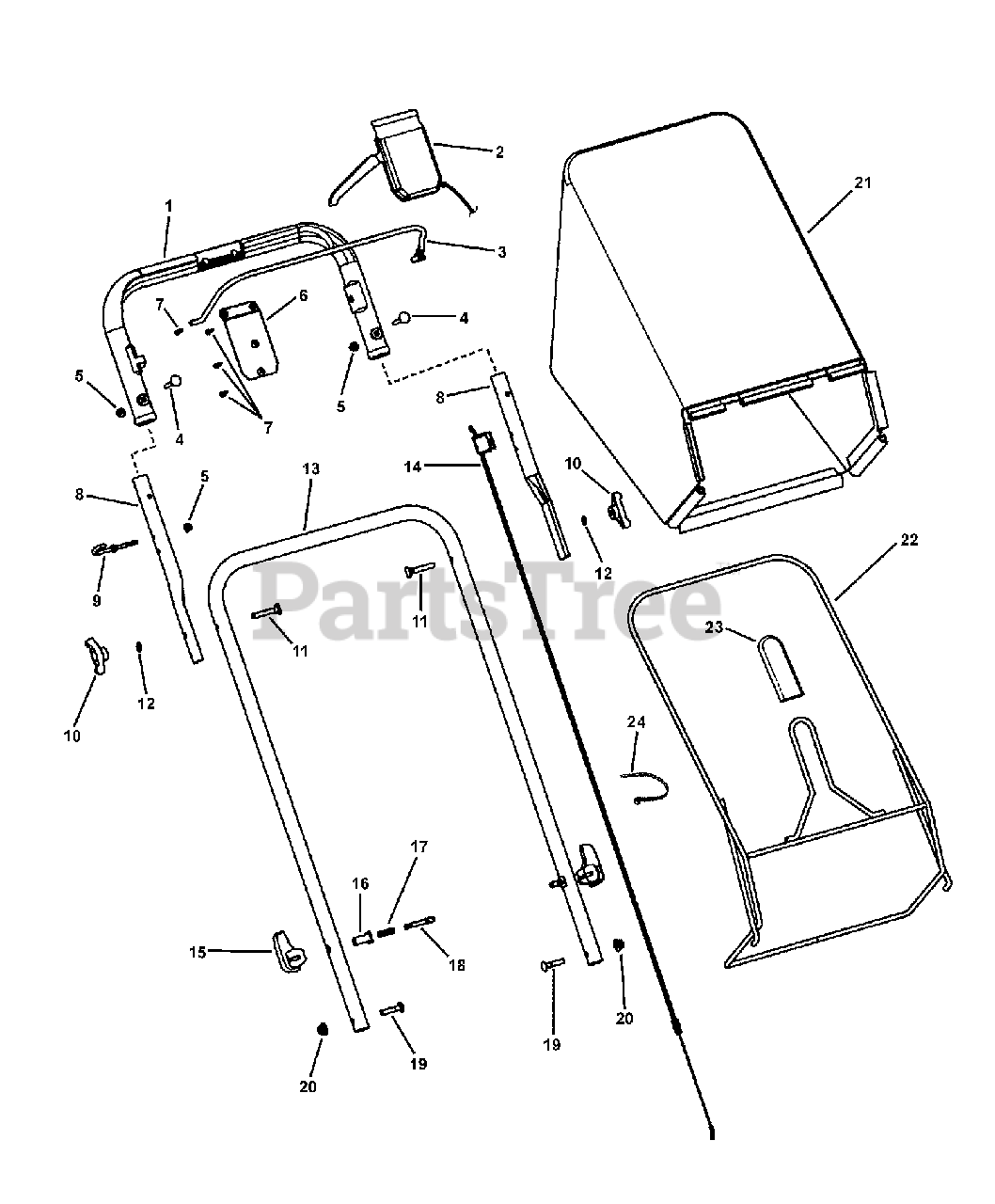

Handles & Controls (Self-Propelled) Parts Diagram

  • Title

1

Snapper 7101312

UPPER HANDLE, Plastic, WBM
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

2

Snapper 7101417

ASSY, Control Head, 22" WBM, Single Speed
(Superseded to 7101417YP)

Note: (used on SP2265FC (incl.Clutch Lever, Box, & Drive Cable)

$41.99

$

Usually ships in 2-12 days

0

3

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

4

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck, GR 2, YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 2860694

NUT, 1/4-20, Hex Flange (Nyloc) YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7300670A

PLATE, Control Panel
(Superseded to 7300670AYP)

$

$

Not available

7

Snapper 7100225

SCREW, #8-16 x 5/8" Recessed Pan Head Twin Helix (Torx)
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7300649BH

HANDLE, Connecting, 21"/22" WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

9

Snapper 7101410

GUIDE, Rope (1/4-20 thread)
(Superseded to 7101410YP)

$6.49

$

In Stock, only 1 left!

0

10

Snapper 80003917

KNOB, 5/16-18 Wing (5/16-18 thread) (Black)
(Superseded to 703065)

Note: (Was 7035744)

$6.99

$

In Stock, Qty 20+

0

11

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

12

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7300628BH

HANDLE, Lower, 22" WBM
(Superseded to 7300628BHYP)

Note: (used on SP2265FC)

$125.99

$

Usually ships in 2-12 days

0

14

Snapper 7101395

CABLE, Bail, 22" WBM
(Superseded to 7101395YP)

$16.99

$

In Stock, only 1 left!

0

15

Snapper 7101202

KNOB, Quick Release
(Superseded to 7101202YP)

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 7101199

BUSHING, Handle Pin
(Superseded to 7101199YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7101200

SPRING, Compression
(Superseded to 7101200YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7101198

PIN, Handle Adjust
(Superseded to 7101198YP)

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 7091303

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR 5
(Superseded to 703800)

Note: (Was 7090958)

$3.99

$

In Stock, Qty 7

0

20

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

21

Snapper 7102573

GRASS BAG, 22" Rear Discharge
(Superseded to 7102573YP)

$128.99

$

Usually ships in 2-12 days

0

22

Snapper 7101230A

BAG FRAME, 22" WBM (Weldment)
(Superseded to 7101230AYP)

$222.99

$

Usually ships in 2-12 days

0

23

Snapper 7026421

GRIP, Rectangular (Black)
(Superseded to 7026421YP)

$6.49

$

In Stock, only 2 left!

0

24

Snapper 7024649

WIRE TIE, 11" Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0
