SP 2265 (7800165) - Snapper 22" Walk-Behind Mower, 6.5hp Deck Assemby (Self-Propelled) Parts Diagram

22" Walk-Behind Mower, 6.5hp

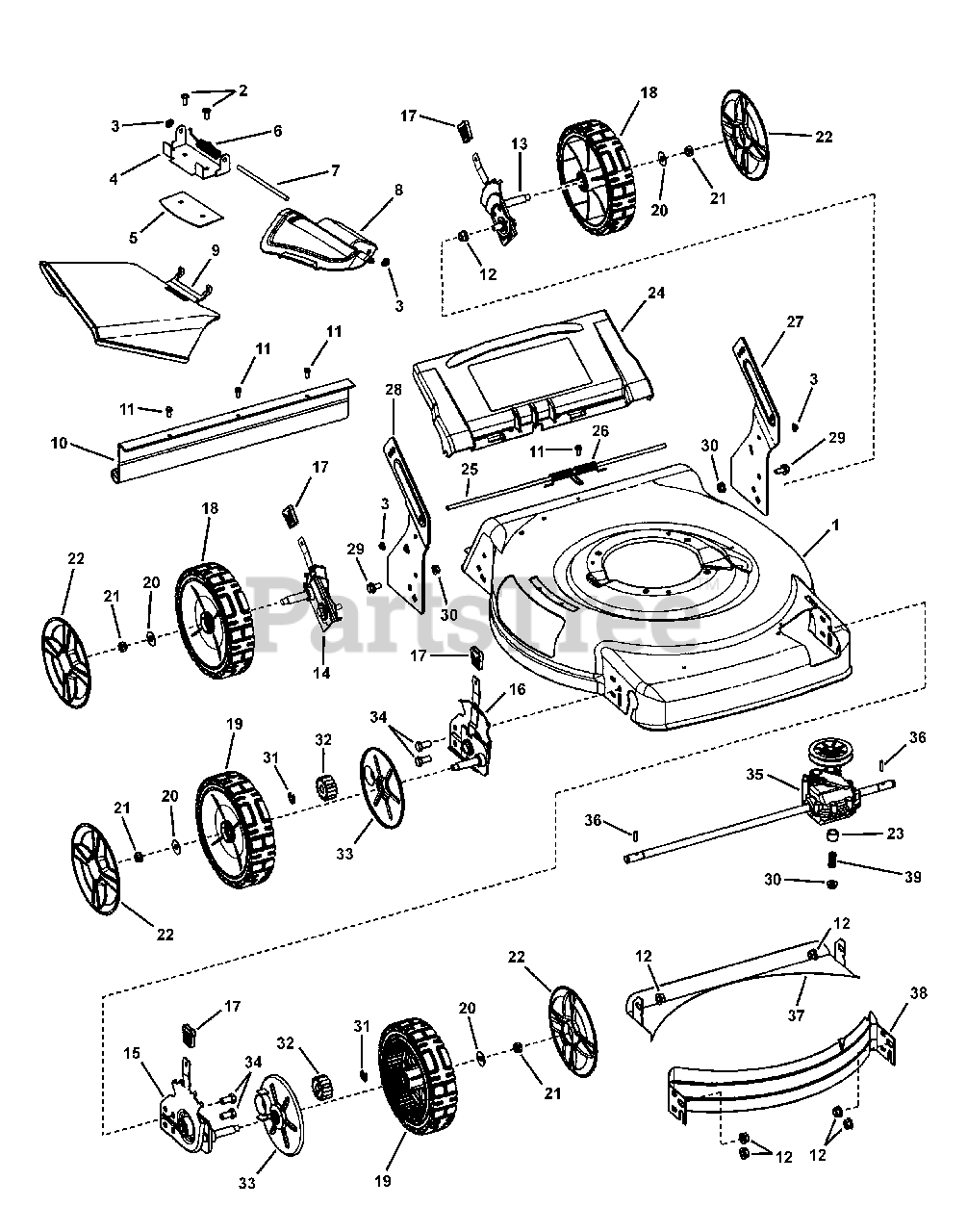

Deck Assemby (Self-Propelled) Parts Diagram

  • Title

1

Snapper 7300400D

DECK, 22" Walk, 3 N 1
(Superseded to 7300400DYP)

$186.99

$

Usually ships in 2-12 days

0

2

Snapper 7900067

SCREW, 1/4-20 x 11/16" Pan Head Self-Tap (Torx)
(Superseded to 703961)

Note: (or 722848)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7091020

PUSHNUT 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7300855D

BRACKET, Chute
(Superseded to 7300855DYP)

Note: (or 726768)

$6.99

$

In Stock, only 1 left!

0

5

Snapper 7300856D

PLATE, Mulch, 22" RB Scott's
(Superseded to 7300856DYP)

Note: (or 726766)

$5.99

$

In Stock, only 1 left!

0

6

Snapper 722507

SPRING, Chute (Torsion)
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

7

Snapper 7101067

ROD, Pivot (1/4" Dia. x 5.55")
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 721682

COVER, Mulch, Plastic, Black
(Superseded to 1101098MA)

$33.99

$

In Stock, only 1 left!

0

9

Snapper 721681

SIDE CHUTE, Plastic, Black
(Superseded to 1101097MA)

$39.99

$

Usually ships in 2-12 days

0

10

Snapper 7103347

GUARD, Rear
(Superseded to 7103347YP)

Note: (or 721685)

$

$

Not available

11

Snapper 7091286

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 12

0

12

Snapper 80002829

NUT, 3/8-16 Hex Flange Lock, YZ

Note: (Was 7091619)

$

$

Currently unavailable

13

Snapper 7501055

* ASSY, Height-Of-Cut, Left Rear, 22" WBM
(Superseded to 7501055YP)

$

$

Not available

14

Snapper 7501056

* ASSY, Height-Of-Cut, Right Rear, 22" WBM
(Superseded to 7501056YP)

$

$

Not available

15

Snapper 7501058

* ASSY, Height-Of-Cut, LF, 22" WBM, Propelled
(Superseded to 7501058YP)

$86.99

$

In Stock, only 1 left!

0

16

Snapper 7501057

* ASSY, Height-Of-Cut, RF, 22" WBM, Propelled
(Superseded to 7501057YP)

$74.99

$

Usually ships in 2-12 days

0

17

Snapper 7103793

GRIP, Height Latch - Black (1.7" Wide)
(Superseded to 7103793YP)

Note: (Was 7100633, 1.3" Wide)

$4.49

$

In Stock, Qty 9

0

18

Snapper 7500540

ASSY, Wheel & Bearing, 8 x 2 Idle, DW Tread
(Superseded to 7500540YP)

Note: (incl. two 1-1/8" O.D. Flanged Ball Bearings (p/n 7101380)

$40.99

$

In Stock, only 2 left!

0

19

Snapper 7500542

ASSY, Drive Wheel & Bearing, 8 x 2, DW Tread
(Superseded to 7500542YP)

Note: (incl. two 1-1/8" O.D. Flanged Ball Bearings (p/n 7101380)

$35.99

$

In Stock, only 2 left!

0

20

Snapper 722604

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

22

Snapper 7101350

HUBCAP, Black
(Superseded to 7101350YP)

$10.99

$

In Stock, Qty 19

0

23

Snapper 7102671

SPACER, .526" ID, .840" OD, .502" Wide
(Superseded to 7102671YP)

Note: (Was 720508)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7101243

DOOR, 22" Rear
(Superseded to 7101243YP)

$51.99

$

Usually ships in 2-12 days

0

25

Snapper 7101070

ROD, Pivot, Rear Door (1/4" Dia. X 17-1/2")
(Superseded to 7101070YP)

$6.49

$

Usually ships in 2-12 days

0

26

Snapper 7101461

SPRING, Torsion, Rear Door, 22" WBM
(Superseded to 7101461YP)

$6.99

$

Usually ships in 2-12 days

0

27

Snapper 7300668BH

BRACKET, Lower Handle, LH, 22" WBM
(Superseded to 7300668AYP)

$31.99

$

Usually ships in 2-12 days

0

28

Snapper 7300669BH

BRACKET, Lower Handle, RH, 22" WBM
(Superseded to 7300669AYP)

$31.99

$

In Stock, only 1 left!

0

29

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, YZ
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

30

Snapper 80002728

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

Note: (Was 1931277 or 7091601)

$5.49

$

In Stock, Qty 20+

0

31

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

Note: (Waldes 5133-50)

$4.49

$

In Stock, Qty 10

0

32

Snapper 7101207

GEAR, Pinion, 22" WBM, Front Wheel Drive
(Superseded to 7101207YP)

$8.49

$

In Stock, only 2 left!

0

33

Snapper 7101402

DUST SHIELD, Forward, 22" WBM
(Superseded to 7101402YP)

$7.49

$

In Stock, only 2 left!

0

34

Snapper 7900054

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 7900054YP)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7101206

TRANSMISSION, 22" WBM Single Speed, Front Wheel Drive
(Superseded to 7101206MA)

Note: (used on SP2265 & NSP22656)

$137.99

$

Usually ships in 2-12 days

0

36

Snapper 7101270

DRIVE PIN, 22" WBM, Front Wheel Drive
(Superseded to 7101270YP)

$5.49

$

In Stock, only 2 left!

0

37

Snapper 7300854D

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

Note: (or 725105)

$43.99

$

Usually ships in 2-12 days

0

38

Snapper 7300440D

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

39

Snapper 722410

SPRING, Compression
(Superseded to 164X27MA)

$3.99

$

Usually ships in 2-12 days

0
