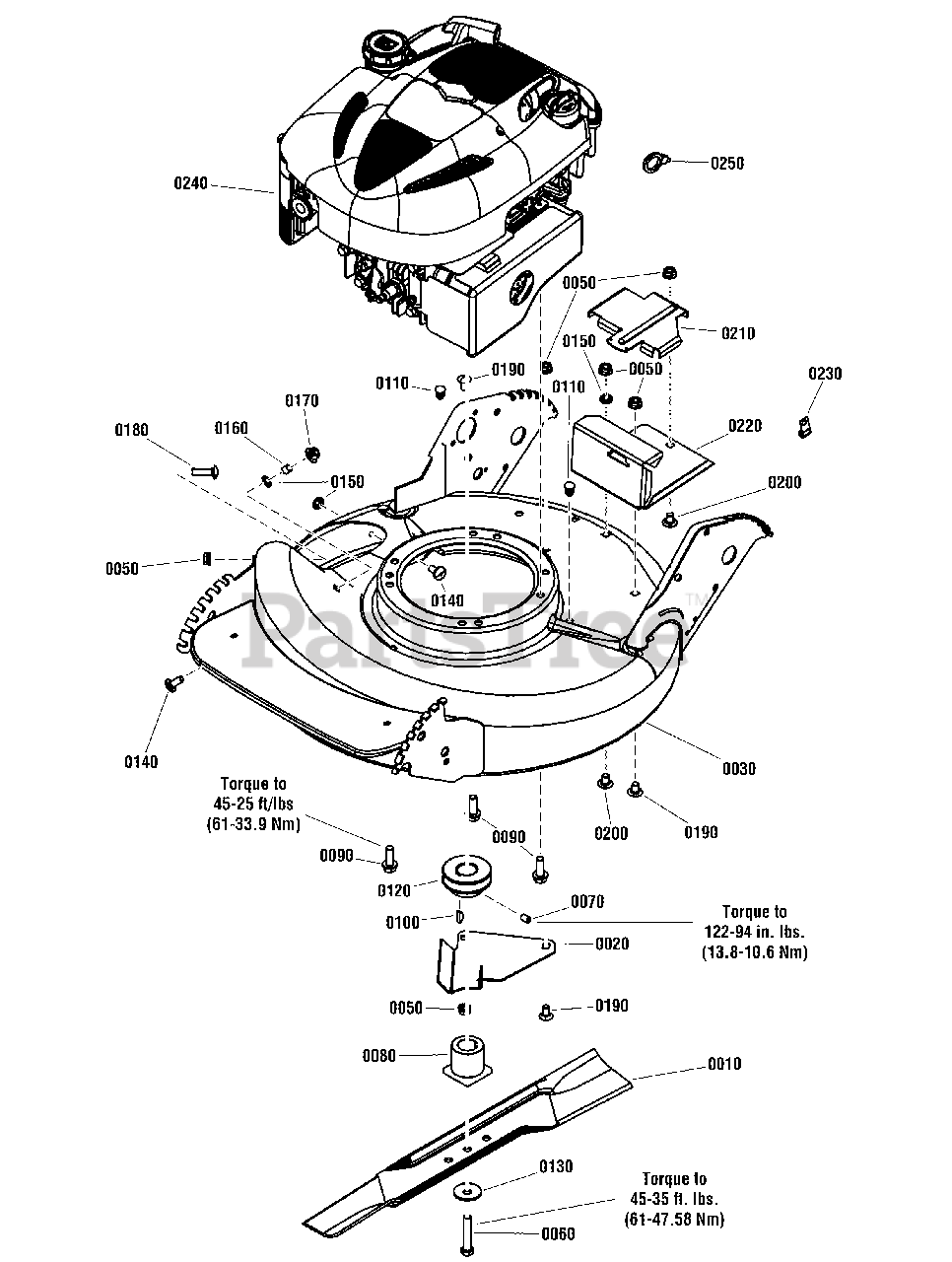

SP 2187520E (7800970-00) - Snapper 21" Walk-Behind Mower, 8.75hp Engine & Deck Group, 21PS Parts Diagram

21" Walk-Behind Mower, 8.75hp

Engine & Deck Group, 21PS Parts Diagram

  • Title

0010

Snapper 7026691YP

BLADE, 21" L, .97" Standard Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

0020

Snapper 7074568YP

COVER, Belt, Zinc/Clear

$12.99

$

Usually ships in 2-12 days

0

0030

Snapper 7500549DYP

KIT, Deck Weldment, 21", HV, SP, ES (red, w/decals)

$

$

Not available

0050

Snapper 690272MA

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

$

$

Not available

0060

Snapper 703999

SCREW, 3/8-24 X 2, Hex Head Cap, GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper 704003

SCREW, 5/16-18 X .50, Hex Socket Head, Phosp/Oil

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 7015626YP

HUB, Blade Drive, .25MM ID

$15.99

$

Usually ships in 2-12 days

0

0090

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

In Stock, only 1 left!

0

0100

Snapper 7091214YP

KEY, HI-PRO, .1875X.656, #605

$4.99

$

In Stock, only 1 left!

0

0110

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 7105122YP

PULLEY, Engine (25mm I. D. x 2-1/8 O.D.)

$40.99

$

In Stock, only 1 left!

0

0130

Snapper 703963

WASHER, 13/32x1-13/32" Dia. Cone

$6.99

$

In Stock, only 2 left!

0

0140

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0160

Snapper 7024340SM

SPACER, .375 OD X .316 ID X .305 L

$4.99

$

In Stock, only 4 left!

0

0170

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

$4.49

$

In Stock, Qty 17

0

0180

Snapper 704002

BOLT, 5/16-18 X 1.125, Carriage, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 703798

BOLT, 5/16-18 X .50, Carriage, Zinc/Clear

$4.49

$

In Stock, Qty 7

0

0210

Snapper 7036132AYP

COVER, Battery

$28.99

$

Usually ships in 2-12 days

0

0220

Snapper 7032906AYP

BRACKET, Battery

$11.99

$

Usually ships in 2-12 days

0

0230

Snapper 7012652YP

CLIP, Wire, 7/16

$3.99

$

Usually ships in 2-12 days

0

0240

Snapper 121S07-0065-F1

* ENGINE, B&S 8.75 GT, PRO, ES, Model #121S07-0065-F1

$

$

Currently unavailable

0250

Snapper 703586

TIE, .184 WD, 15.0 Long, Self Locking, Black

$4.99

$

Usually ships in 2-12 days

0
