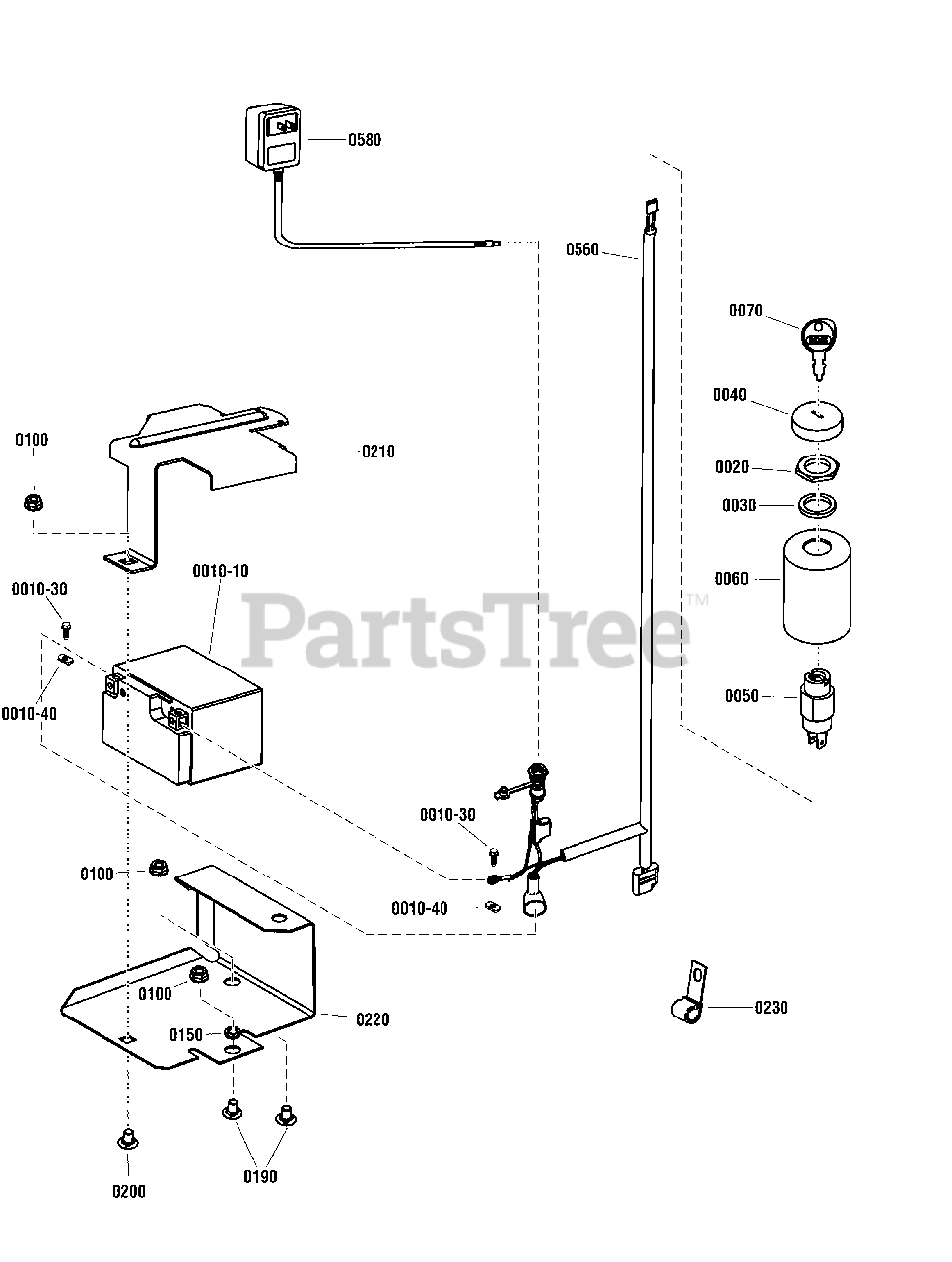

SP 2187520E (7800970-00) - Snapper 21" Walk-Behind Mower, 8.75hp Electric Start Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

Electric Start Group Parts Diagram

  • Title

0010-10

Snapper 7600224YP

KIT, Battery, 12 V, 4.0AH, (includes Acid, Hardware & Instr.)

$

$

Not available

0010-30

Snapper 7043977YP

SCREW, #10-24 x 1/2 Pan Head Machine

$

$

Not available

0010-40

Snapper 7090932

NUT, #10-24 Square
(Superseded to 7090932YP)

$6.49

$

Usually ships in 2-12 days

0

0020

Snapper 704229

NUT, 5/8-32, Hex, ZC/CL

$3.49

$

In Stock, only 1 left!

0

0030

Snapper 7016132SM

SPACER, .875 OD X.654 ID X.104 L ZN

$3.99

$

Usually ships in 2-12 days

0

0040

Snapper 7023506SM

BEZEL, (Seal & Face Nut)

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 690646

SWITCH, Key

$34.99

$

In Stock, Qty 5

0

0060

Snapper 7029080YP

COVER, Key Switch

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper 7011138YP

KEY, Ignition, Pair

$7.49

$

In Stock, Qty 7

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0150

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 703798

BOLT, 5/16-18 X .50, Carriage, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0210

Snapper 7036132AYP

COVER, Battery

$28.99

$

Usually ships in 2-12 days

0

0220

Snapper 7106294BMYP

BRACKET, Battery, W/Charge Port

$30.99

$

Usually ships in 2-12 days

0

0230

Snapper 7012652YP

CLIP, Wire, 7/16

$3.99

$

Usually ships in 2-12 days

0

0560

Snapper 7106273YP

WIRING HARNESS, W/Coax Jack, B&S WBM

$

$

Not available

0580

Snapper 705927

CHARGER, 120VAC, 12VDC Output, .75A, 2.5mm Round Plug
(Superseded to 84002790)

$38.99

$

In Stock, Qty 5

0
