SP 21 SE (12ACP2S7897) - Columbia 21" Walk-Behind Mower (2019) Handle Parts Diagram

21" Walk-Behind Mower

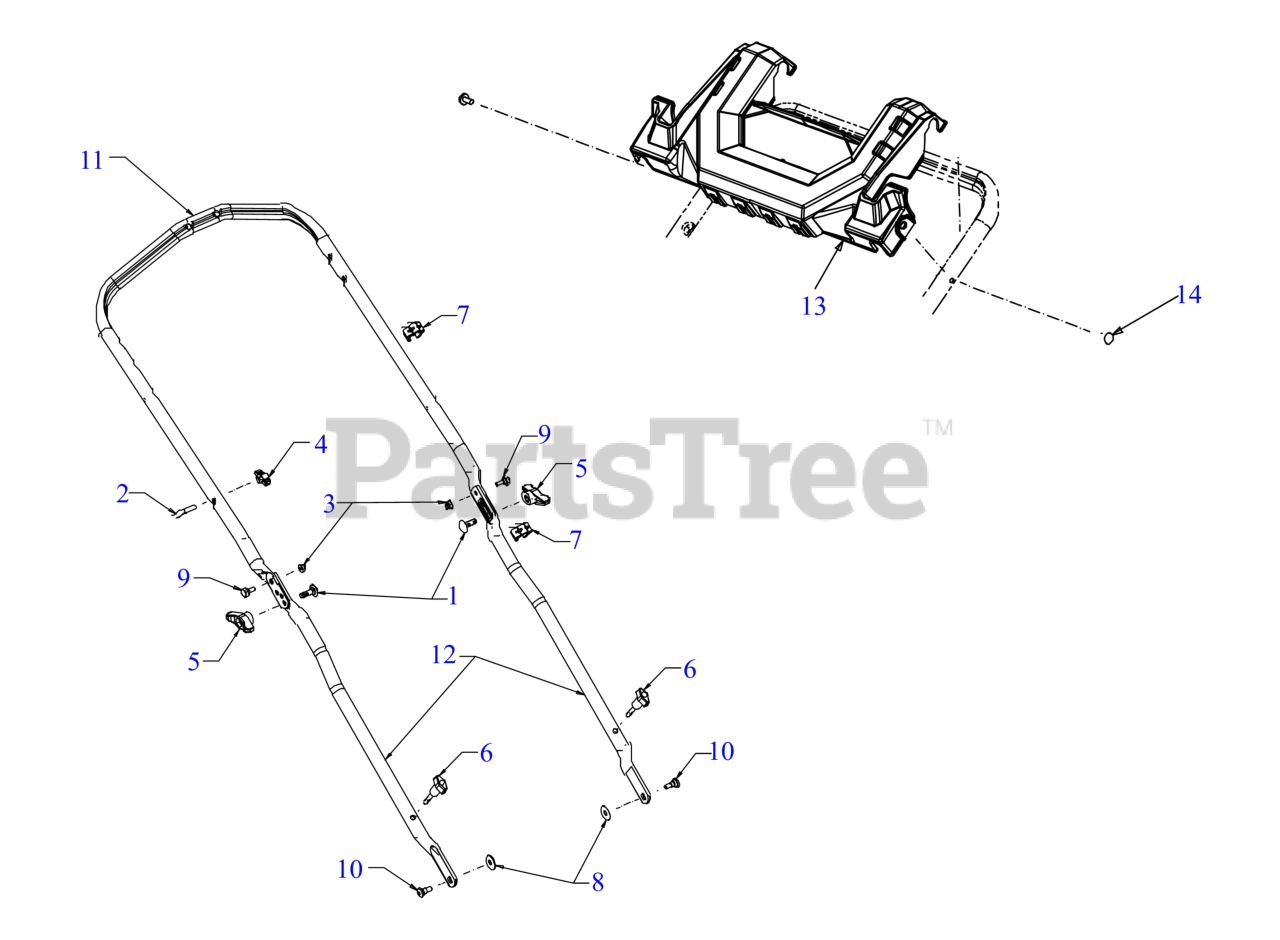

Handle Parts Diagram

  • Title

1

MTD 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, only 2 left!

0

2

MTD 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

5

MTD 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

6

MTD 720-05066A

WING KNOB 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 731-08454

CONDUIT CLIP

$4.49

$

In Stock, only 4 left!

0

8

MTD 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, Qty 20+

0

9

MTD 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

10

MTD 738-05010A

SHOULDER SCREW .450X .188X 1/4-20

$9.49

$

In Stock, Qty 7

0

11

MTD 749-05831A

UPPER HANDLE

$44.99

$

Usually ships in 3-6 days

0

12

MTD 749-07297-0637

LOWER HANDLE (EZ FOLD) (POWDER BLACK)

$25.99

$

In Stock, only 1 left!

0

13

MTD 931-09823A

HANDLE CONSOLE

$33.99

$

In Stock, only 2 left!

0

14

MTD 710-1017

SCREW 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0
