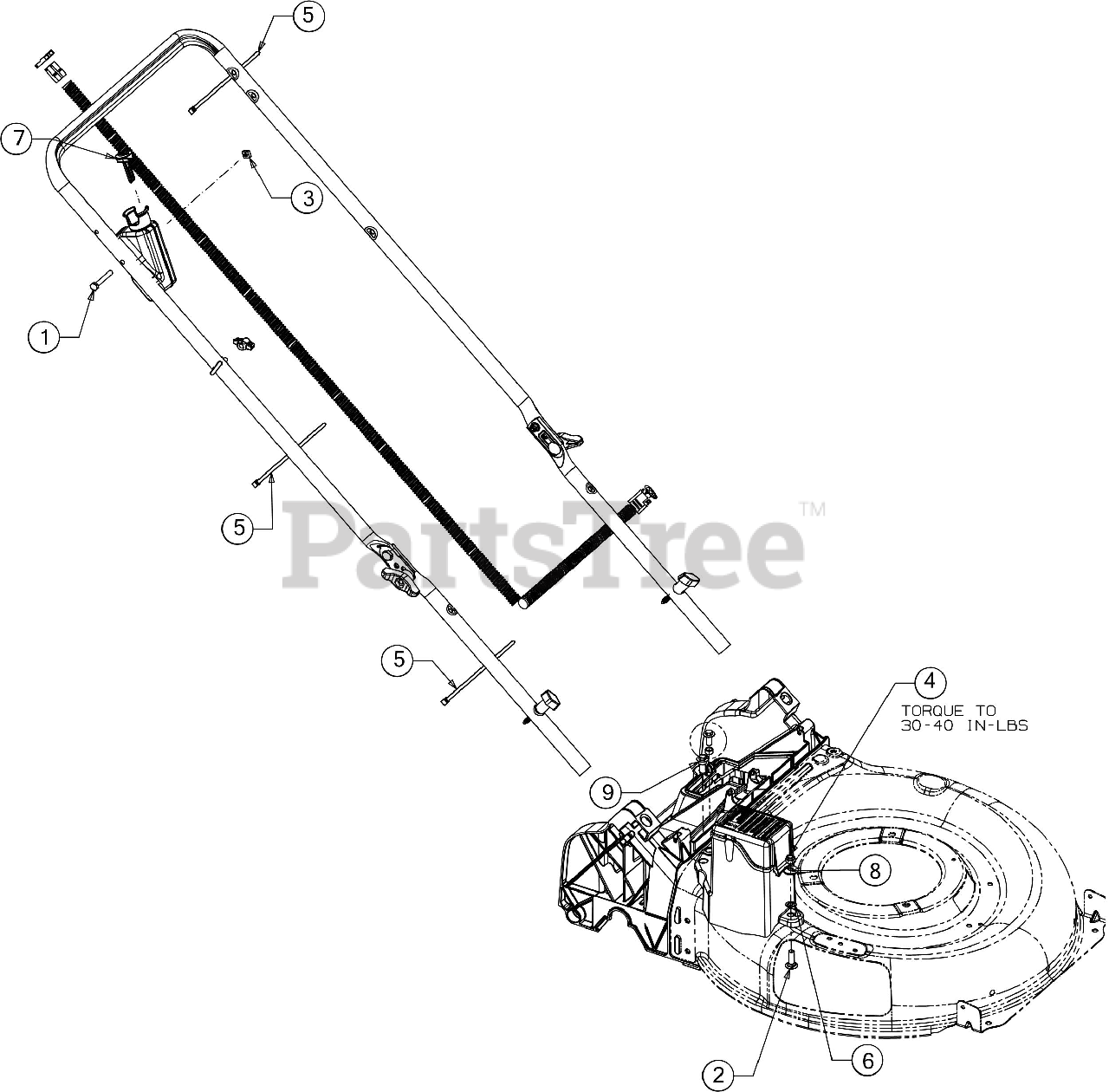

SP 21 SE (12ACD29W897) - Columbia 21" Walk-Behind Mower (2016) Electric Start Assembly Parts Diagram

21" Walk-Behind Mower

Electric Start Assembly Parts Diagram

  • Title
1

MTD 710-0136

HEX SCREW 1/4-20 X 1.75

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0276

CARRIAGE BOLT 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

Usually ships in 3-6 days

0

4

MTD 912-0429

HEX NUT
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

5

MTD 725-0157

CABLE TIE 7"

$3.99

$

In Stock, Qty 20+

0

6

MTD 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

7

MTD 731-09728

PUSH KEY

$4.99

$

In Stock, Qty 11

0

8

MTD 736-0242

BELL WASHER .337 X.867 X .057

$4.49

$

In Stock, Qty 20+

0

9

MTD 738-04431A

SHOULDER SCREW 5/16-14 X .972

$3.99

$

Usually ships in 3-6 days

0
