SP 21 H - Shindaiwa Manual Sprayer (SN: N08600001001 - NP8600999999) Pump / Pressure Relief Valve Parts Diagram

Manual Sprayer

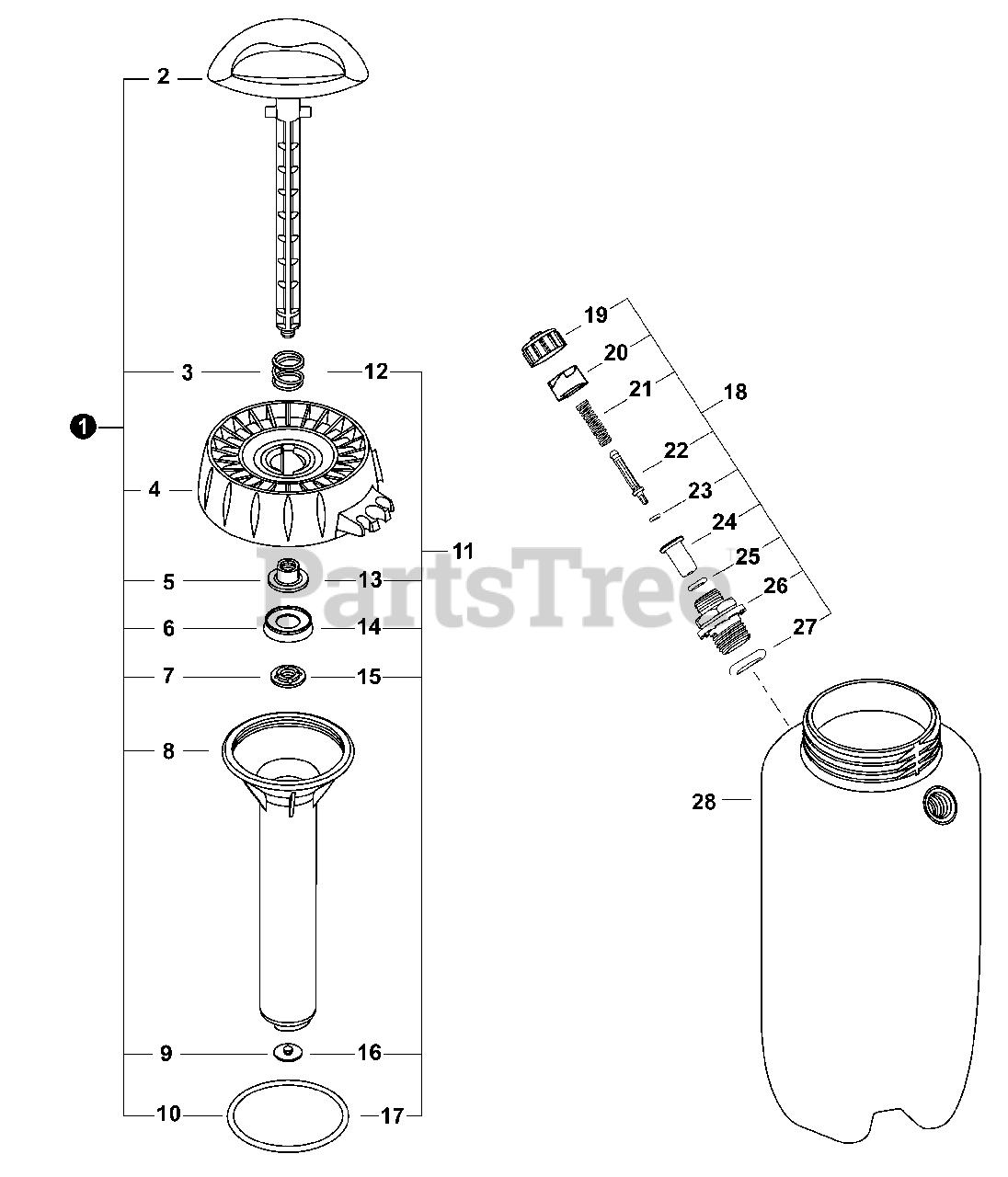

Pump / Pressure Relief Valve Parts Diagram

  • Title

1

Echo 99944100520

PUMP ASSY

Note: Includes Items 2-10

$62.99

$

Usually ships in 2-4 days

0

2

HANDLE, PUMP

$

$

Not available

3

SPRING, PUMP

$

$

Not available

4

CAP, TANK

$

$

Not available

5

ADAPTOR, PLUNGER CUP

$

$

Not available

6

CUP, PLUNGER

$

$

Not available

7

HOLDER - PLUNGER CUP

$

$

Not available

8

BARREL, PUMP

$

$

Not available

9

VALVE, CHECK

$

$

Not available

10

O-RING, CAP

$

$

Not available

11

Echo 569034

REPAIR KIT, PUMP
(Superseded to 99944100520)

Note: Includes Items 12-17

$62.99

$

Usually ships in 2-4 days

0

12

SPRING, PUMP

$

$

Not available

13

ADAPTOR, PLUNGER CUP

$

$

Not available

14

CUP, PLUNGER

$

$

Not available

15

HOLDER - PLUNGER CUP

$

$

Not available

16

VALVE, CHECK

$

$

Not available

17

O-RING, CAP

$

$

Not available

18

Echo 569033

VALVE, PRESSURE RELIEF

Note: Includes Items 19-27

$35.99

$

In Stock, only 1 left!

0

19

CAP

$

$

Not available

20

RETAINER

$

$

Not available

21

SPRING

$

$

Not available

22

PLUNGER

$

$

Not available

23

O-RING

$

$

Not available

24

BARREL, PUMP

$

$

Not available

25

O-RING

$

$

Not available

26

Echo CN011657

OUTLET, TANK 11/16

$2.99

$

Usually ships in 2-4 days

0

27

O-RING

$

$

Not available

28

N/A (no disponible)

TANK, SPRAYER

$

$

Not available
