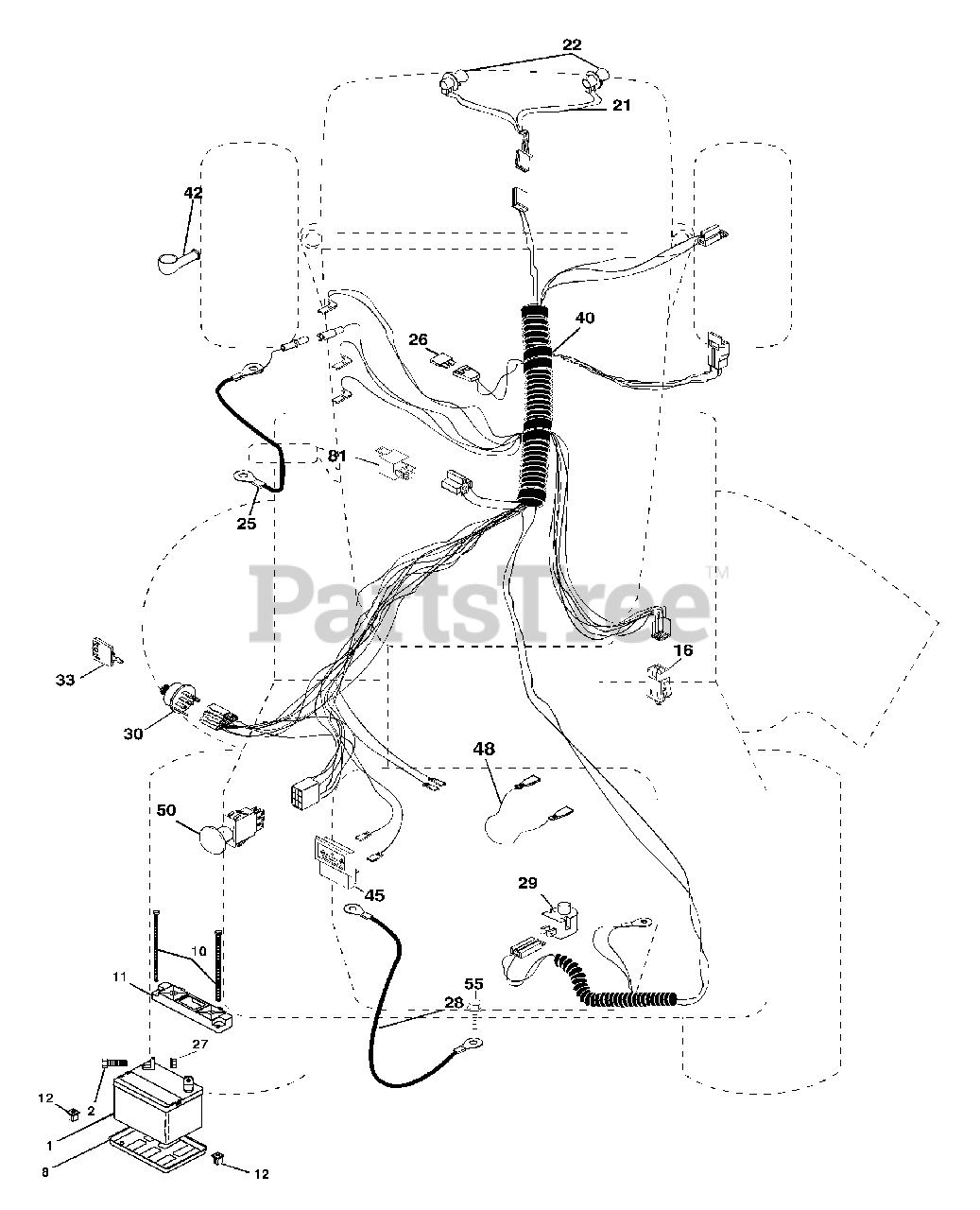

SP 20PH48ST A - Statesman Lawn Tractor (2003) (Southern States) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Electrolux/AYP 144927

Battery
(Superseded to 532144927)

$

$

Not available

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20 Unc x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 7603J

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145211

Bolt, BTR FRT 1/4-20 x 7.5
(Superseded to 532145211)

$

$

Not available

11

Electrolux/AYP 150109

Hold Down Battery, Front
(Superseded to 532150109)

$

$

Not available

12

Electrolux/AYP 145769

Nut, Push, Nylon
(Superseded to 532145769)

$

$

Not available

16

Electrolux/AYP 176138

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 175688

Harness Asm Light W/Bulbs
(Superseded to 532175688)

$44.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 4152J

Bulb Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146148

Cable Batterywire
(Superseded to 532146148)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 145491

Cable Ground
(Superseded to 532145491)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 160784

Switch Plunger Normal OP Olive
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 175566

Switch Ign 4 pos w/lights
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 140401

Key Ign
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

40

Electrolux/AYP 186845

Harness Ign.
(Superseded to 583162301)

$141.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 154336

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 122822X

Ammeter Rectangular
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 141940

Protection Wire Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 174651

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

55

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 175242

Bulbholder
(Superseded to 532175242)

$18.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 109748X

Relay Asm
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0
