SP 196750FC (881228) - Snapper 19" Walk-Behind Mower, 6.75hp Handle Group Parts Diagram

19" Walk-Behind Mower, 6.75hp

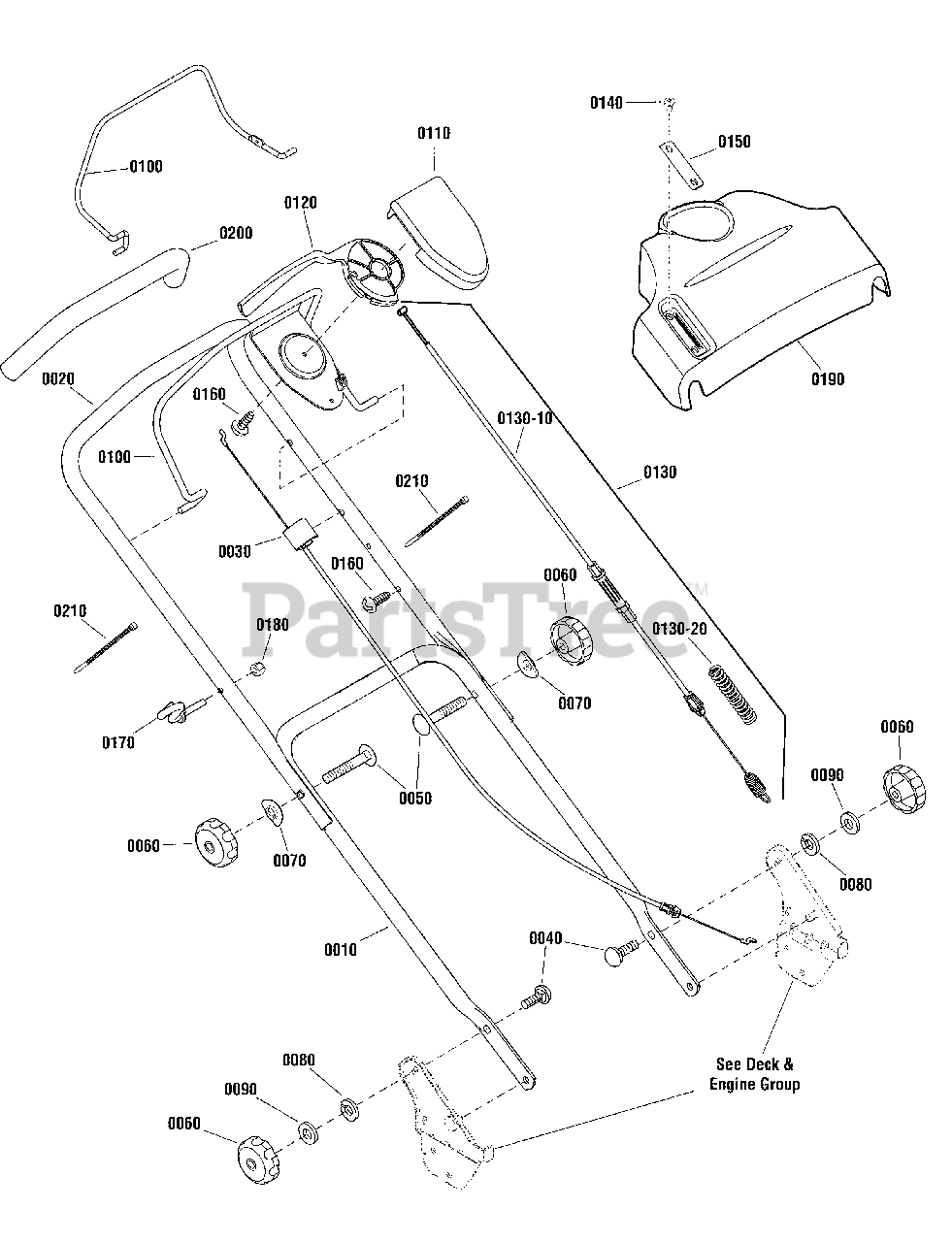

Handle Group Parts Diagram

  • Title

0010

Snapper 880571AYP

HANDLE, Lower, 19" (Black)

$

$

Not available

0020

Snapper 880673AYP

HANDLE, Upper, 19" (Black)

Note: (Used on propelled model #881228)

$74.99

$

Usually ships in 2-12 days

0

0020

Snapper 880210AYP

HANDLE, Upper, 19" (Black)

Note: (Used on push model 881227)

$85.99

$

Usually ships in 2-12 days

0

0030

Snapper 880279YP

CABLE, Engine Stop, 48.68"

Note: (Used on push model 881227)

$18.99

$

In Stock, only 1 left!

0

0030

Snapper 880639YP

CABLE, Engine Stop, 50.5"

Note: (Used on propelled model #881228)

$25.99

$

Usually ships in 2-12 days

0

0040

Snapper 880576YP

BOLT, Carriage, 5/16-18 X 1 1/8

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper 880594YP

BOLT, Carriage, 5/16-18 X 2

$3.99

$

Usually ships in 2-12 days

0

0060

Snapper 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 880615YP

WASHER, Formed Curve, .344-1.00-.06

$4.99

$

Usually ships in 2-12 days

0

0080

Snapper 22129GP

WASHER, 5/16-M8, Split Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

0090

Snapper 880607YP

WASHER, Flat, .34 ID, .69 OD

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 881854ZYP

BAIL, Weldment, Drive / Engine Bracket

Note: (Used on propelled model #881228)

$43.99

$

Usually ships in 2-12 days

0

0100

Snapper 881855ZYP

BAIL, Engine Stop Lever

Note: (Used on push model 881227)

$

$

Currently unavailable

0110

Snapper 880328YP

COVER, Self-Propel Control

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 880329YP

LEVER, Self-Propel Drive

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 881140YP

CABLE ASSEMBLY, Drive, 53.75" (Includes Spring)

$24.99

$

Usually ships in 2-12 days

0

0130-10

Snapper 880458YP

CABLE ASSEMBLY, Drive, 53.75"

$29.99

$

Usually ships in 2-12 days

0

0130-20

Snapper 880929YP

SPRING, Compression

$3.49

$

Usually ships in 2-12 days

0

0140

Snapper 881236YP

COVER, Throttle

$2.99

$

Usually ships in 2-12 days

0

0150

Snapper 26X229MA

SCREW, 1/4-14 X .38" STHX

$4.49

$

In Stock, only 1 left!

0

0160

Snapper 26X245MA

SCREW, #10-B X .50 Hex Washer

$4.49

$

In Stock, Qty 6

0

0170

Snapper 7028488MA

GUIDE, 1/4-20, Rope, CL/ZC

$6.49

$

Usually ships in 2-12 days

0

0180

Snapper 880561YP

NUT, 1/4-20, Nylock, UNC-2A

$3.99

$

Usually ships in 2-12 days

0

0190

Snapper 880635YP

CONTROL PANEL, 19"

$51.99

$

Usually ships in 2-12 days

0

0200

Snapper 880457YP

TUBING, Foam - Black, 19.3"

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 703586

TIE, Cable, 7.48"

$4.99

$

Usually ships in 2-12 days

0
