SP 19550EX (881545-00) - Snapper 19" Walk-Behind Mower, 5.5hp Handles Group Parts Diagram

19" Walk-Behind Mower, 5.5hp

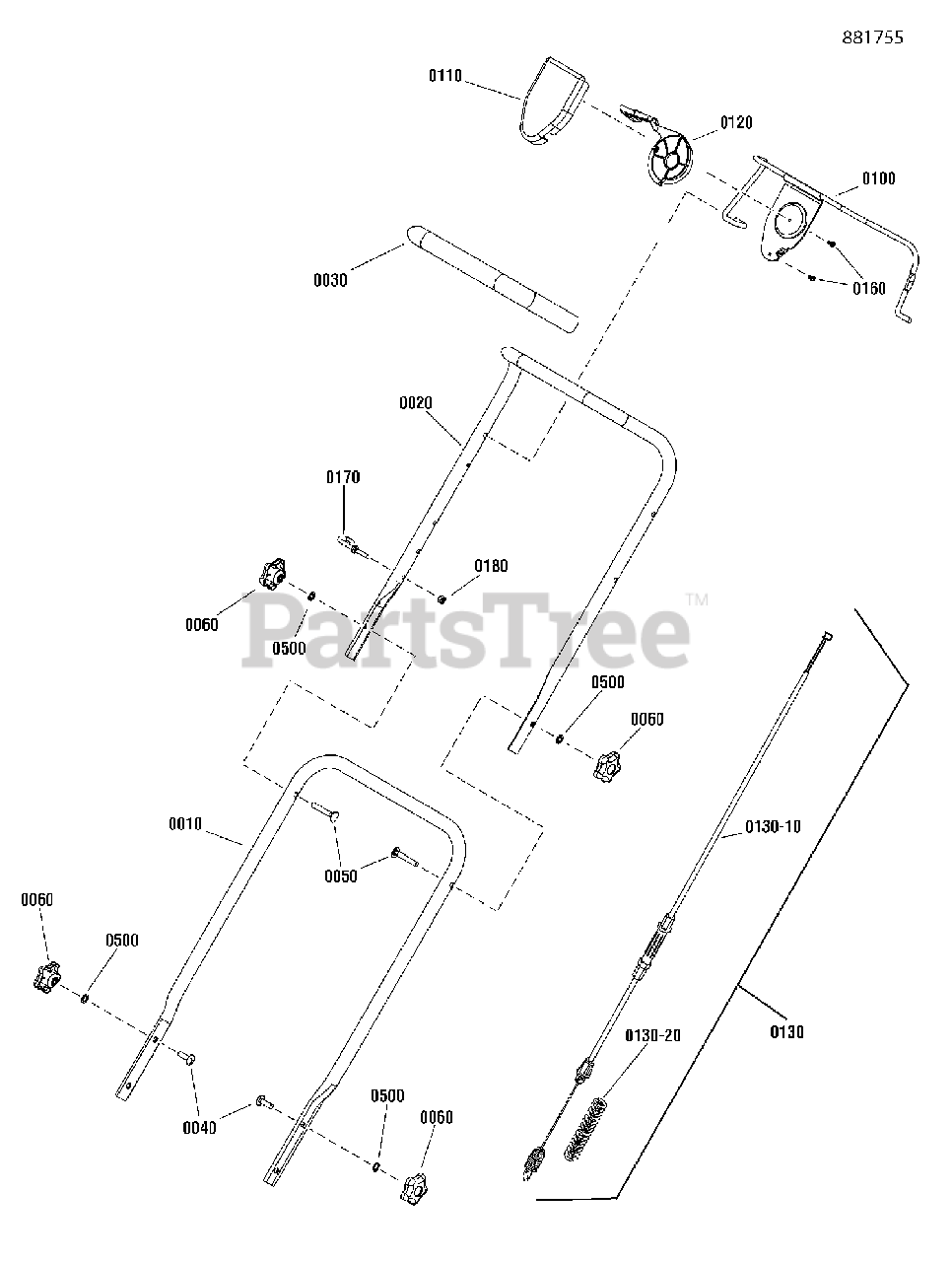

Handles Group Parts Diagram

  • Title

0010

Snapper 880571BH

LOWER HANDLE, 19" - Gray
(Superseded to 880571BHYP)

$39.99

$

Usually ships in 2-12 days

0

0020

Snapper 881594BH

HANDLE, 19" Upper

$

$

Currently unavailable

0030

Snapper 880457

TUBING, Foam - Black P-481
(Superseded to 880457YP)

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper 7091714

BOLT, 5/16-18 x 1" Round Head Square Neck, GR 5 YZ
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0050

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

0060

Snapper 7105085

KNOB, Handle, 5-Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 881854Z

WELDMENT, Stop Lever/Bracket, 19
(Superseded to 881854ZYP)

$43.99

$

Usually ships in 2-12 days

0

0110

Snapper 880328

COVER, SP Control
(Superseded to 880328YP)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 880329

LEVER, SP Drive
(Superseded to 880329YP)

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 881140

ASSEMBLY, Drive Cable
(Superseded to 881140YP)

$24.99

$

Usually ships in 2-12 days

0

0130-10

Snapper 880458

ASSEMBLY, Drive Cable
(Superseded to 880458YP)

$29.99

$

Usually ships in 2-12 days

0

0130-20

Snapper 880929

SPRING, Compression
(Superseded to 880929YP)

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 880070

SCREW, 310, Hi-Lo x 1/2" Long
(Superseded to 880070YP)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 7028488

ROPE GUIDE (1/4-20 threads)
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

0180

Snapper 880561

NUT, 1/4-20 Hex, Nyloc
(Superseded to 880561YP)

$3.99

$

Usually ships in 2-12 days

0

0500

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
