SP 150 - Shindaiwa Manual Sprayer General Assembly Parts Diagram

Manual Sprayer

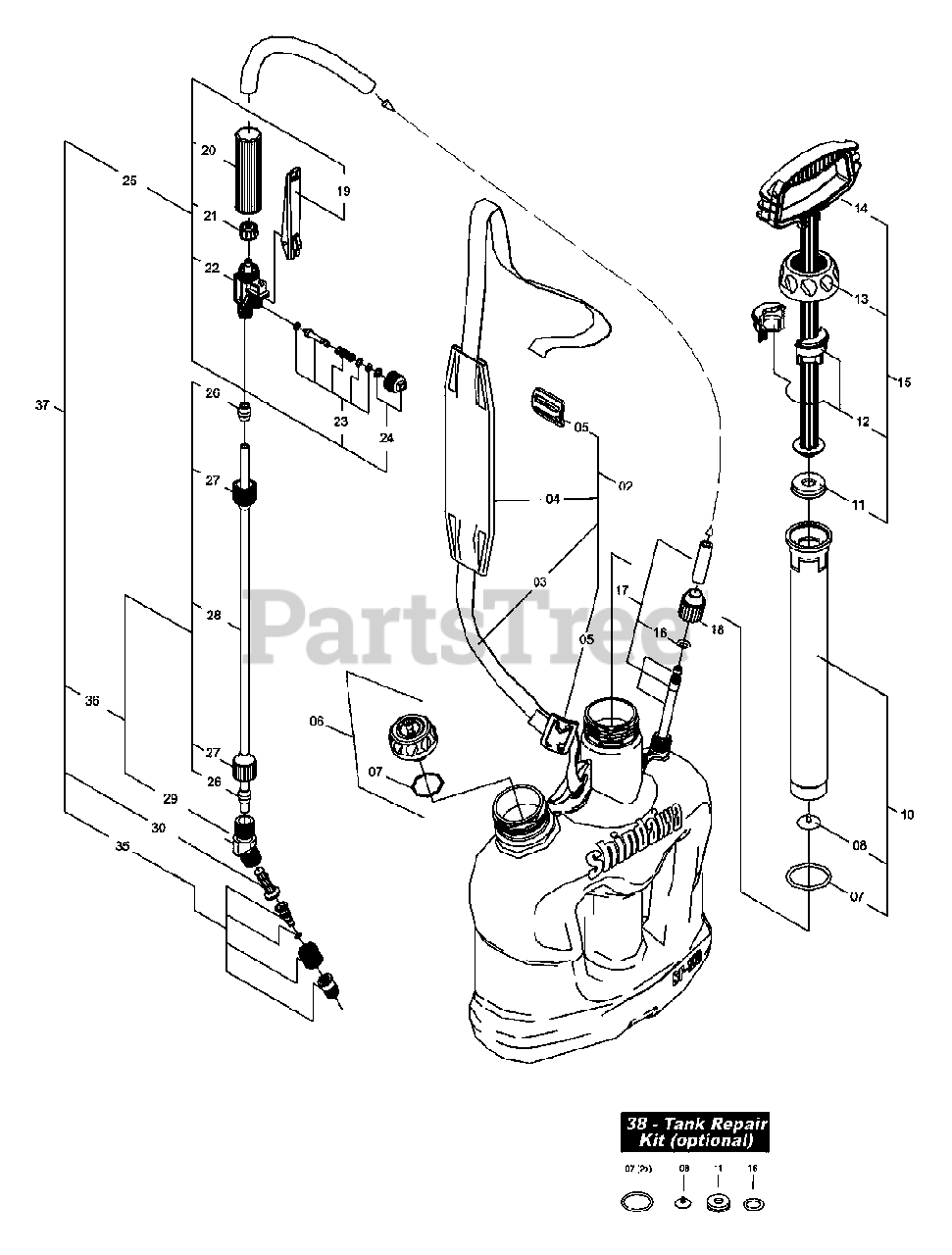

General Assembly Parts Diagram

  • Title
02

Echo 925198

STRAP ASSY
(Superseded to Discontinued)

$

$

Not available

03

Echo 901018

STRAP 1800MM
(Superseded to 713545)

$7.49

$

Usually ships in 2-4 days

0

04

Echo 917477

PAD, SHOULDER
(Superseded to 713578)

$

$

Not available

05

Echo 502757

BUCKLE, STRAP - LOWER

$0.99

$

Usually ships in 2-4 days

0

06

Echo 922550

TANK LID ASSY
(Superseded to 713586)

$33.99

$

Usually ships in 2-4 days

0

07

Echo 8000778

O-RING, TANK LID
(Superseded to 699116)

$2.49

$

Usually ships in 2-4 days

0

08

Echo 964270

DIAPHRAGM VALVE, VITON(R)

$7.49

$

In Stock, only 1 left!

0

10

Echo 285262

PUMP TUBE ASSY

$36.99

$

Usually ships in 2-4 days

0

11

Echo 285270

CUP, PISTON
(Superseded to 147678)

$

$

Not available

12

Echo 285288

BUSHING
(Superseded to Discontinued)

$

$

Not available

13

Echo 285296

CYLINDER CAP

$7.99

$

Usually ships in 2-4 days

0

14

N/A

LABEL - GENERATOR

$

$

Not available

15

Echo 285312

PUMP HANDLE ASSY
(Superseded to 285635)

$

$

Not available

16

Echo 8000236

O-RING - 110
(Superseded to 237206)

$9.49

$

Usually ships in 2-4 days

0

17

Echo 9012246

DIP TUBE WITH HOSE
(Superseded to 250928)

$14.99

$

In Stock, only 2 left!

0

18

Echo 942193

NUT - 20X1.5

$1.99

$

In Stock, only 4 left!

0

19

Echo 568972

TRIGGER
(Superseded to 1220951)

$11.99

$

Usually ships in 2-4 days

0

20

Echo 909192

HANDLE, TRIGGER VALVE

$1.99

$

In Stock, only 3 left!

0

21

$0.99

$

In Stock, only 2 left!

0

22

Echo 909283

BODY, TRIGGER VALVE

$3.99

$

Usually ships in 2-4 days

0

23

Echo 105239

TRIGGER VALVE NEEDLE ASSY
(Superseded to 1230971)

$8.99

$

Usually ships in 2-4 days

0

24

Echo 996058

TRIGGER VALVE CAP ASSY

$1.99

$

In Stock, Qty 10

0

25

Echo 568782

TRIGGER VALVE ASSY
(Superseded to 908889)

$23.99

$

In Stock, Qty 6

0

26

Echo 909309

CONE PACKING
(Superseded to 635276)

$3.99

$

In Stock, only 2 left!

0

27

Echo 915744

SCREW
(Superseded to 1220969)

$1.99

$

In Stock, Qty 11

0

28

Echo 336263

SPRAY WAND TUBE
(Superseded to 568873)

$

$

Not available

29

Echo 635276

ELBOW

$3.99

$

In Stock, only 2 left!

0

30

Echo 592139

NOZZLE FILTER
(Superseded to 1168545)

$1.49

$

In Stock, Qty 20+

0

35

Echo 015024

ADJUSTABLE CONE NOZZLE

$3.99

$

Usually ships in 2-4 days

0

36

Echo 568873

SPRAY TUBE ASSY

$

$

Not available

37

Echo 568774

SPRAY WAND ASSY

$35.99

$

In Stock, only 2 left!

0

38

Echo 927850

SEAL KIT
(Superseded to 118504)

Note: OPTIONAL

$

$

Not available
