SP 110 (2691562-00) - Snapper 22" Walk-Behind Mower, 3-N-1 AWD, 160 Series Briggs 2691562Deck_Handles Parts Diagram

22" Walk-Behind Mower, 3-N-1 AWD, 160 Series Briggs

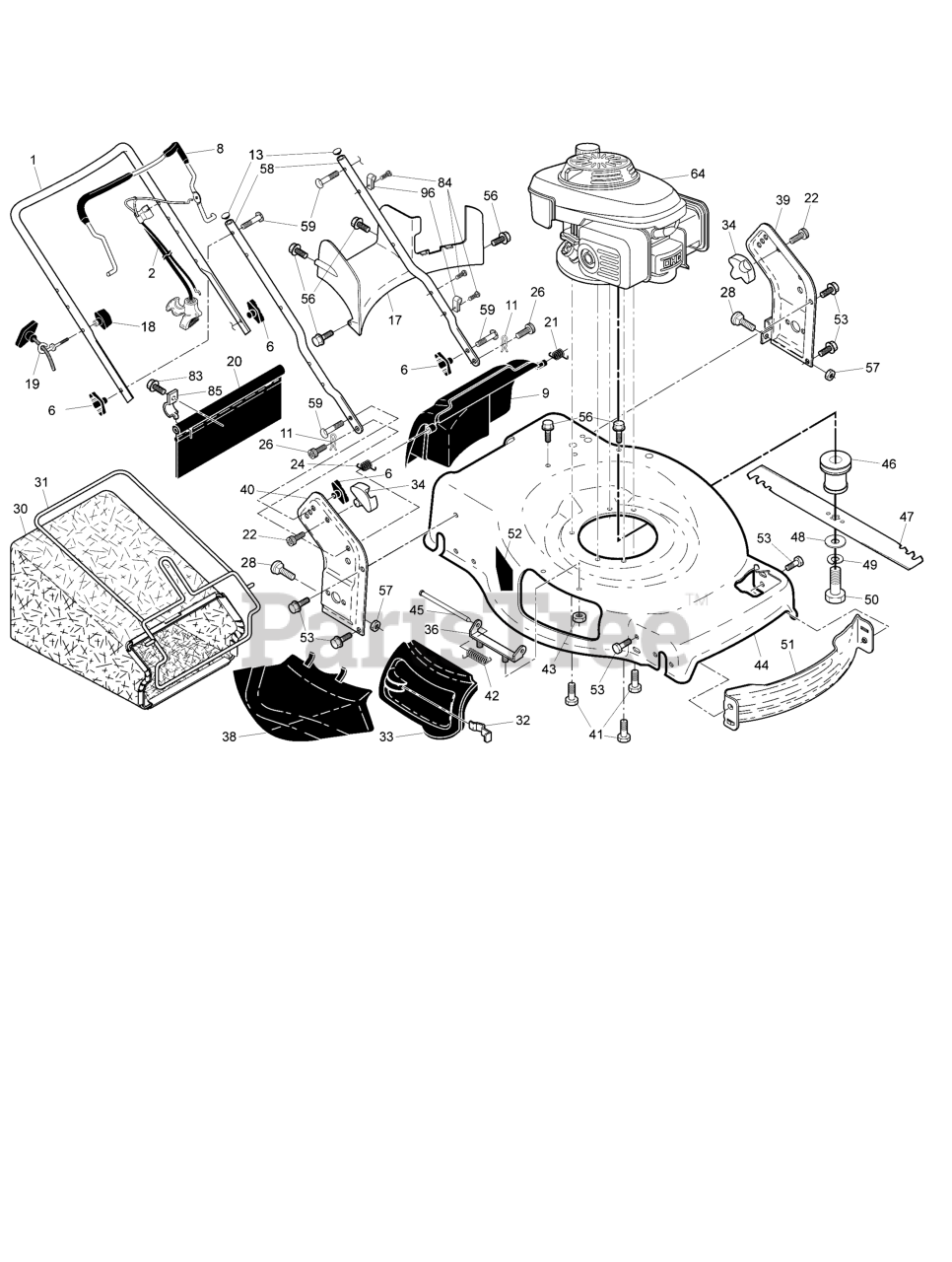

2691562Deck_Handles Parts Diagram

  • Title

1

Snapper 84003970

HANDLE, Upper

$142.99

$

Usually ships in 2-12 days

0

2

Snapper 84003971

CABLE, Engine Zone Control

$67.99

$

In Stock, only 1 left!

0

6

Snapper 84004291

KNOB, Handle, Standard

$

$

Not available

8

Snapper 84003972

BAR, Control

$60.99

$

Usually ships in 2-12 days

0

9

Snapper 84003973

ASSEMBLY, Rear Door

$88.99

$

Usually ships in 2-12 days

0

11

Snapper 707772

HAIRPIN

$9.49

$

Usually ships in 2-12 days

0

13

Snapper 707666

PLUG, Handle

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 707667

BAFFLE, Rear

$38.99

$

Usually ships in 2-12 days

0

18

Snapper 707668

KNOB

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 707669

GUIDE, Rope

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 84003974

SKIRT, Rear

$

$

Not available

21

Snapper 709341

Spring, Rear Door, LH, Black

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 709080

Screw, Panhead, Torx #20

$6.49

$

Usually ships in 2-12 days

0

24

Snapper 709340

Spring, Rear Door, RH, Grey
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 84004302

SCREW, Door/Handle Pivot

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 707675

BOLT, Carriage, 5/16-18 x 5/8

$5.49

$

Usually ships in 2-12 days

0

30

Snapper 84003976

GRASSBAG

$

$

Currently unavailable

31

Snapper 707677

FRAME, Grass Bag

$173.99

$

Usually ships in 2-12 days

0

32

Snapper 709337

Latch, Mulcher Door

$10.99

$

In Stock, only 1 left!

0

33

Snapper 84003977

DOOR, Mulcher

$51.99

$

In Stock, only 1 left!

0

34

Snapper 84004304

BRACKET, Pivot

$8.99

$

In Stock, only 1 left!

0

36

Snapper 709183

Hinge Bracket Assembly

$13.99

$

In Stock, only 1 left!

0

38

Snapper 709336

Discharge Deflector

$37.99

$

In Stock, only 1 left!

0

39

Snapper 707679

BRACKET, Handle, Left

$45.99

$

Usually ships in 2-12 days

0

40

Snapper 707767

BRACKET, Handle, Right

$59.99

$

Usually ships in 2-12 days

0

41

Snapper 84004301

SCREW, 3/8 Hex HD Thread Rolled

$16.99

$

Usually ships in 2-12 days

0

42

Snapper 709257

Spring, Torsion

$10.99

$

Usually ships in 2-12 days

0

43

Snapper 709237

Nut, Hex, Flanged 1/4-20

$6.99

$

Usually ships in 2-12 days

0

44

Snapper 84003979

KIT, Lawn Mower Housing

$387.99

$

Usually ships in 2-12 days

0

45

Snapper 707178

HOSE-FUEL

$49.99

$

Usually ships in 2-12 days

0

46

Snapper 84003983

ADAPTER / PULLEY, Blade

$45.99

$

In Stock, only 1 left!

0

47

Snapper 709343

Blade, 22"

$38.99

$

In Stock, only 1 left!

0

48

Snapper 709448

WASHER, Hardened

$9.99

$

In Stock, only 4 left!

0

49

84003984

WASHER, Helical

$

$

Not available

50

Snapper 709449

Screw, Machine, Hex Head, 3/8-24 x 1-3/8, Grade 8

$9.99

$

In Stock, only 1 left!

0

51

Snapper 709371

Front Baffle
(Superseded to 707687)

$

$

Not available

52

Snapper 7013010SM

DECAL, CPSC, Danger, Cut Finger

$9.49

$

In Stock, Qty 11

0

53

Snapper 705320

SCREW, 5/16-18

$10.99

$

In Stock, only 1 left!

0

56

Snapper 709159

Screw, Hex Washer Head, #13 x 3/4

$7.99

$

Usually ships in 2-12 days

0

57

Snapper 709105

Nut, Hex 3/8-16

$6.99

$

In Stock, only 1 left!

0

58

Snapper 707691

HANDLE, Lower

$62.99

$

Usually ships in 2-12 days

0

59

Snapper 709234

Bolt, Carriage 1/4-20 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

64

Snapper GCV160-LAOS3B

* ENGINE - Honda, Model Number GCV160-LAOS3B

$

$

Currently unavailable

83

Snapper 709835

SCREW

$5.99

$

Usually ships in 2-12 days

0

84

Snapper 707694

FASTENER, Push

$9.49

$

Usually ships in 2-12 days

0

85

Snapper 707695

BRACKET, Mounting, Rear Skirt

$9.49

$

In Stock, only 2 left!

0

96

Snapper 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

--

Snapper 707698

KIT, Hardware, Handle

$7.99

$

Usually ships in 2-12 days

0

--

Snapper 84003986

MANUAL, Operator's

$

$

Currently unavailable
