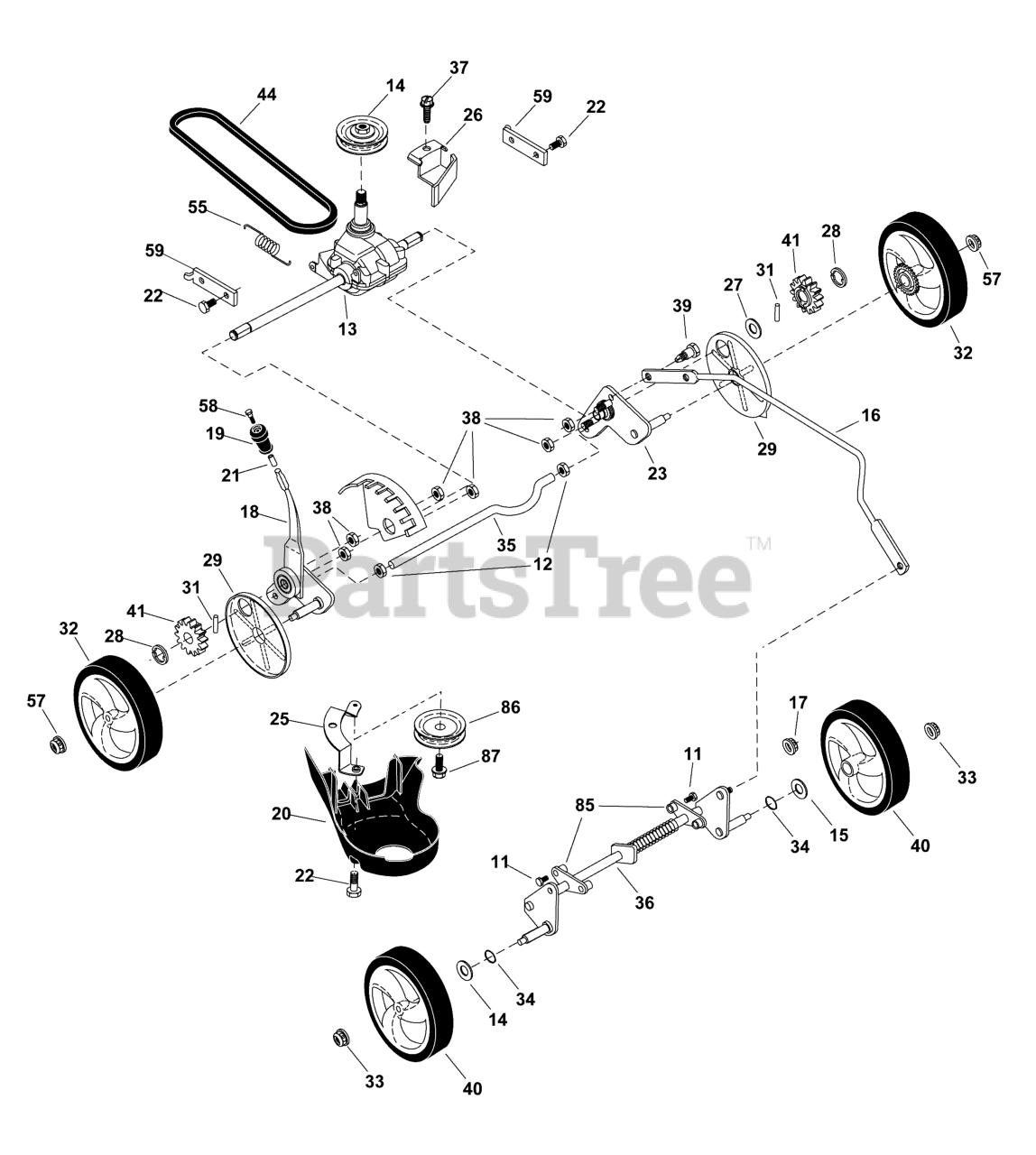

SP 110 (2691554-00) - Snapper 22" Walk-Behind Mower, AWD, 160 Series Briggs Transmission & Wheels Group Parts Diagram

22" Walk-Behind Mower, AWD, 160 Series Briggs

Transmission & Wheels Group Parts Diagram

  • Title

11

Snapper 709159

Screw, Hex Washer Head, #13 x 3/4

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 705357

Nut Hex Jam Toplock 1/2-20 unf

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 707704

GEARCASE ASSEMBLY, Rear

$307.99

$

Usually ships in 2-12 days

0

14

Snapper 709833

PULLEY

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 709452

WASHER, Flat, 3/8

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 84005590

ROD, Height Adjust

$84.99

$

Usually ships in 2-12 days

0

17

Snapper 709445

Locknut, Hex 5/16-18
(Superseded to 709354)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 84005589

LEVER, Height Adjust

$

$

Currently unavailable

19

Snapper 84005588

KNOB

$14.99

$

Usually ships in 2-12 days

0

20

Snapper 707709

COVER, Debris

$66.99

$

Usually ships in 2-12 days

0

21

Snapper 84005587

INSERT, Threaded

$13.99

$

Usually ships in 2-12 days

0

22

Snapper 705320

SCREW, FRONT BAFFLE

$10.99

$

In Stock, only 1 left!

0

23

Snapper 84005586

AXLE, Rear

$

$

Currently unavailable

25

Snapper 84005580

BRACKET, Mounting

$

$

Currently unavailable

26

Snapper 84005579

GUIDE, Belt

$12.99

$

Usually ships in 2-12 days

0

27

Snapper 84005577

WASHER, Flat

$

$

Currently unavailable

28

Snapper 709760

E-RING

$6.49

$

Usually ships in 2-12 days

0

29

Snapper 84005576

COVER, Wheel, Dust

$31.99

$

Usually ships in 2-12 days

0

31

Snapper 709310

Pawl, Drive

$5.99

$

Usually ships in 2-12 days

0

32

Snapper 84005985

WHEEL ASSEMBLY, Rear

$98.99

$

Usually ships in 2-12 days

0

33

Snapper 709321

NUT, LOCK FLG, 3/8-16

$9.99

$

Usually ships in 2-12 days

0

34

Snapper 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

35

Snapper 84005575

AXLE, Rear

$96.99

$

Usually ships in 2-12 days

0

36

Snapper 84005574

AXLE, Front

$

$

Currently unavailable

37

Snapper 707720

SCREW, Hi-Lo Thread, #12 x 5/8

$6.49

$

Usually ships in 2-12 days

0

38

Snapper 709237

Nut, Hex, Flanged 1/4-20

$6.99

$

Usually ships in 2-12 days

0

39

Snapper 84005573

CAPSCREW

$13.99

$

Usually ships in 2-12 days

0

40

Snapper 84005986

WHEEL ASSEMBLY, Front

$

$

Currently unavailable

41

Snapper 84005572

GEAR, Drive

$17.99

$

Usually ships in 2-12 days

0

44

Snapper 84005571

BELT, Drive

$23.99

$

In Stock, only 1 left!

0

55

Snapper 707729

SPRING, Tension

$9.99

$

Usually ships in 2-12 days

0

57

Snapper 709088

NUT, Lock Flange, 3/8-16 UNC

$8.99

$

In Stock, only 3 left!

0

58

Snapper 84005570

BOLT

$13.99

$

Usually ships in 2-12 days

0

59

Snapper 707730

BRACKET, Support

$6.49

$

Usually ships in 2-12 days

0

85

BRACKET, support

$

$

Not available

86

Snapper 84005568

PULLEY, Idler

$17.99

$

In Stock, only 1 left!

0

87

Snapper 84005567

SCREW

$11.99

$

Usually ships in 2-12 days

0
