SP 105 (7800961-00) - Snapper 21" Walk-Behind Mower, 775 Series Briggs Deck Group Parts Diagram

21" Walk-Behind Mower, 775 Series Briggs

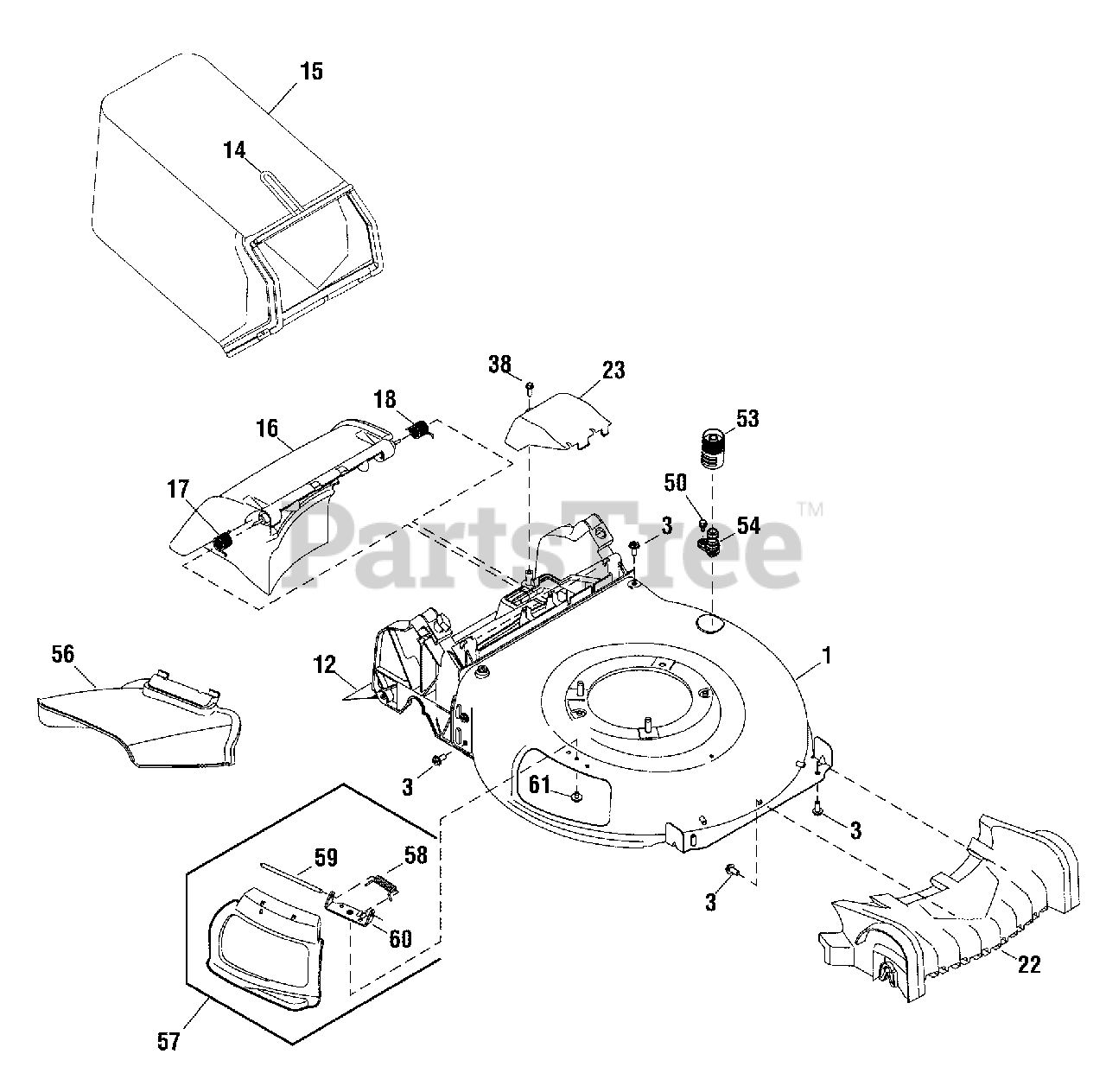

Deck Group Parts Diagram

  • Title

1

Snapper 703544

DECK, 21"

$173.99

$

Usually ships in 2-12 days

0

3

Snapper 703482

SCREW, 5/16-14 x 3/4

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 703499

SHIELD, Trailing

$18.99

$

Usually ships in 2-12 days

0

14

Snapper 703527

FRAME, Grass Bag

$43.99

$

In Stock, Qty 18

0

15

Snapper 703385

BAG, Grass

$137.99

$

In Stock, only 1 left!

0

16

Snapper 703472

DOOR, Rear Discharge

$108.99

$

Usually ships in 2-12 days

0

17

Snapper 705878

SPRING, Torsion, RH

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 705879

SPRING, Torsion, LH

$14.99

$

Usually ships in 2-12 days

0

22

Snapper 703509

COVER, Front

$80.99

$

In Stock, only 1 left!

0

23

Snapper 703506

COVER, Transmission

$19.99

$

Usually ships in 2-12 days

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

50

Snapper 703521

BOLT, Shoulder, 1/4-20

$11.99

$

Usually ships in 2-12 days

0

53

Snapper 703557

ADAPTER, Water Nozzle

$41.99

$

Usually ships in 2-12 days

0

54

Snapper 703502

NOZZLE, Water

$5.99

$

In Stock, only 2 left!

0

56

Snapper 703377

CHUTE, Side Discharge

$49.99

$

In Stock, only 2 left!

0

57

Snapper 703556

MULCH PLUG

Note: (Includes Ref. Nos. 58, 59 & 60)

$262.99

$

Usually ships in 2-12 days

0

58

Snapper 703517

SPRING, Torsion

$13.99

$

In Stock, Qty 5

0

59

Snapper 703529

PIN, Hinge

$10.99

$

In Stock, only 3 left!

0

60

Snapper 703538

BRACKET, Chute Deflector

$9.49

$

In Stock, only 3 left!

0

61

Snapper B4300GS

SCREW, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0
