SP 105 (1696628-00) (12ALC3B3707) - Snapper 21" Walk-Behind Mower, 775 Series Briggs Handle Group Parts Diagram

21" Walk-Behind Mower, 775 Series Briggs

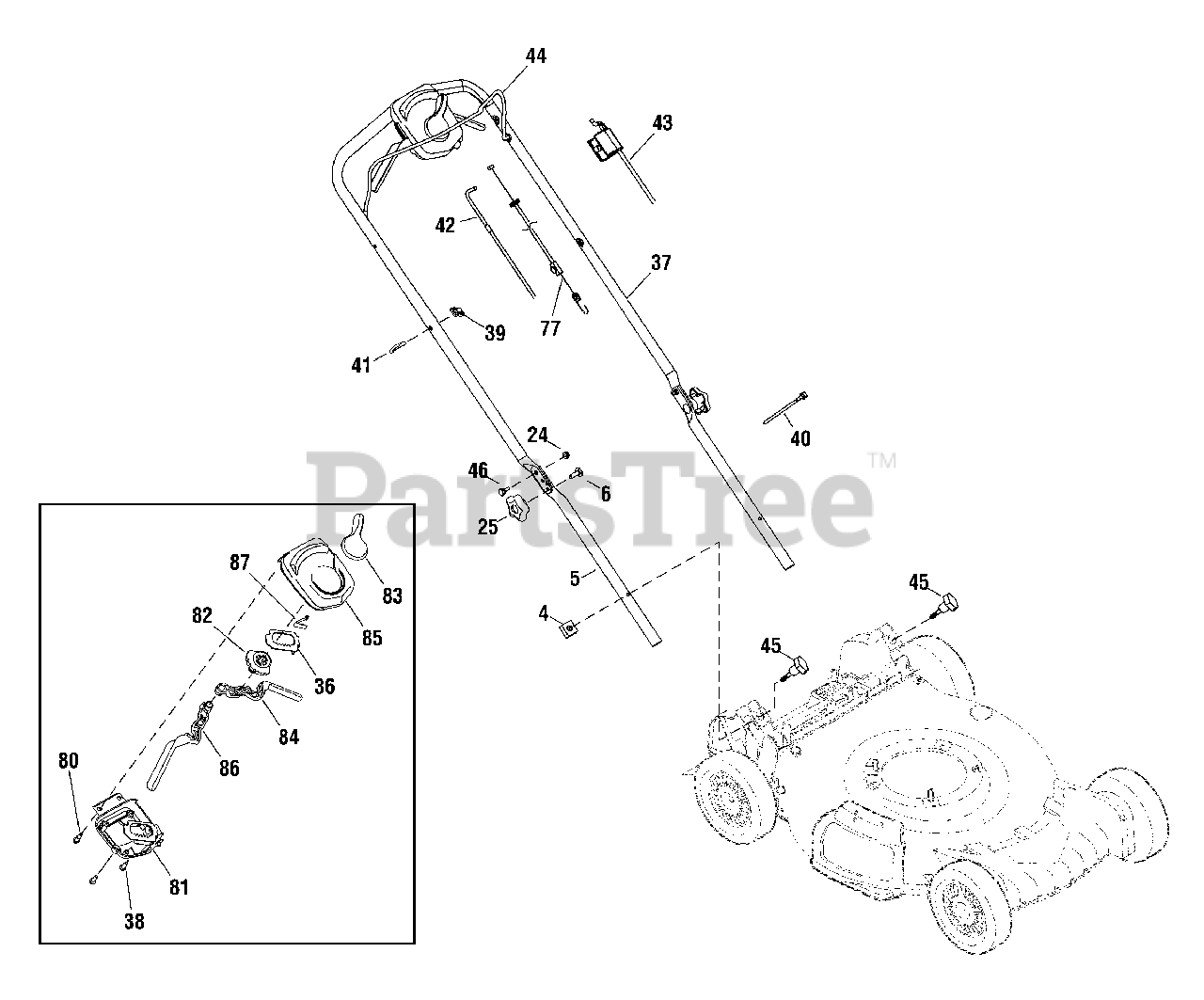

Handle Group Parts Diagram

  • Title

4

Snapper 703486

NUT, Square, 1/4-20

$10.99

$

In Stock, only 1 left!

0

5

Snapper 703530

HANDLE, Lower

$30.99

$

Usually ships in 2-12 days

0

6

Snapper 703483

BOLT, Carriage, 5/16-18 x 1, GR5

$3.99

$

In Stock, only 3 left!

0

24

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

25

Snapper 1101453MA

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 705881

PLATE, Cable Adjust

$10.99

$

Usually ships in 2-12 days

0

37

Snapper 707907

HANDLE, Upper

$121.99

$

Usually ships in 2-12 days

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

39

Snapper 1101222MA

KNOB, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

40

Snapper 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

41

Snapper 703485

GUIDE, Rope

$6.99

$

Usually ships in 2-12 days

0

42

Snapper 705883

CABLE, Drive

$52.99

$

In Stock, only 1 left!

0

43

Snapper 703561

CABLE, OPC Engine Brake

$28.99

$

In Stock, only 1 left!

0

44

Snapper 707909

BAIL, Blade Control

$100.99

$

Usually ships in 2-12 days

0

45

Snapper 707910

NUT, Wing

$13.99

$

Usually ships in 2-12 days

0

46

Snapper 703522

BOLT, Shoulder, 1/4-20

$8.99

$

In Stock, Qty 11

0

77

Snapper 705888

CABLE, Speed Adjustment

$48.99

$

Usually ships in 2-12 days

0

80

Snapper 705891

SCREW, Shoulder, 1/4-15 x 1

$5.99

$

In Stock, only 1 left!

0

81

Snapper 705892

HOUSING, Lower

$25.99

$

Usually ships in 2-12 days

0

82

Snapper 705893

ACTUATOR, Speed Adjust

$10.99

$

Usually ships in 2-12 days

0

83

Snapper 705894

LEVER, Speed Select

$10.99

$

Usually ships in 2-12 days

0

84

Snapper 705895

LEVER, Control, LH

$11.99

$

Usually ships in 2-12 days

0

85

Snapper 705896

HOUSING, Upper

$31.99

$

Usually ships in 2-12 days

0

86

Snapper 705897

LEVER, Control, RH

$12.99

$

Usually ships in 2-12 days

0

87

Snapper 705898

SPRING

$5.49

$

Usually ships in 2-12 days

0
