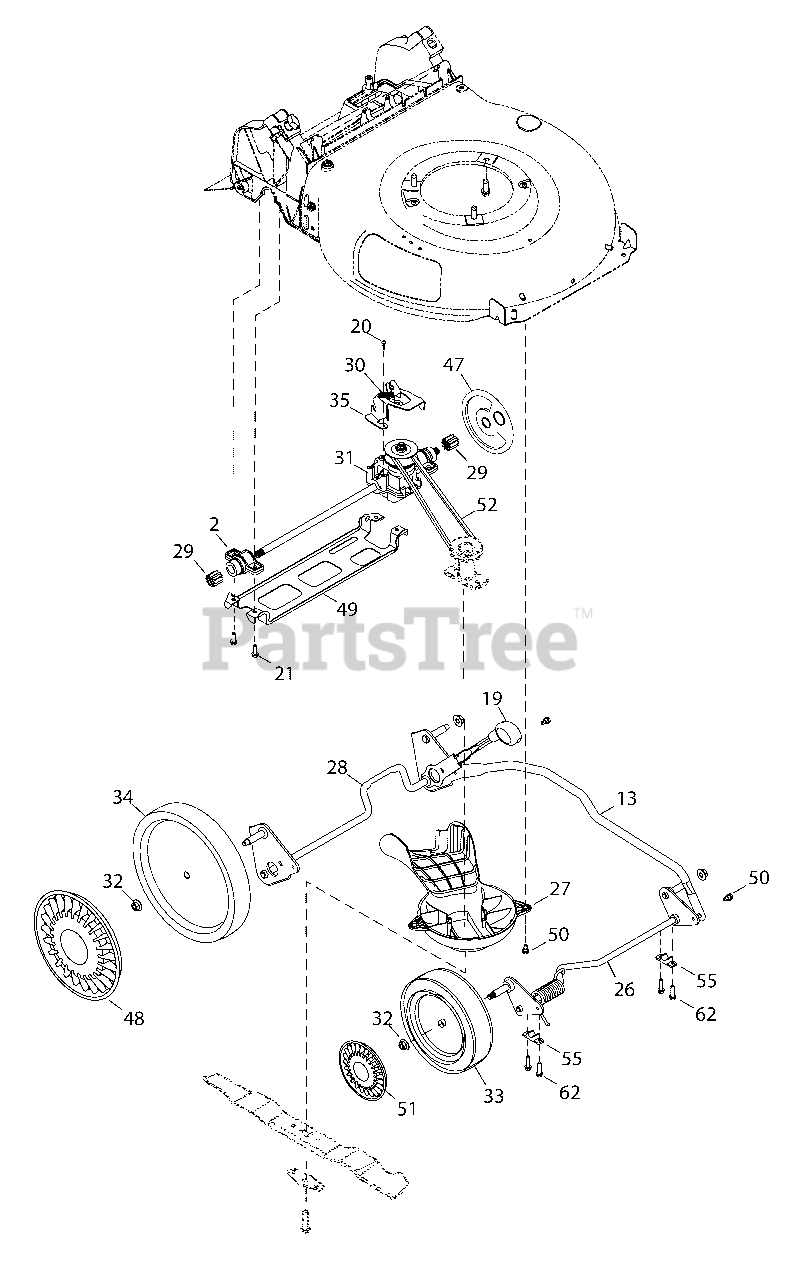

SP 100 (1696702-00) - Snapper 21" Walk-Behind Mower, Variable Speed, 775 Series Briggs Drive Group Parts Diagram

21" Walk-Behind Mower, Variable Speed, 775 Series Briggs

Drive Group Parts Diagram

  • Title

2

Snapper 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

13

Snapper 708082

CROSS BRACKET

$77.99

$

Usually ships in 2-12 days

0

19

Snapper 703488

KNOB, Adjustment Lever

$17.99

$

Usually ships in 2-12 days

0

20

Snapper 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

21

Snapper 7900023SM

CAPSCREW, Hex Head Flange Taptite, 1/4-15 X 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 3 left!

0

26

Snapper 770513

AXLE ASSEMBLY, Front

$63.99

$

Usually ships in 2-12 days

0

27

Snapper 703471

BAFFLE, Engine

$52.99

$

Usually ships in 2-12 days

0

28

Snapper 703551

AXLE ASSEMBLY, Rear

$82.99

$

Usually ships in 2-12 days

0

29

Snapper 703554

GEAR, 9T

$7.99

$

Usually ships in 2-12 days

0

30

Snapper 703516

SPRING, Extension, 2.405

$7.99

$

Usually ships in 2-12 days

0

31

Snapper 705880

TRANSMISSION

$235.99

$

In Stock, only 1 left!

0

32

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Snapper 703380

WHEEL, Front

$60.99

$

In Stock, only 1 left!

0

34

Snapper 703378

WHEEL, Rear

$83.99

$

Usually ships in 2-12 days

0

35

Snapper 703540

BRACKET, Transmission

$19.99

$

Usually ships in 2-12 days

0

47

Snapper 707952

COVER, Wheel, Dust

$65.99

$

Usually ships in 2-12 days

0

48

Snapper 707929

HUBCAP, Rear, 11" Grey

$34.99

$

Usually ships in 2-12 days

0

49

Snapper 703542

BRACKET, Rear Support

$26.99

$

Usually ships in 2-12 days

0

50

Snapper 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

51

Snapper 707911

HUBCAP, Front, 8" Grey

$20.99

$

Usually ships in 2-12 days

0

52

Snapper 703374

V-BELT, 3L, 31.25"

$68.99

$

In Stock, only 2 left!

0

55

Snapper 703524

BUSHING, Bearing, Front Crossbar

$10.99

$

Usually ships in 2-12 days

0

62

Snapper 1751399YP

SCREW, Self Tapping, 1/4-15 x 1-1/4

$4.49

$

In Stock, only 3 left!

0
