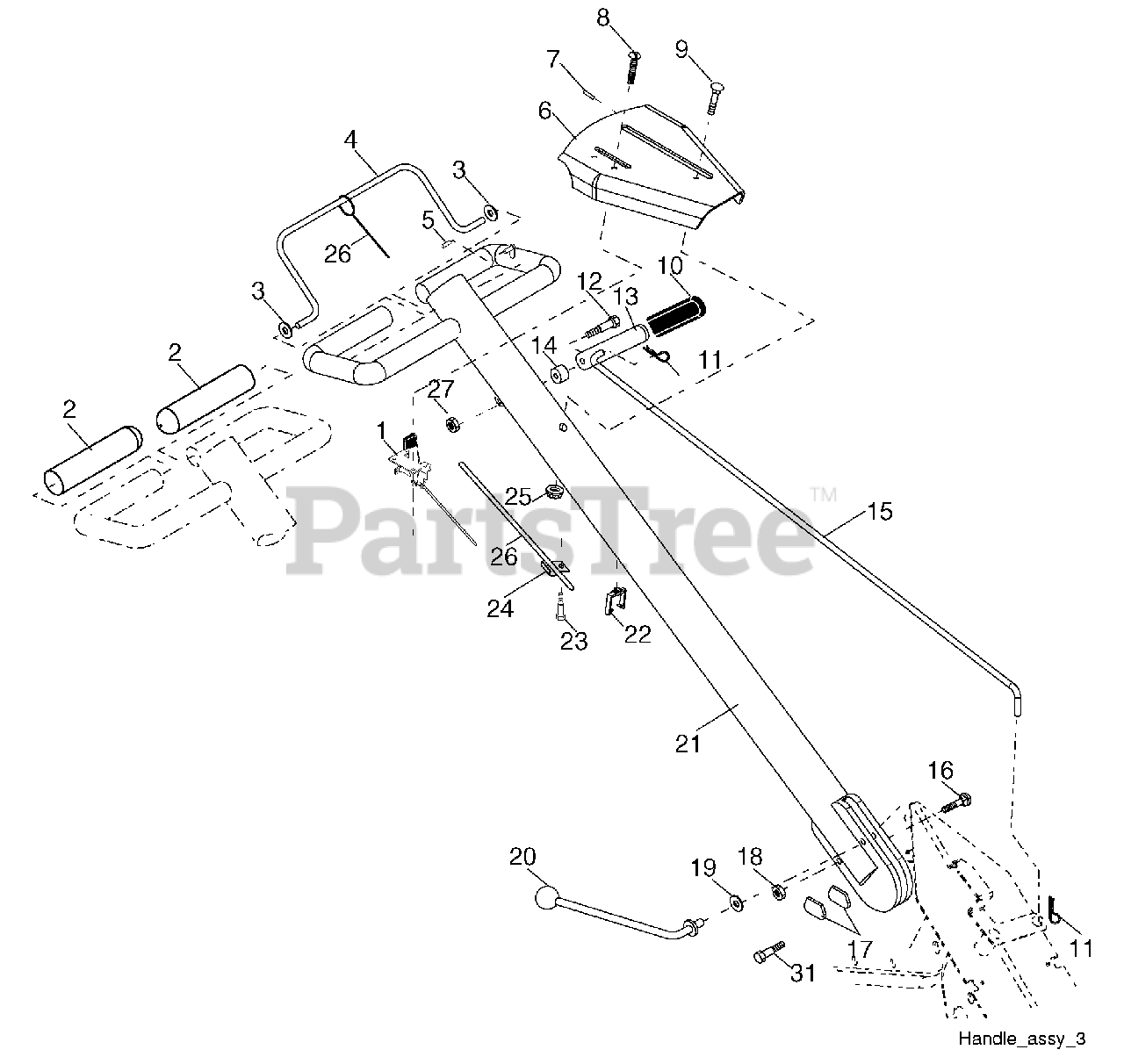

SO R550 - Statesman Tiller (2006-05) (Southern States) Handle Assembly Parts Diagram

Tiller

Handle Assembly Parts Diagram

  • Title

1

Electrolux/AYP 189482

Throttle, Control
(Superseded to 532189482)

$47.99

$

In Stock, Qty 11

0

2

Electrolux/AYP 141406

Grip, Handle
(Superseded to 532141406)

$9.49

$

In Stock, only 3 left!

0

3

Electrolux/AYP 110673X

Grommet, Handle
(Superseded to 532110673)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 127254X

Bar, Drive Control Assembly
(Superseded to 532127254)

$22.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 6712J

Cap, Vinyl
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 188403X021

Panel, Control

$

$

Not available

7

Electrolux/AYP 110641X

Bushing, Split

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 17720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 72010520

Bolt, 5/16-18 x 2-1/2
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 110646X

Handle, Grip
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 81328

Bolt, Shoul der
(Superseded to 532081328)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 187497

Handle, Shift
(Superseded to 532187497)

$

$

Not available

14

Electrolux/AYP 109313X

Grommet, Rubber
(Superseded to 532109313)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110702X

Rod, Shift
(Superseded to 532110702)

$20.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 72110608

Bolt 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 109229X

Lock, Handle
(Superseded to 532109229)

$7.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 109228X

Lever, Lock, Handle
(Superseded to 532109228)

$13.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 150628

Handle, Assemble
(Superseded to 584383101)

$

$

Not available

22

Electrolux/AYP 165197

Clip, Plastic, Cable
(Superseded to 532165197)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 86777

Screw, Hex, Washer Hd, Slotted #10-24 x 1/2
(Superseded to 532086777)

$

$

Not available

24

Electrolux/AYP 9484R

Clip
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

25

Electrolux/AYP 73970500

Locknut, Hex, Flange
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 110675X

Clutch, Cable
(Superseded to 532110675)

$18.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 73900400

Nut, Lock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 150696

Bolt, Pivot
(Superseded to 532150696)

$7.49

$

In Stock, only 3 left!

0
