SO GT 26H54 (960420015-00) - Statesman Garden Tractor (2006) (Southern States) Wheels And Tires Parts Diagram

Garden Tractor

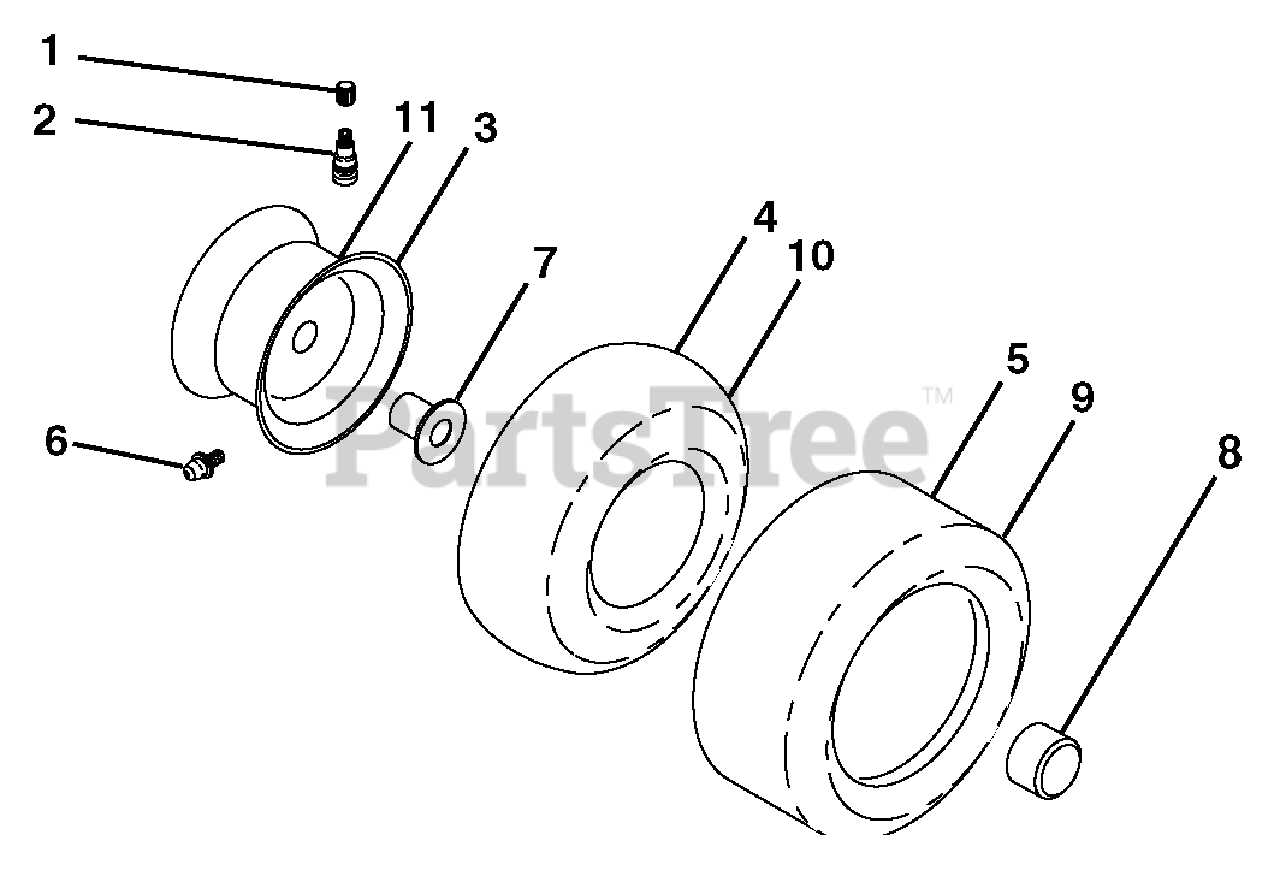

Wheels And Tires Parts Diagram

  • Title
1

Electrolux/AYP 59192

Cap, Valve, Tire
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 106228X624

Rim Assembly, Front
(Superseded to 583679101)

$109.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 59904

Tube, Front
(Superseded to 532059904)

Note: (Service Item Only)

$37.99

$

In Stock, Qty 9

0

5

Electrolux/AYP 106230X

Tire, Front
(Superseded to 532106230)

$

$

Not available

6

Electrolux/AYP 278H

Fitting, Grease
(Superseded to 532000278)

Note: (Front Wheel Only)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 9040H

Bearing, Flange
(Superseded to 532009040)

Note: (Front Wheel Only)

$7.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 104757X428

Cap, Axle
(Superseded to 532104757)

Note: (Front Wheel Only)

$4.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 184708

Tire, Rear
(Superseded to 532184708)

$265.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 7152J

Tube, Rear
(Superseded to 532007152)

Note: (Service Item Only)

$74.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 400404X624

Rim Assembly, Rear

$96.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 144334

Sealant, Tire (10 oz. Tube)
(Superseded to 532144334)

$

$

Not available
