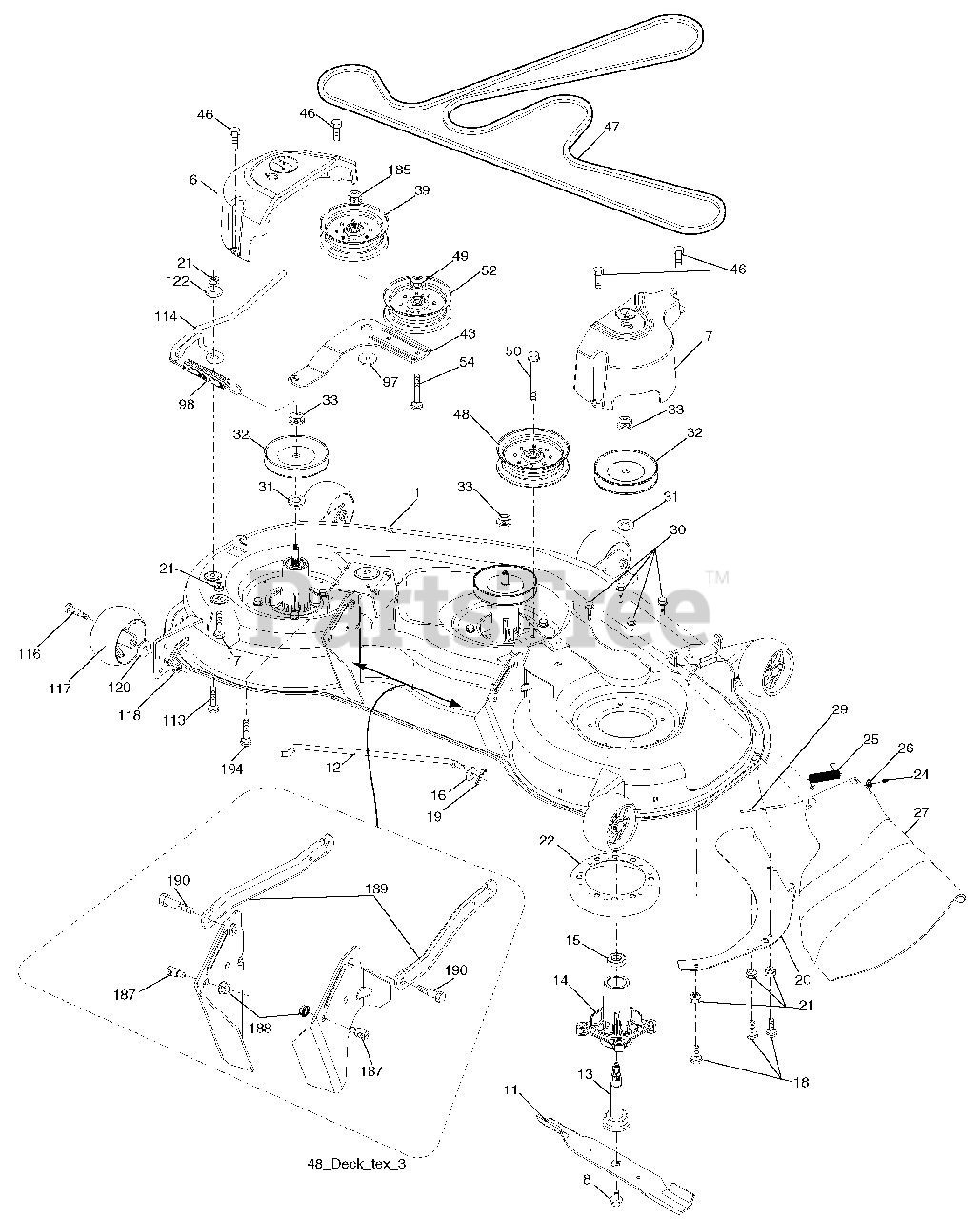

SO GT 22H48 - Statesman Garden Tractor (2006-03) (Southern States) Mower Deck Parts Diagram

Garden Tractor

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 197216

Deck Weldment Mower

$

$

Not available

6

Electrolux/AYP 197248

Cover Mandrel LH
(Superseded to 532197248)

$34.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 199102

Cover Mandrel RH
(Superseded to 532199102)

$20.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 174365

Bolt 7/16 Asm. Blade
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 180054

Blade High Lift
(Superseded to 532180054)

$22.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 173921

Blade Mulching
(Superseded to 532173921)

$22.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 404851

Rod Anti-Sway
(Superseded to 532404851)

$26.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 187291

Shaft Asm. w/Lower Bearing
(Superseded to 597023501)

$28.99

$

In Stock, Qty 14

0

14

Electrolux/AYP 187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 19131312

Washer 13/23 x 13/16 x 1 2 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 72110505

Bolt Carr. 5/16-18 x 5/8
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 72140505

Bolt RdHd 5/16-18 unc x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 194208

Pin Cotter 5/16 Bowtie Lock
(Superseded to 532194208)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 174378

Baffle Vortex
(Superseded to 532174378)

$14.99

$

Usually ships in 3-10 days

0

21

Murray 73680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 174493

Stripper Mandrel Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 105304X

Cap Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 178102

Spring, Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 180655X428

Defl ector Shield
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

29

Electrolux/AYP 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw, Thdroll Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 187690

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Murray 153532

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 400234

Nut, Flg. Top Lock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

39

Electrolux/AYP 197380

Pulley, Idler, Stationary
(Superseded to 532196104)

$43.99

$

In Stock, Qty 14

0

43

Electrolux/AYP 196065

Arm, Idler
(Superseded to 532196065)

$15.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 197242

Belt Drive Deck
(Superseded to 593773401)

$62.99

$

In Stock, Qty 7

0

48

Electrolux/AYP 193197

Pulley Idler Primary
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

49

Murray 73900600

Nut, Lock Flg. 3/8-16 unc

$

$

Not available

50

Electrolux/AYP 17490636

Screw 3/8-16 x 1-1/4 unc
(Superseded to 817490636)

$2.49

$

In Stock, Qty 5

0

52

Electrolux/AYP 197379

Pulley Idler
(Superseded to 532196106)

$39.99

$

In Stock, Qty 10

0

54

Electrolux/AYP 72110612

Bolt Carriage 3/8-16 x 1-1/2 Gr.5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 178515

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 196105

Spring Drive
(Superseded to 532196105)

$7.99

$

In Stock, Qty 6

0

113

Electrolux/AYP 72110508

Bolt Rdhd Sqnk 5/16-18 x 3/4
(Superseded to 872110508)

$4.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 197451

Rod Tension Relief
(Superseded to 532197451)

$18.99

$

In Stock, only 1 left!

0

116

Electrolux/AYP 193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 174873

Gauge Wheel
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 73930600

Nut 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 19132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 187557

Bushing Tension Relief
(Superseded to 532187557)

$9.49

$

In Stock, only 1 left!

0

185

Electrolux/AYP 73900700

Nut Lock Flange 7/16-14 Gr. 5
(Superseded to 873900700)

$7.49

$

In Stock, Qty 12

0

187

Electrolux/AYP 195161

Stud Fastener w/"D" Anti-Rotation
(Superseded to 532195161)

$

$

Not available

188

Electrolux/AYP 73900500

Nut Lock Hex Flange
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

189

Electrolux/AYP 195185

Arm Susp. Mower Rear
(Superseded to 532195185)

$18.99

$

Usually ships in 3-10 days

0

190

Electrolux/AYP 196539

Bolt Shoulder
(Superseded to 532196539)

$7.49

$

In Stock, Qty 20+

0

194

Electrolux/AYP 72140716

Bolt Carr Sqnk 3/8-16 x 2-1/4
(Superseded to 874490736)

$13.99

$

In Stock, only 4 left!

0

194

Electrolux/AYP 187292

Mandrel Asm. Service
(Superseded to 587820301)

Note: (Includes Key Nos. 13-15 and 33)

$56.99

$

In Stock, Qty 8

0

194

Electrolux/AYP 199859

Replacement Mower, Complete
(Superseded to 583255101)

$1139.99

$

Usually ships in 3-10 days

0
