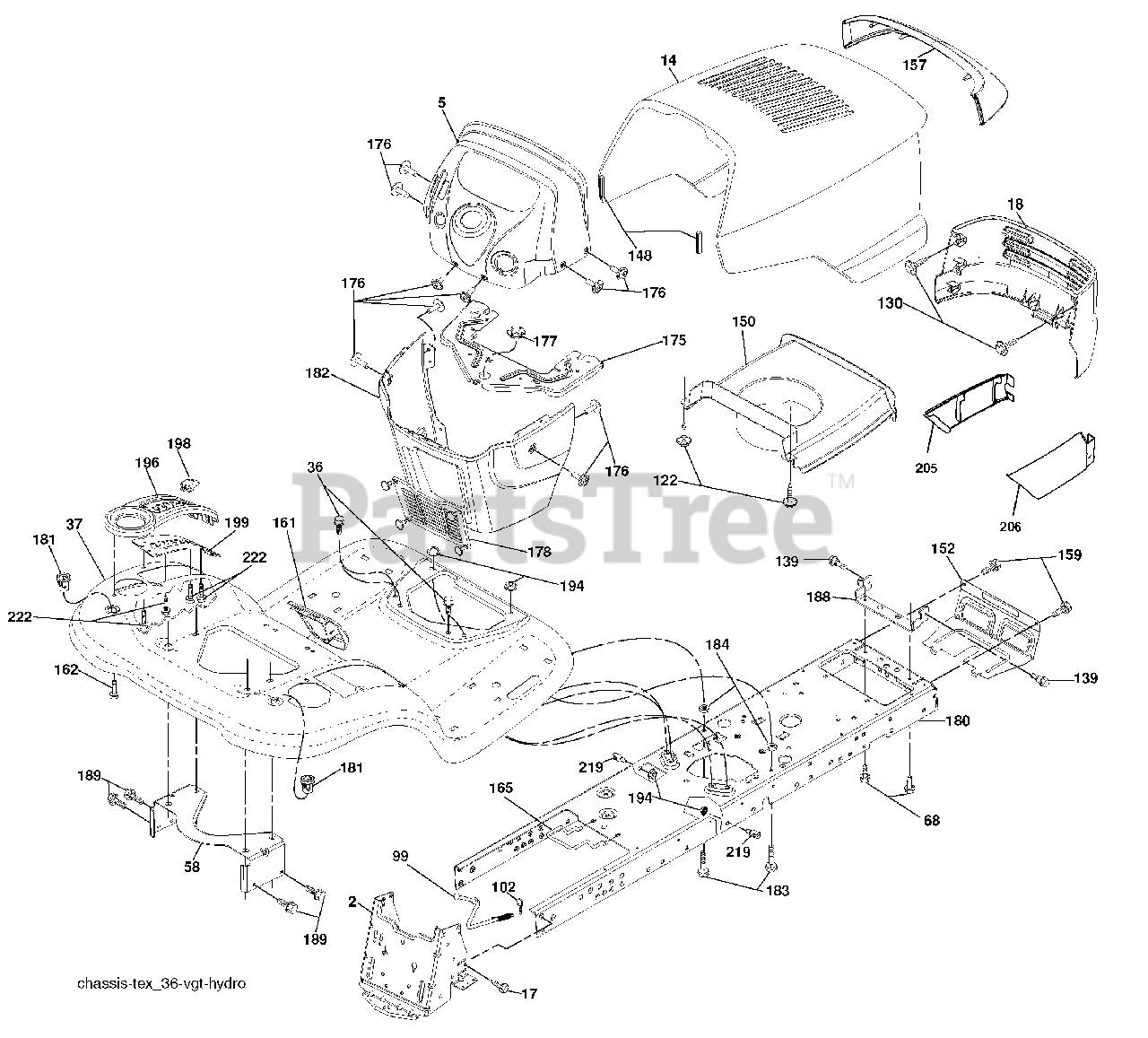

SO GT 22H48 - Statesman Garden Tractor (2006-03) (Southern States) Chassis Parts Diagram

Garden Tractor

Chassis Parts Diagram

  • Title

$

$

Not available

5

Electrolux/AYP 195102X428

Dash
(Superseded to 532411400)

$78.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 175260X505

Hood
(Superseded to 532181273)

$30.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

36

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 400009X505

Fender
(Superseded to 532443816)

$241.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 194314

Bracket Fender
(Superseded to 532194314)

$27.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 401996

Rod Bypass Asm.

$

$

Not available

102

Electrolux/AYP 4497H

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

122

Electrolux/AYP 192512

Screw WSHD Hex 10-32 x 5/8
(Superseded to 532192512)

$5.99

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

139

Electrolux/AYP 171873

Bolt Shoulder 5/16-18
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

148

Electrolux/AYP 164655

Bumper
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 175351

Duct Heat Hood
(Superseded to 532175351)

$40.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 194329

Shield Browning/Debris
(Superseded to 532194329)

$20.99

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 179761

Lens Bar
(Superseded to 583125001)

$

$

Not available

159

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

161

Electrolux/AYP 193097X428

Console Fuel Window
(Superseded to 532411879)

$8.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 194330

Bracket Support Tank
(Superseded to 532194330)

$20.99

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 193236

Crossmember

$15.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 400776

Screw #10-24 x 5/8 Rnd Qudrx
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 195227

Bushing Steering
(Superseded to 532195227)

$6.99

$

In Stock, Qty 15

0

178

Electrolux/AYP 195651

Cargo Asm. Net
(Superseded to 532195651)

$9.99

$

Usually ships in 3-10 days

0

180

$94.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 532404796)

$

$

Not available

182

Electrolux/AYP 192551

Dash Lower
(Superseded to 532192551)

$60.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18 unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 195780

Spacer Fender
(Superseded to 532195780)

$7.49

$

Usually ships in 3-10 days

0

188

Electrolux/AYP 194316

Bracket Pickoff Hood
(Superseded to 583215901)

$6.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 15

0

194

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

196

Electrolux/AYP 193098X428

Console Asm. Deck Lift
(Superseded to 584463501)

$54.99

$

In Stock, only 1 left!

0

198

Electrolux/AYP 197300X505

Indicator Deck Lift
(Superseded to 532411881)

$15.99

$

Usually ships in 3-10 days

0

199

Electrolux/AYP 196377

Plate Deck Lift
(Superseded to 532196377)

$24.99

$

Usually ships in 3-10 days

0

205

Electrolux/AYP 169848X428

Skirt Hood LH
(Superseded to 532187112)

$

$

Not available

206

Electrolux/AYP 169847X428

Skirt Hood RH
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0

219

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

222

Electrolux/AYP 137729

Screw thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0
