SO F555 A - Statesman Tiller (2004) (Southern States) Transmission Parts Diagram

Tiller

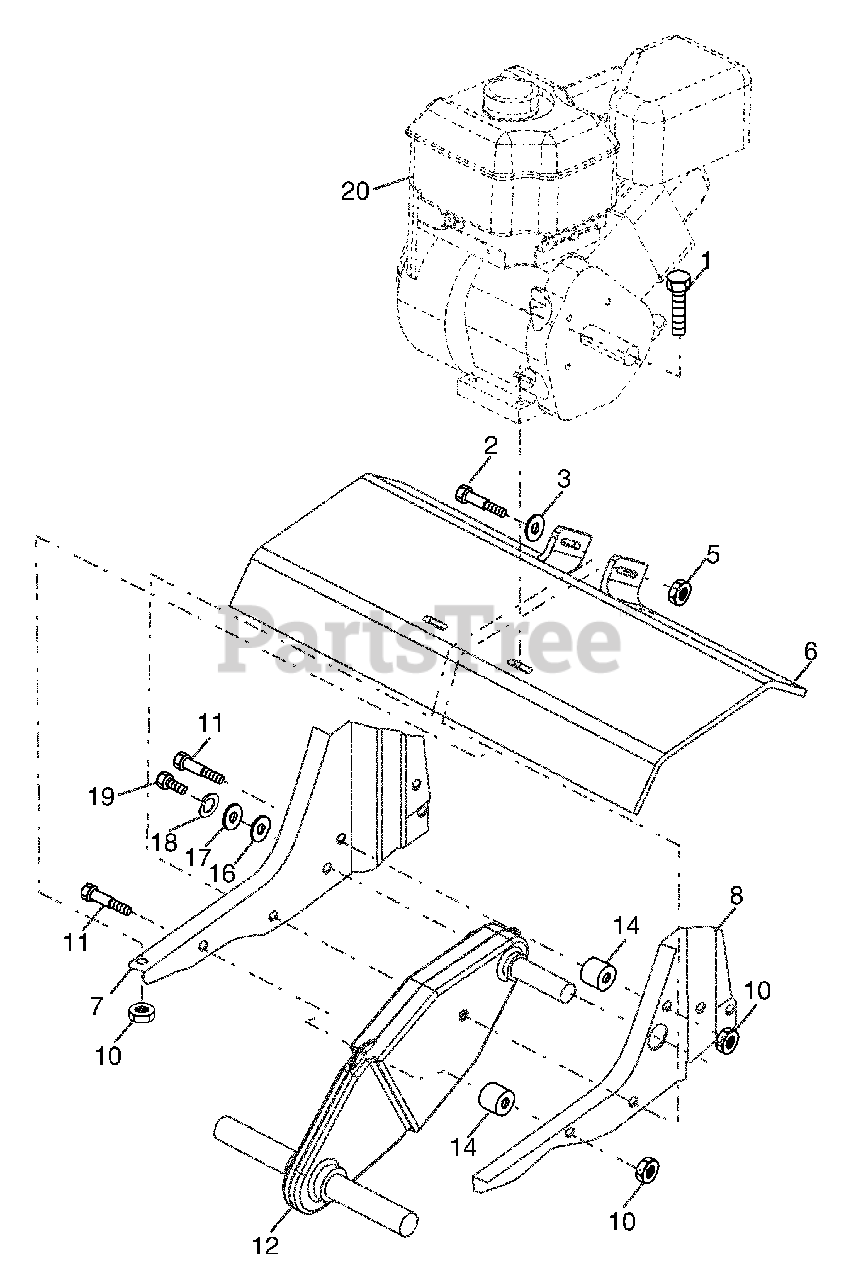

Transmission Parts Diagram

  • Title

1

Electrolux/AYP 74760524

Bolt, Hex 5/16-18 x 1-1/2 Gr. 2

$2.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 74780652

Bolt, Hex, Fin 3/8-16 x 3-1/4
(Superseded to 583614901)

$2.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 19131311

Washer 13/32 x 13/16 x 11
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

5

Murray 73900600

Nut Lock Flg 3/8-16 unc

$

$

Not available

6

Electrolux/AYP 9057R505

Shield, Tine
(Superseded to 532405110)

$

$

Not available

7

Electrolux/AYP 188195

Bracket, Engine, R.H.
(Superseded to 532188195)

$

$

Not available

8

Electrolux/AYP 165834

Bracket, Engine, L.H.
(Superseded to 584325101)

$31.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 73970500

Nut Lock Hex Flg
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 187912

Bolt, Shoulder
(Superseded to 532187912)

$5.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 176112

Transmission
(Superseded to 582194201)

$

$

Not available

14

Electrolux/AYP 9173R

Spacer, Split
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 19091412

Washer 9/32 x 7/8 x 12 Ga.
(Superseded to 582732101)

$

$

Not available

17

Electrolux/AYP 19092016

Washer 9/32 x 1-1/4 x 16 Ga.
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 74610412

Bolt, Hex 1/4-28 x 3/4 Gr. 5
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

20

Engine, Briggs Model 126302

Note: Order parts from engine manufacturer

$

$

Not available
