SO 21H48 YT - Statesman Lawn Tractor (2006-01) (Southern States) Wheels And Tires Parts Diagram

Lawn Tractor

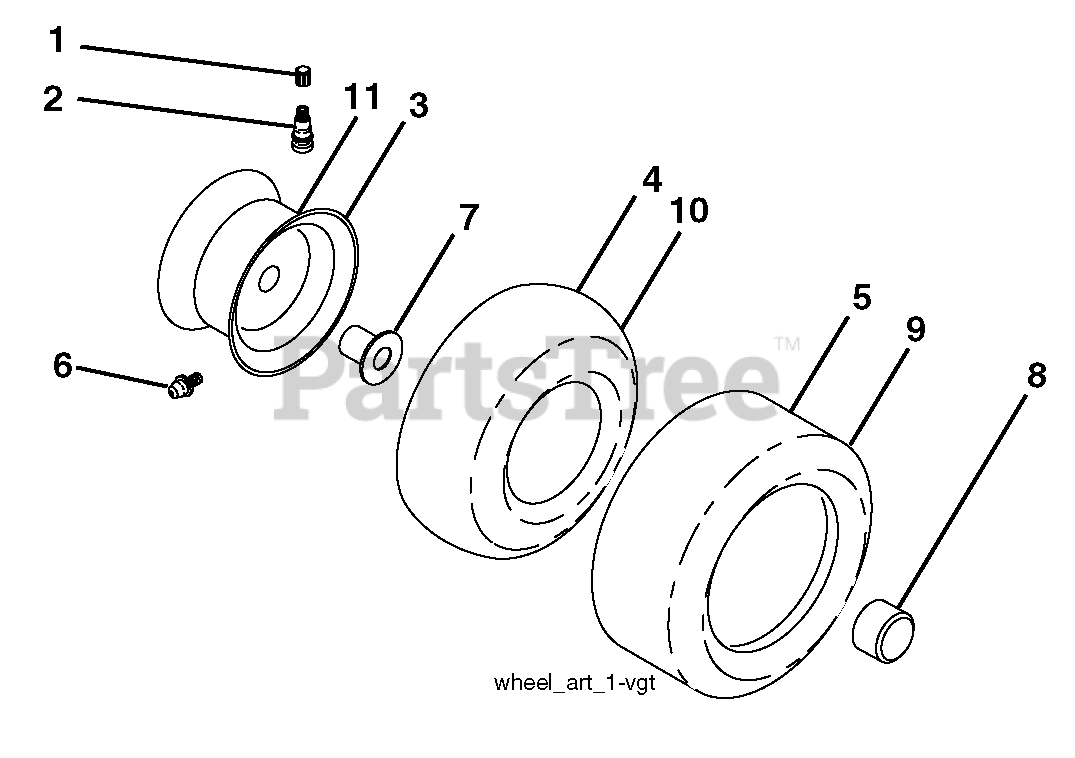

Wheels And Tires Parts Diagram

  • Title
1

Electrolux/AYP 59192

Cap, Valve, Tire
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 106732X624

Rim Assembly, Front
(Superseded to 532106732)

$91.99

$

In Stock, Qty 6

0

4

Electrolux/AYP 59904

Tube, Front
(Superseded to 532059904)

$37.99

$

In Stock, Qty 10

0

5

Electrolux/AYP 106222X

Tire, Front
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 278H

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 9040H

Bearing, Flange
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 104757X428

Cap, Axle
(Superseded to 532104757)

Note: (Front Wheel Only)

$4.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 138468

Tire, Rear
(Superseded to 532138468)

$121.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 7152J

Tube, Rear
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 106108X624

Rim Assembly, Rear
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 144334

Sealant, Tire (10 oz. Tube)
(Superseded to 532144334)

$

$

Not available
