SO 20H42 YT - Statesman Lawn Tractor (2006-04) (Southern States) Mower Lift Parts Diagram

Lawn Tractor

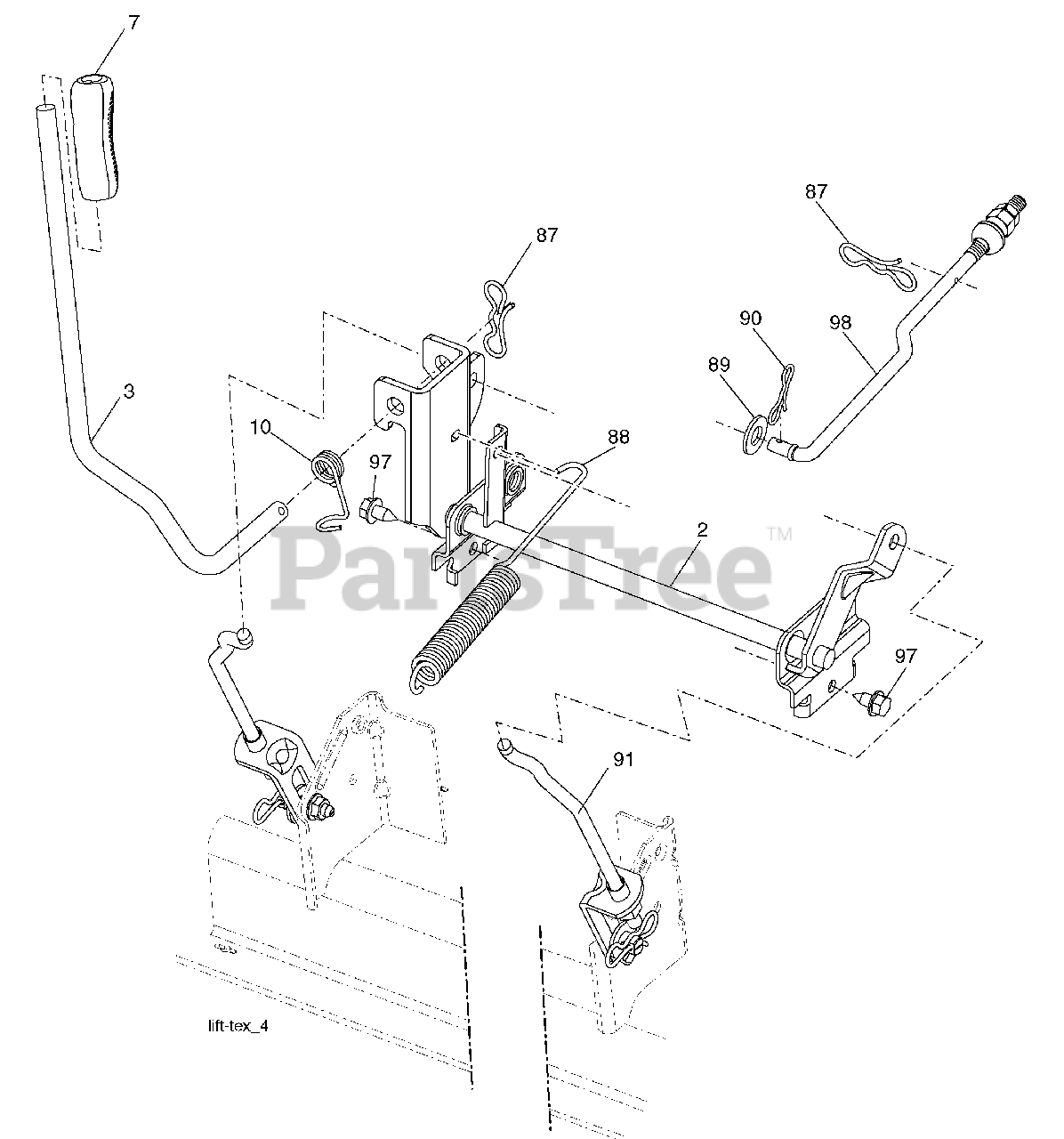

Mower Lift Parts Diagram

  • Title
2

Electrolux/AYP 195223

Shaft Asm., Lift
(Superseded to 532422027)

$80.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 195231

Lever Asm., Lift Rh
(Superseded to 594018001)

$20.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 196492

Grip, Lever
(Superseded to 532411555)

$9.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 196314

Spring Torsion
(Superseded to 532196314)

$6.49

$

In Stock, only 2 left!

0

87

Electrolux/AYP 194209

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 532194209)

$3.99

$

In Stock, only 3 left!

0

88

Electrolux/AYP 195303

Spring Lift Assist
(Superseded to 532410710)

$11.99

$

In Stock, Qty 6

0

89

Electrolux/AYP 19191912

Washer Clear Zinc
(Superseded to 819191912)

$6.49

$

In Stock, Qty 10

0

90

Electrolux/AYP 194208

Pin Cotter 5/16 Bow Tie Lock
(Superseded to 532194208)

$3.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 195181

Link Asm. Lift Rear
(Superseded to 589464807)

$18.99

$

In Stock, only 1 left!

0

97

Electrolux/AYP 17060612

Screw 3/8-16 x .75 Smgml Tap/ R.Z
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 195270

Link Lift Susp. Front Mower
(Superseded to 581506903)

$11.99

$

In Stock, Qty 11

0
