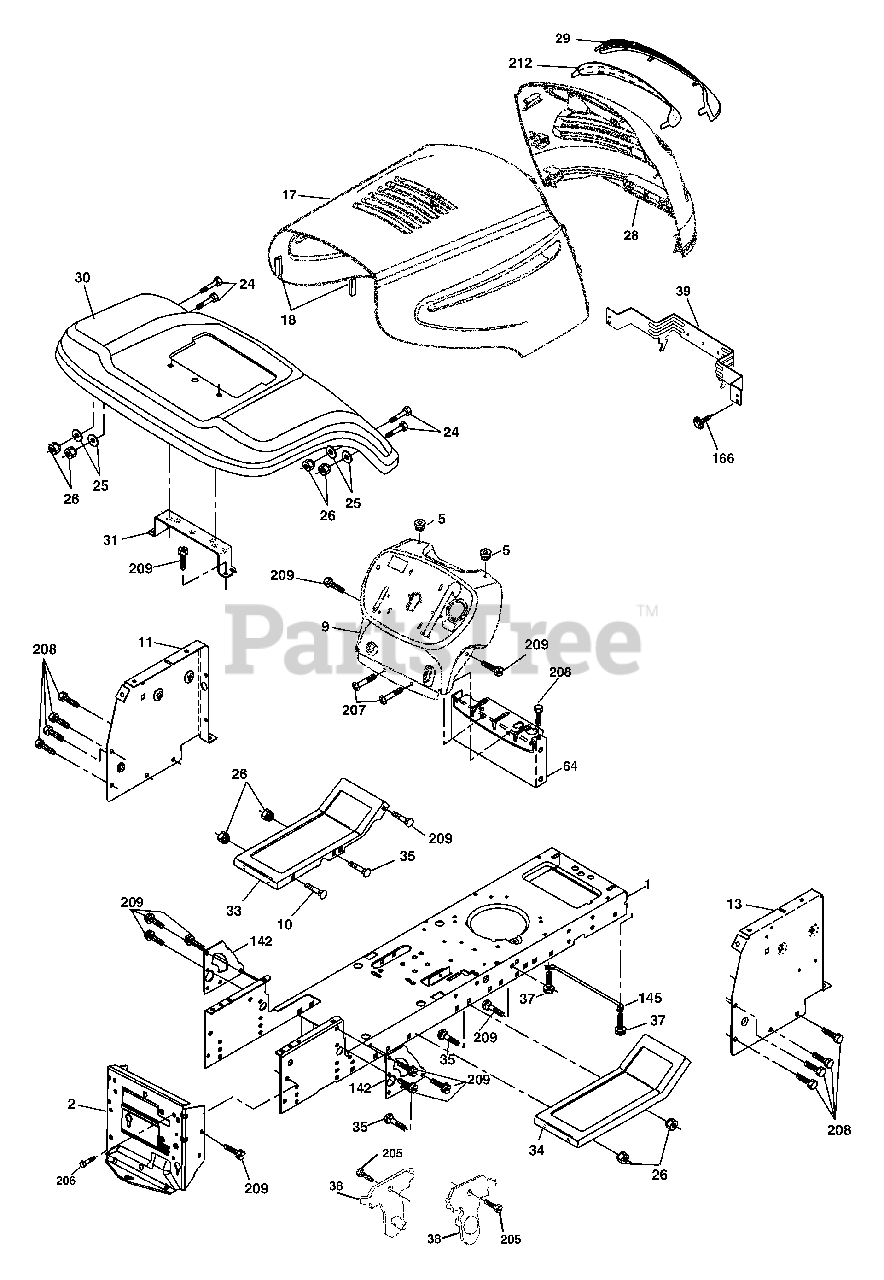

SO 17542ST A - Statesman Lawn Tractor (2004) (Southern States) Chassis And Enclosures Parts Diagram

Lawn Tractor

Chassis And Enclosures Parts Diagram

  • Title

1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 168337X012

Dash
(Superseded to 168337012)

$

$

Not available

10

Murray 72140608

Bolt Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 174996

Panel Dash Lh
(Superseded to 532174996)

$

$

Not available

13

Electrolux/AYP 179174X010

Panel Dash Rh

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 183394X505

Hood
(Superseded to 532441532)

$96.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

Bumper Hood
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 183826

Grille
(Superseded to 583128201)

Note: (Includes #'s 29 and 212)

$

$

Not available

29

Electrolux/AYP 183824X599

Lens
(Superseded to 532189837)

$

$

Not available

30

Electrolux/AYP 169468X505

Fender

$65.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

Bracket Support Fender
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 179716X505

Footrest Pnt Lh
(Superseded to 532181164)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 179717X505

Footrest Pnt Rh
(Superseded to 532181193)

$

$

Not available

35

Electrolux/AYP 72110606

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm. Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 174714

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 154798

Dash Lower STLT
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

166

Electrolux/AYP 171875

Screw HWHD Hi-Lo #13-16 x 5/8
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

205

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

207

Electrolux/AYP 17670508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hex Wsh Thdr. 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

212

Electrolux/AYP 183823

Insert Lens Reflect
(Superseded to 532183823)

$15.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 5479J

Plug Btn Blk .359
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
