Snow Thrower - BCS America 20", 24", 28" Snow Thrower Attachment (1995 & After) Snow Thrower Frame Version 1 (SN: 132624 - 359219) Parts Diagram

Snow Thrower Attachment

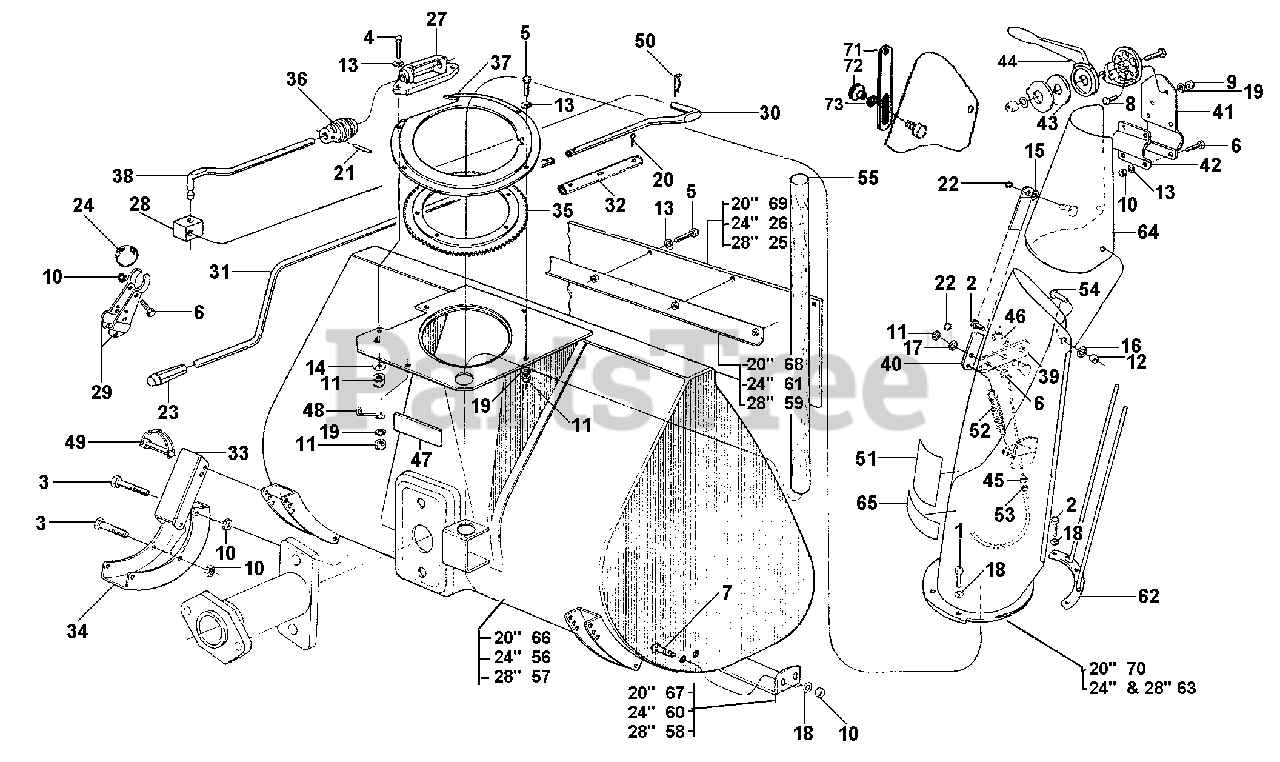

Snow Thrower Frame Version 1 (SN: 132624 - 359219) Parts Diagram

  • Title

1

BCS America 311.11090

SCREW TE M6X10 UNI 5739-5S

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.11091

SCREW TE M6X14

$1.49

$

In Stock, only 4 left!

0

3

BCS America 311.11101

SCREW TE M6X55

$1.49

$

In Stock, Qty 6

0

4

BCS America 311.12089

SCREW M6X25

$1.49

$

In Stock, only 3 left!

0

5

BCS America 311.12090

SCREW TE M6X16

$0.99

$

In Stock, only 4 left!

0

6

BCS America 311.12093

SCREW M6X20

$0.99

$

In Stock, only 3 left!

0

7

BCS America 311.21558

SCREW M6X16

$1.49

$

In Stock, Qty 5

0

8

BCS America 311.31061

SCREW TSV M6X16 UNI 260-5S

$0.99

$

Usually ships in 5-8 days

0

9

BCS America 312.11060

NUT M6

$0.99

$

In Stock, Qty 8

0

10

BCS America 312.41060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

11

BCS America 312.41061

NUT, SELF LOCKING M6

$0.99

$

Usually ships in 5-8 days

0

12

BCS America 312.41100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

13

BCS America 314.11064

WASHER, FLAT 6.4

$0.99

$

In Stock, Qty 10

0

14

BCS America 314.11066

WASHER, FLAT

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 314.11091

WASHER

$0.99

$

Usually ships in 5-8 days

0

16

BCS America 314.11105

WASHER, FLAT 10.5X21

$1.49

$

In Stock, only 1 left!

0

17

BCS America 314.13064

WASHER, FLAT 6.4

$0.99

$

Usually ships in 5-8 days

0

18

BCS America 314.21064

SUPER WASHER 6 DIN 6796

$1.49

$

Usually ships in 5-8 days

0

19

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

20

BCS America 341.10030

COTTER PIN A 3X20 UNI 1336

$1.49

$

In Stock, only 3 left!

0

21

BCS America 342.13022

PIN, LOCKING SW 3X22 SPIRAL

$1.49

$

In Stock, only 3 left!

0

22

BCS America 352.11060

RETAINING RING

$0.99

$

In Stock, Qty 10

0

23

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

24

BCS America 552.15102

ROD GUIDE

$18.99

$

Usually ships in 5-8 days

0

25

BCS America 552.47778

MUD FLAP 70 CM

$75.99

$

Usually ships in 5-8 days

0

26

BCS America 552.47832

MUD FLAP 60 CM

$68.99

$

In Stock, only 1 left!

0

27

BCS America 552.51822

SCREW SUPPORT

$26.99

$

Usually ships in 5-8 days

0

28

BCS America 561.42548

BLOCK

$22.99

$

Usually ships in 5-8 days

0

29

BCS America 561.47779

GUIDE SUPPORT

$

$

Currently unavailable

30

BCS America 561.47785

FUNNEL CONTROL ROD SHORT

$46.99

$

Usually ships in 5-8 days

0

31

BCS America 561.47786

FUNNEL CONTROL ROD LONG

$47.99

$

Usually ships in 5-8 days

0

32

BCS America 561.47789

CONTROL ROD EXTENSION

$

$

Not available

33

BCS America 561.51815

SLIDE DOG

$29.99

$

Usually ships in 5-8 days

0

34

BCS America 561.51816

SLIDE

$44.99

$

In Stock, only 2 left!

0

35

BCS America 561.51819

GEAR RING

$156.99

$

Usually ships in 5-8 days

0

36

BCS America 56151820

SCREW

$57.99

$

Usually ships in 5-8 days

0

37

BCS America 561.51821

COLLAR

$72.99

$

In Stock, only 1 left!

0

38

BCS America 561.51825

ROD EXTENSION

$39.99

$

Usually ships in 5-8 days

0

39

BCS America 56155170

ROCKER ARM

$11.99

$

Usually ships in 5-8 days

0

40

BCS America 561.55171

FLAP TIEROD

$10.99

$

Usually ships in 5-8 days

0

41

BCS America 561.55179

LEVER SUPPORT

$21.99

$

Usually ships in 5-8 days

0

42

BCS America 56155180

U-BOLT

$13.99

$

Usually ships in 5-8 days

0

43

BCS America 566.55181

RING FOR LEVER

$

$

Currently unavailable

44

BCS America 580.55184

SNOW THROWER HANDLE

$

$

Currently unavailable

45

BCS America 580.42167

END, SHEATH

$2.99

$

In Stock, only 2 left!

0

46

BCS America 58042200

PIN, CABLE CLAMP

$6.49

$

Usually ships in 5-8 days

0

47

BCS America 580.47994

DECAL

$

$

Currently unavailable

48

BCS America 580.48035

GAS SHEATH SUPPORT

$11.99

$

Usually ships in 5-8 days

0

49

BCS America 580.50512

SAFETY PIN

$15.99

$

Usually ships in 5-8 days

0

50

BCS America 580.50533

PIN

$1.99

$

In Stock, only 2 left!

0

51

BCS America 580.51859

FUNNEL STICKER

$3.99

$

Usually ships in 5-8 days

0

52

BCS America 580.55174

FUNNEL SPRING

$23.99

$

Usually ships in 5-8 days

0

53

BCS America 580.55182

ROCKER ARM WIRE AND SHEATH

$32.99

$

Usually ships in 5-8 days

0

54

BCS America 581.49292

SCREW M10X25

$17.99

$

Usually ships in 5-8 days

0

55

BCS America 581.50863

STICK

$21.99

$

Usually ships in 5-8 days

0

56

BCS America 590.47764

SNOW THROWER CRANKCASE 60 CM

$845.99

$

Usually ships in 5-8 days

0

57

BCS America 590.47765

SNOW THROWER CRANKCASE 70 CM

$1031.99

$

Usually ships in 5-8 days

0

58

BCS America 590.47774

BLADE 70 CM

$154.99

$

Usually ships in 5-8 days

0

59

BCS America 590.47776

MUD FLAP STOP 70 CM

$

$

Currently unavailable

60

BCS America 590.47827

BLADE 60 CM

$111.99

$

Usually ships in 5-8 days

0

61

BCS America 590.4783

MUD FLAP STOP 60 CM

$

$

Currently unavailable

62

BCS America 590.51855

FUNNEL GRATE

$58.99

$

Usually ships in 5-8 days

0

63

BCS America 590.55176

SNOW THROWER FUNNEL

$

$

Currently unavailable

64

BCS America 590.55177

FLAP

$247.99

$

Usually ships in 5-8 days

0

65

BCS America 901.007

STICKER " MADE IN ITALY"

$

$

Currently unavailable

66

BCS America 590.59532

SNOW THROWER CRANKCASE 50 CM

$654.99

$

Usually ships in 5-8 days

0

67

BCS America 590.59526

BLADE 50 CM

$78.56

$

Usually ships in 5-8 days

0

68

BCS America 590.59528

MUD FLAP STOP 50 CM

$

$

Currently unavailable

69

BCS America 552.59529

MUD FLAP 50 CM

$

$

Currently unavailable

70

BCS America 590.59540

SNOW THROWER FUNNEL

$390.99

$

Usually ships in 5-8 days

0

71

BCS America 561.59530

CONTROL LEVER - 20

$25.99

$

Usually ships in 5-8 days

0

72

BCS America 552.15132

RING - 20

$32.99

$

Usually ships in 5-8 days

0

73

BCS America 314.11104

WASHER FLAT M10 5X18 - 20

$0.99

$

In Stock, Qty 5

0
