Snow Thrower - BCS America 24", 28", 40" Snow Thrower Attachment (1994 & Before) Snow Thrower Gear Box (SN: 10000 - 42000) Parts Diagram

Snow Thrower Attachment

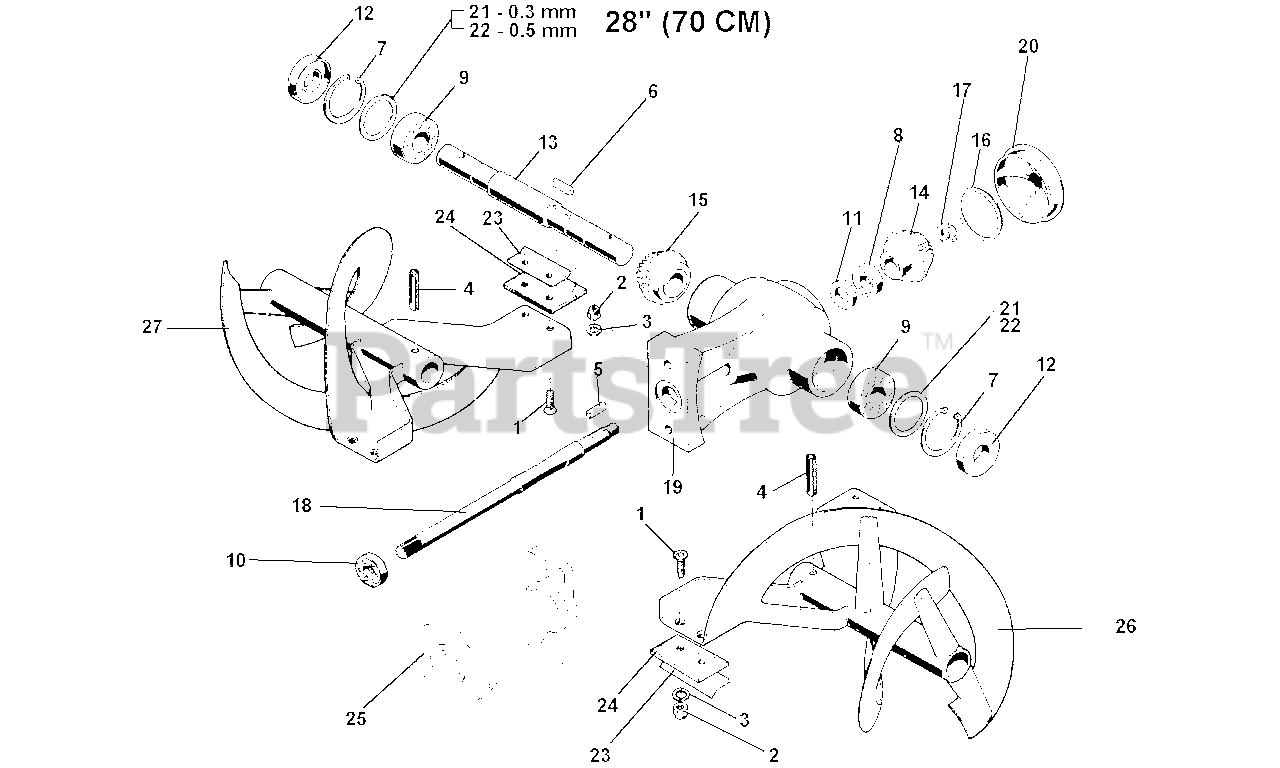

Snow Thrower Gear Box (SN: 10000 - 42000) Parts Diagram

  • Title

1

BCS America 31132570

SCREW M6 X 25

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

3

BCS America 314.13064

WASHER, FLAT 6.4

$0.99

$

Usually ships in 5-8 days

0

4

BCS America 342.11102

PIN, LOCKING 10 X 50 DIN 1481

$1.99

$

In Stock, only 2 left!

0

5

BCS America 342.21062

FLAT KEY 6 X 6 X 25 ACC.

$

$

Currently unavailable

6

BCS America 343.21065

FLAT KEY 10 X 30 X 8 ACC.

$

$

Currently unavailable

7

BCS America 351.11062

CIRCLIP, INTERN D 62

$2.49

$

Usually ships in 5-8 days

0

8

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 1 left!

0

9

BCS America 37111300

BEARING 30 X 62 X 16 6206

$

$

Not available

10

BCS America 37112200

BEARING 20 X 47 X 14 6204 2RS ST

$

$

Not available

11

BCS America 38212500

OIL SEAL 25 X 40 X 7

$10.99

$

Usually ships in 5-8 days

0

12

BCS America 382.13004

SEAL, OIL 30 X 62 X 10 STANDARD

$17.99

$

Usually ships in 5-8 days

0

13

BCS America 563.49262

ROTARY HOE SHAFT

$

$

Currently unavailable

14

BCS America 563.49263

ROTARY HOE BEVEL GEAR

$

$

Currently unavailable

15

BCS America 563.49268

GEAR

$

$

Currently unavailable

16

BCS America 580.49247

RUBBER GASKET

$41.99

$

Usually ships in 5-8 days

0

17

BCS America 580.49286

RING SELF-BLOCK

$

$

Currently unavailable

18

BCS America 58149240

P.T.O. SHAFT

$

$

Not available

19

BCS America 581.49241

CENTRAL CASING OF SNOW THROWER

$

$

Currently unavailable

20

BCS America 581.49242

CENTRAL CASING CAP

$

$

Currently unavailable

21

BCS America 581.49243

SHIM 0.3 MM

$

$

Currently unavailable

22

BCS America 581.49244

SHIM 0.5 MM

$

$

Currently unavailable

23

BCS America 581.49267

PLATE

$11.99

$

Usually ships in 5-8 days

0

24

BCS America 581.49269

RUBBER FLAP

$20.99

$

Usually ships in 5-8 days

0

25

BCS America 581.49273

P.T.O. COUPLING

$157.36

$

Usually ships in 5-8 days

0

26

BCS America 581.49298

RIGHT ROTARY HOE

$

$

Currently unavailable

27

BCS America 581.49299

LEFT ROTARY HOE

$

$

Currently unavailable
