SNM 924E (1696222-01) - Snapper 24" Snow Thrower, 9hp Auger Drive Group Parts Diagram

24" Snow Thrower, 9hp

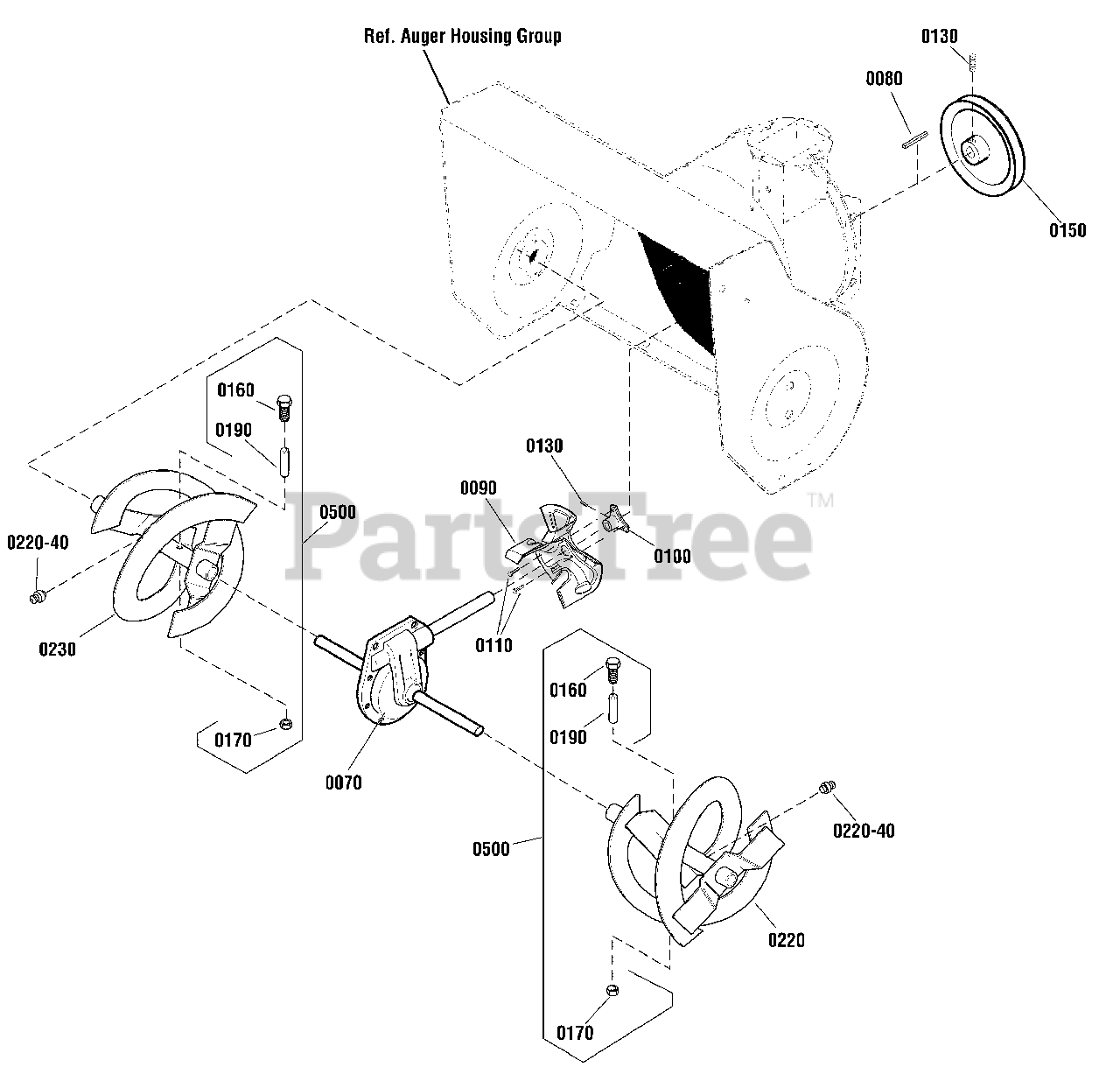

Auger Drive Group Parts Diagram

  • Title

0070

Snapper 1753384YP

GEAR CASE ASSEMBLY
(Superseded to 704363)

$457.99

$

Usually ships in 2-12 days

0

0080

Snapper 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Snapper 1739094BMYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 16

0

0100

Snapper 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Snapper 703985

SCREW, 5/16-18 X .5, Hex Washer Head, Self-Tapping, ZC/CL

Note: (Was 703949)

$4.49

$

In Stock, only 3 left!

0

0130

Snapper 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 1501211MA

PULLEY

$71.99

$

In Stock, only 3 left!

0

0160

Snapper 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2

$5.99

$

In Stock, only 3 left!

0

0170

Snapper 703251

NUT, Hex Centerlock, 1/4-20

$4.99

$

In Stock, Qty 20+

0

0190

Snapper 703058

SPACER, Sleeve, 1/4 x 1/2

$7.49

$

In Stock, only 4 left!

0

0220

Snapper 1738299BHYP

AUGER, LH, 24"

$100.99

$

Usually ships in 2-12 days

0

0230

Snapper 1738300BHYP

AUGER, RH, 24"

$100.99

$

Usually ships in 2-12 days

0

0220-40

Snapper 703907

FITTING, Grease

$4.99

$

In Stock, Qty 20+

0

0500

Snapper 722130

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 10

0
