SNM 924E (1696222-00) - Snapper 24" Snow Thrower, 9hp Handles & Controls Group Parts Diagram

24" Snow Thrower, 9hp

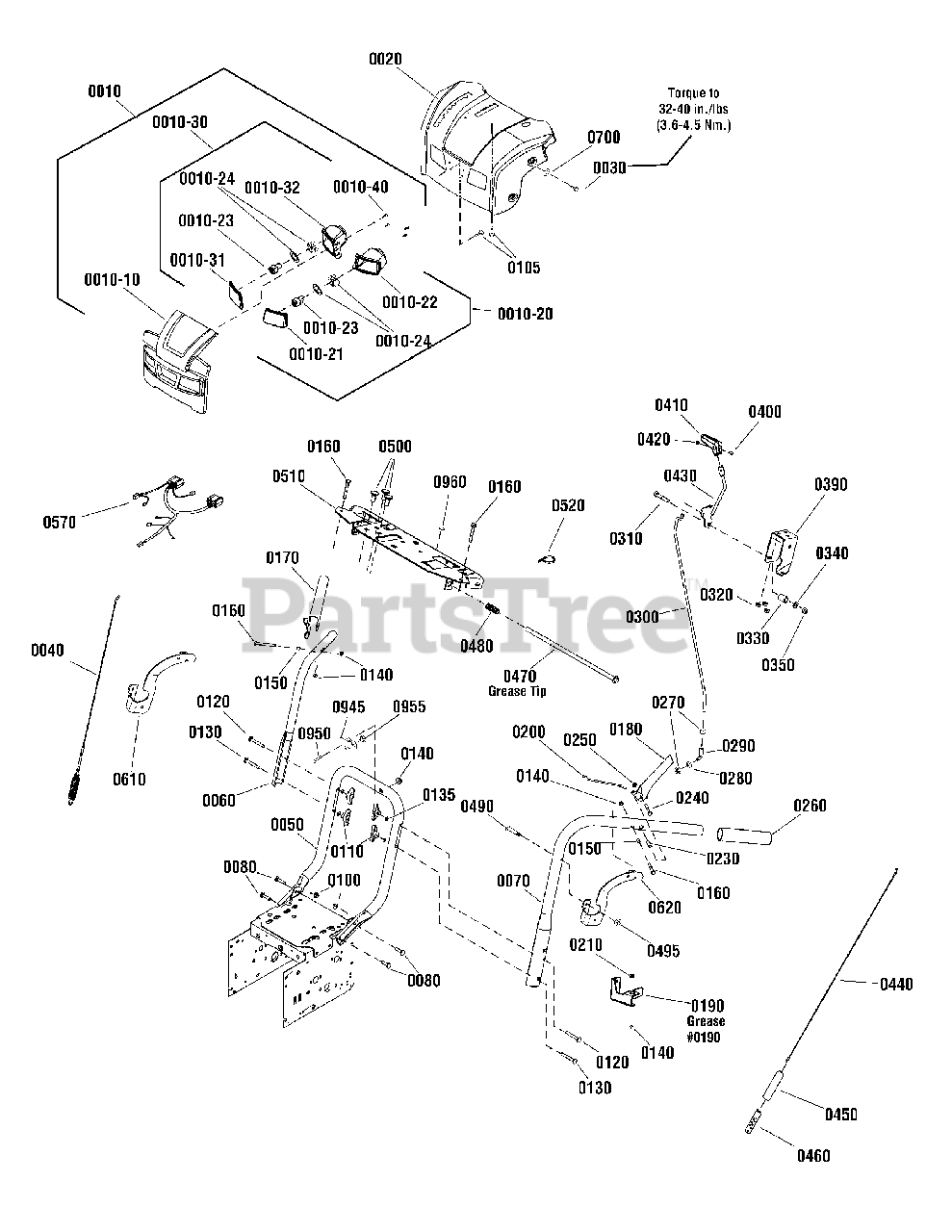

Handles & Controls Group Parts Diagram

  • Title
0010

Snapper 1755320

COVER ASSEMBLY, Dash
(Superseded to 1755320YP)

$208.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1754186

COVER, Dash
(Superseded to 1754186YP)

Note: (Included with Ref. No. 0010)

$85.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1755318

DEFLECTOR ASSEMBLY, LH
(Superseded to 1755318YP)

Note: (Included with Ref. No. 0010)

$66.99

$

Usually ships in 2-12 days

0

0010-21

LENS, LH

Note: (Included with Ref. No. 0010-10)

$

$

Not available

0010-22

DEFLECTOR, LH

Note: (Included with Ref. No. 0010-10)

$

$

Not available

0010-23

LAMP, LED, 12VAC (1156)

Note: (Included with Ref. No. 0010-10 & 0010-30)

$

$

Not available

0010-24

Snapper 1736180

SOCKET, With Gasket
(Superseded to 1736180YP)

Note: (Included with Ref. No. 0010-10 & 0010-30)

$10.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 1755319

DEFLECTOR ASSEMBLY, RH
(Superseded to 1755319YP)

Note: (Included with Ref. No. 0010)

$74.99

$

Usually ships in 2-12 days

0

0010-31

LENS, RH

Note: (Included with Ref. No. 0010-30)

$

$

Not available

0010-32

DEFLECTOR, RH

Note: (Included with Ref. No. 0010-30)

$

$

Not available

0010-40

Snapper 7091105

SCREW, Hex Washer HEad, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

0020

Snapper 1754195D

COVER PANEL, Red
(Superseded to 1754195DYP)

$159.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960556

SCREW, Pan Head Torx, 1/4-20 x 3/4
(Superseded to 1960556SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 80004015

CABLE & SPRING ASSEMBLY
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0050

Snapper 1737274A

HANDLE, Lower
(Superseded to 1737274AYP)

$107.99

$

Usually ships in 2-12 days

0

0060

Snapper 1734587A

HANDLE, Upper, RH
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0070

Snapper 1734586A

HANDLE, Upper, LH
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0080

Snapper 1737687

BOLT, Carriage, 5/16-18 x 3/4, GR 5
(Superseded to 1737687YP)

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper 80003923

NUT, Hex Keps, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0105

Snapper 7091105

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

0110

Snapper 80003917

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0120

Snapper 80003682

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0130

Snapper 80003918

BOLT, Carriage, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0135

Snapper 80003683

WASHER, Internal Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 80002730

NUT, 1/4-20, Nylock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 80003614

SPACER, 1/4 ID x 3/8 OD x .33"
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Snapper 80002714

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 1739783A

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782A

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0190

Snapper 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736360

ROD, Hold Down
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 80003581

SPACER, 1/4 x .118
(Superseded to 703124)

$3.99

$

Usually ships in 2-12 days

0

0230

Snapper 80003527

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1753529

BOLT, Shoulder, 1/4 x 1.45
(Superseded to 1753529YP)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 80002733

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Snapper 1726317

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

0270

Snapper 80002726

NUT, 5/16-24, GR5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 80002745

WASHER, Splitlock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0290

Snapper 80004026

BALL JOINT, Quick Release
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Snapper 80003526

ROD, Speed Control
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 80003522

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Snapper 80002728

NUT, Flange, 5/16-18, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 724361

SPRING
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

0350

Snapper 1919439

NUT, Hex Lock, ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960589

SCREW, Phillips Head, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0410

Snapper 1733192

KNOB, Speed
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0420

Snapper 80002733

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Snapper 1736836

ROD, Speed
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Snapper 727331

CABLE, Front Drive
(Superseded to 1502113MA)

$22.99

$

In Stock, Qty 20+

0

0450

Snapper 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

Usually ships in 2-12 days

0

0460

Snapper 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0470

Snapper 1736363

ROD & SPRING ASSEMBLY
(Superseded to 1736363YP)

$33.99

$

Usually ships in 2-12 days

0

0480

Snapper 2108360

SPRING, Compression
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0490

Snapper 80002714

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

0495

Snapper 80003520

NUT, Flange, Nylock, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0500

Snapper 80003577

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0510

Snapper 1739500BM

SUPPORT, Dash
(Superseded to 1739500BMYP)

$54.99

$

Usually ships in 2-12 days

0

0520

Snapper 7012080

TIE, Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

0610

Snapper 1739663BM

BRACKET, Mounting, RH
(Superseded to 1739663BMYP)

$17.99

$

Usually ships in 2-12 days

0

0570

Snapper 1750359

WIRING HARNESS
(Superseded to 1750359YP)

$37.99

$

Usually ships in 2-12 days

0

0620

Snapper 1739664BM

BRACKET, Mounting, LH
(Superseded to 1739664BMYP)

$22.99

$

Usually ships in 2-12 days

0

0700

Snapper 80002742

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0945

Snapper 1735589

BRACKET, Rod Support
(Superseded to 1735589YP)

$9.49

$

Usually ships in 2-12 days

0

0950

Snapper 1931323

BOLT, Carriage, 1/4-20 x 2, GR5
(Superseded to 1931323SM)

$4.49

$

Usually ships in 2-12 days

0

0955

Snapper 722323

BUSHING, Chute Crank
(Superseded to 1501874MA)

$4.99

$

In Stock, only 1 left!

0

0960

Snapper 1667588

BUSHING, Nylon
(Superseded to 1667588SM)

$5.99

$

In Stock, Qty 20+

0
