SNM 924E (1696222-00) - Snapper 24" Snow Thrower, 9hp Chute & Rotation Group - Dash Mount Crank Parts Diagram

24" Snow Thrower, 9hp

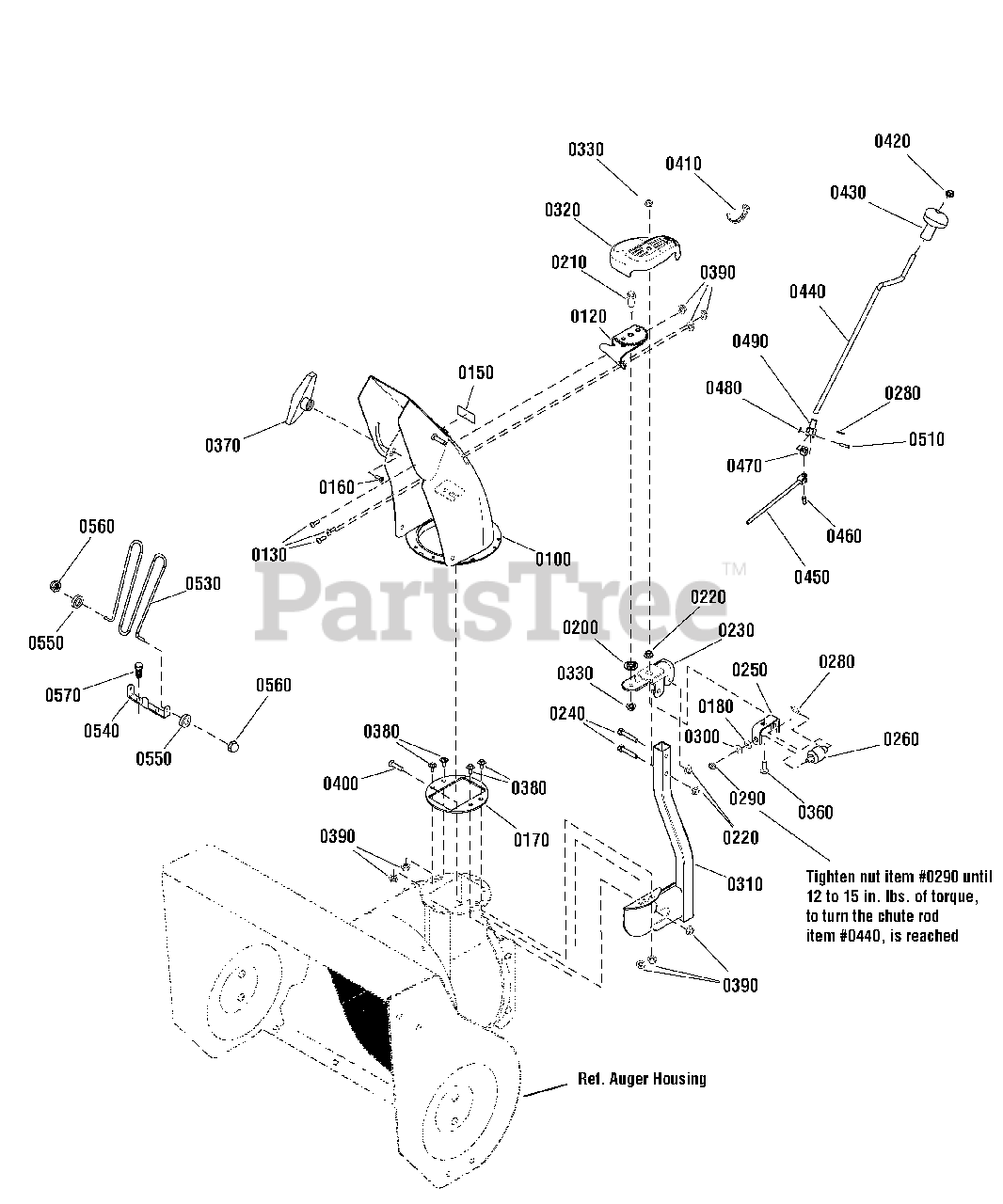

Chute & Rotation Group - Dash Mount Crank Parts Diagram

  • Title

0100

Snapper 1736379BH

CHUTE ASSEMBLY, Red
(Superseded to 1736379BHYP)

$165.99

$

Usually ships in 2-12 days

0

0120

Snapper 1736038

GEAR, Chute Support
(Superseded to 704325)

$31.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960715

SCREW, Truss-Head, Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0150

Snapper 1754926

DECAL, Hinge
(Superseded to 1754926YP)

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0170

Snapper 1735767

GUARD, Chute Ring
(Superseded to 1735767YP)

$6.49

$

Usually ships in 2-12 days

0

0180

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 3 left!

0

0200

Snapper 1733026

WASHER, 1/2 x 1-1/8 OD
(Superseded to 1733026SM)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper 1732412

BOLT, Shoulder, 5/16-18 X 5/8, G5
(Superseded to 1732412SM)

$15.99

$

Usually ships in 2-12 days

0

0220

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0230

Snapper 1734423BM

SUPPORT, Gear Crank
(Superseded to 1734423BMYP)

$17.99

$

Usually ships in 2-12 days

0

0240

Snapper 1922127

CAPSCREW, Hex-Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0250

Snapper 1738020

SUPPORT, Worm, Clear
(Superseded to 1738020YP)

$5.99

$

Usually ships in 2-12 days

0

0260

Snapper 1734439

GEAR, Worm, Chute, L.H.
(Superseded to 1734439SM)

$35.99

$

Usually ships in 2-12 days

0

0280

Snapper 722139

PIN, Hair, Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1960762

NUT, Locking, 3/8-24
(Superseded to 1960762SM)

$4.99

$

Usually ships in 2-12 days

0

0300

Snapper 1734542

WASHER, Cup, 3/8
(Superseded to 1734542SM)

$5.49

$

Usually ships in 2-12 days

0

0310

Snapper 1736195BM

CHUTE SUPPORT ASSEMBLY
(Superseded to 1736195BMYP)

$43.99

$

Usually ships in 2-12 days

0

0320

Snapper 1734442

COVER, Gear
(Superseded to 1734442SM)

$7.99

$

In Stock, only 2 left!

0

0330

Snapper 1935048

NUT, Hex-Flange, Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0360

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0370

Snapper 722136

KNOB, Wing 5/16-18
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

0380

Snapper 95118

SCREW, Shoulder, Hex-Washer, 11/16
(Superseded to 594618)

$3.99

$

In Stock, Qty 20+

0

0390

Snapper 5025391

NUT, Nylock, 1/4-20
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0400

Snapper 720386

BOLT, Carriage, 1/4-20 X 3/4

$

$

Not available

0410

Snapper 7012080

TIE, Self-Locking, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

0420

Snapper 1960093

PUSHNUT, 3/8 Dia.
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0430

Snapper 1714084

KNOB, Spinner, 3/8 ID, 2-3/16 OD, 2-1/2 Lg
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

0440

Snapper 1735661

CRANK, Chute Hande
(Superseded to 1735661YP)

$14.99

$

Usually ships in 2-12 days

0

0450

Snapper 1735660

ROD & YOKE ASSEMBLY
(Superseded to 703173)

$27.99

$

Usually ships in 2-12 days

0

0460

Snapper 724564

PIN, Universal Joint, 3/8 X 1
(Superseded to 578060MA)

$7.49

$

Usually ships in 2-12 days

0

0470

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 4 left!

0

0480

Snapper 724605

PIN, Cotter, 5/8 X 1/2
(Superseded to 579493MA)

$4.49

$

In Stock, only 1 left!

0

0490

Snapper 1733611

YOKE TUBE ASSEMBLY, Chute
(Superseded to 1733611SM)

$35.99

$

In Stock, only 1 left!

0

0510

Snapper 724579

PIN, Clevis, 1/4 X 1-3/16
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 8

0

0530

Snapper 1733475

GUARD, Chute
(Superseded to 1733475SM)

$21.99

$

Usually ships in 2-12 days

0

0540

Snapper 1752883

BRACKET, Chute Guard
(Superseded to 1752883YP)

$15.99

$

Usually ships in 2-12 days

0

0550

Snapper 1738174

GROMMET, Chute Guard
(Superseded to 1738174YP)

$4.49

$

Usually ships in 2-12 days

0

0560

Snapper 1960140

NUT, Push, 3/16
(Superseded to 1960140SM)

$3.49

$

Usually ships in 2-12 days

0

0570

SCREW, Hex Head, Taptite, 1/4-20 x 1/2

$

$

Not available
