SNM 924E (1696222-00) - Snapper 24" Snow Thrower, 9hp Auger Drive Group Parts Diagram

24" Snow Thrower, 9hp

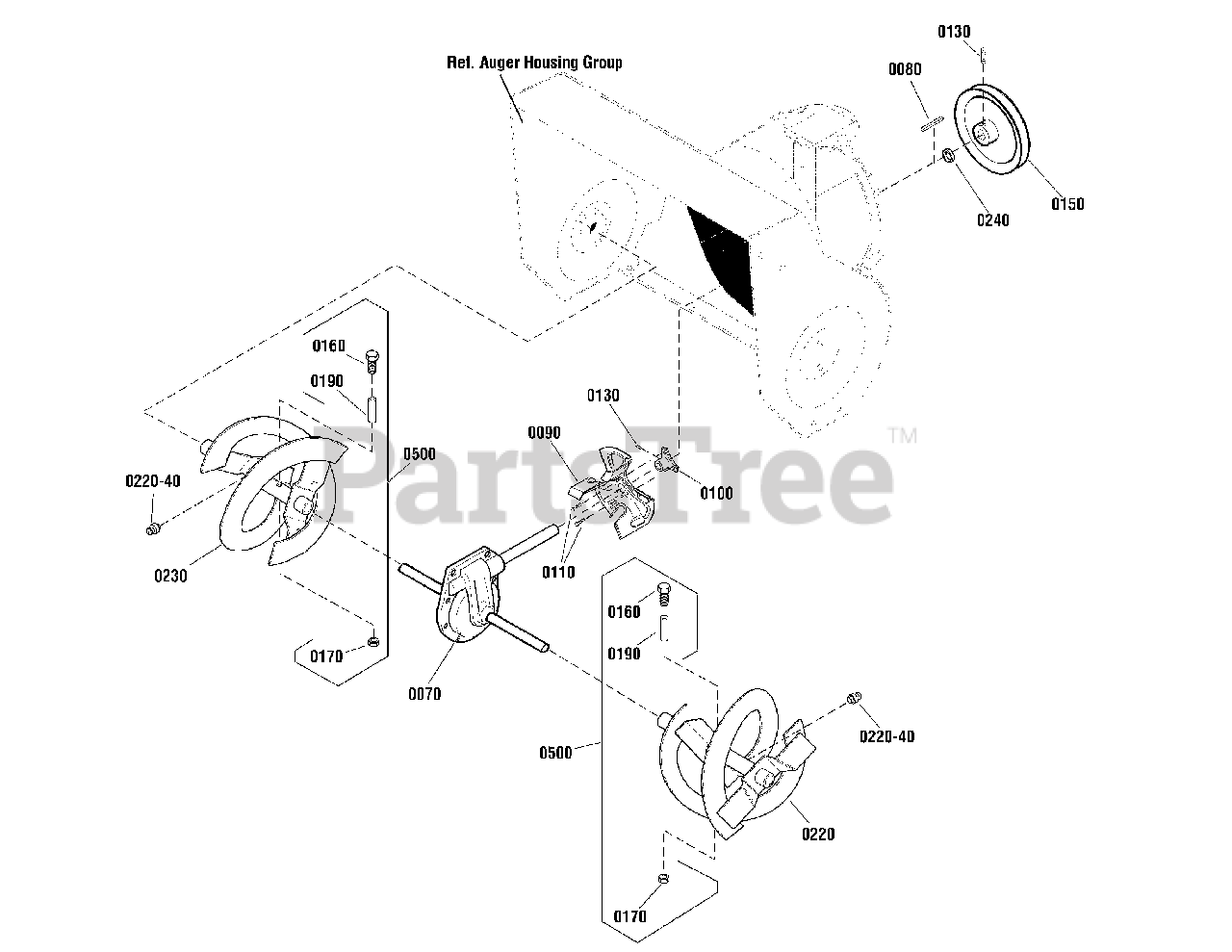

Auger Drive Group Parts Diagram

  • Title

0070

Snapper 1753072

GEAR CASE ASSEMBLY
(Superseded to 1753072YP)

$302.99

$

Usually ships in 2-12 days

0

0080

Snapper 722726

KEY, Square, 3/16 x 3/4
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

0090

Snapper 1739094BH

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 15

0

0100

Snapper 1739073

HUB, Impeller
(Superseded to 1739073YP)

$23.99

$

In Stock, only 4 left!

0

0110

Snapper 1924856

SCREW, Hex Washer Head, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0130

Snapper 7090848

SET SCREW, Socket Head, 5/16-18 x 1/2
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 722128

PULLEY
(Superseded to 1501211MA)

$71.99

$

In Stock, only 3 left!

0

0160

Snapper 726061

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2
(Superseded to 703057)

$5.99

$

In Stock, only 1 left!

0

0170

Snapper 725429

NUT, Hex Centerlock, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

0190

Snapper 723913

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0220

Snapper 1738299BH

AUGER, LH, 24"
(Superseded to 1738299BHYP)

$100.99

$

Usually ships in 2-12 days

0

0230

Snapper 1738300BH

AUGER, RH, 24"
(Superseded to 1738300BHYP)

$100.99

$

Usually ships in 2-12 days

0

0220-40

Snapper 721620

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Snapper 722110

SAPCER, Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

0500

Snapper 722130

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 20+

0
