SNM 1227SE (1696488-00) - Snapper 27" Snow Thrower, 11.5hp Handles & Controls Group Parts Diagram

27" Snow Thrower, 11.5hp

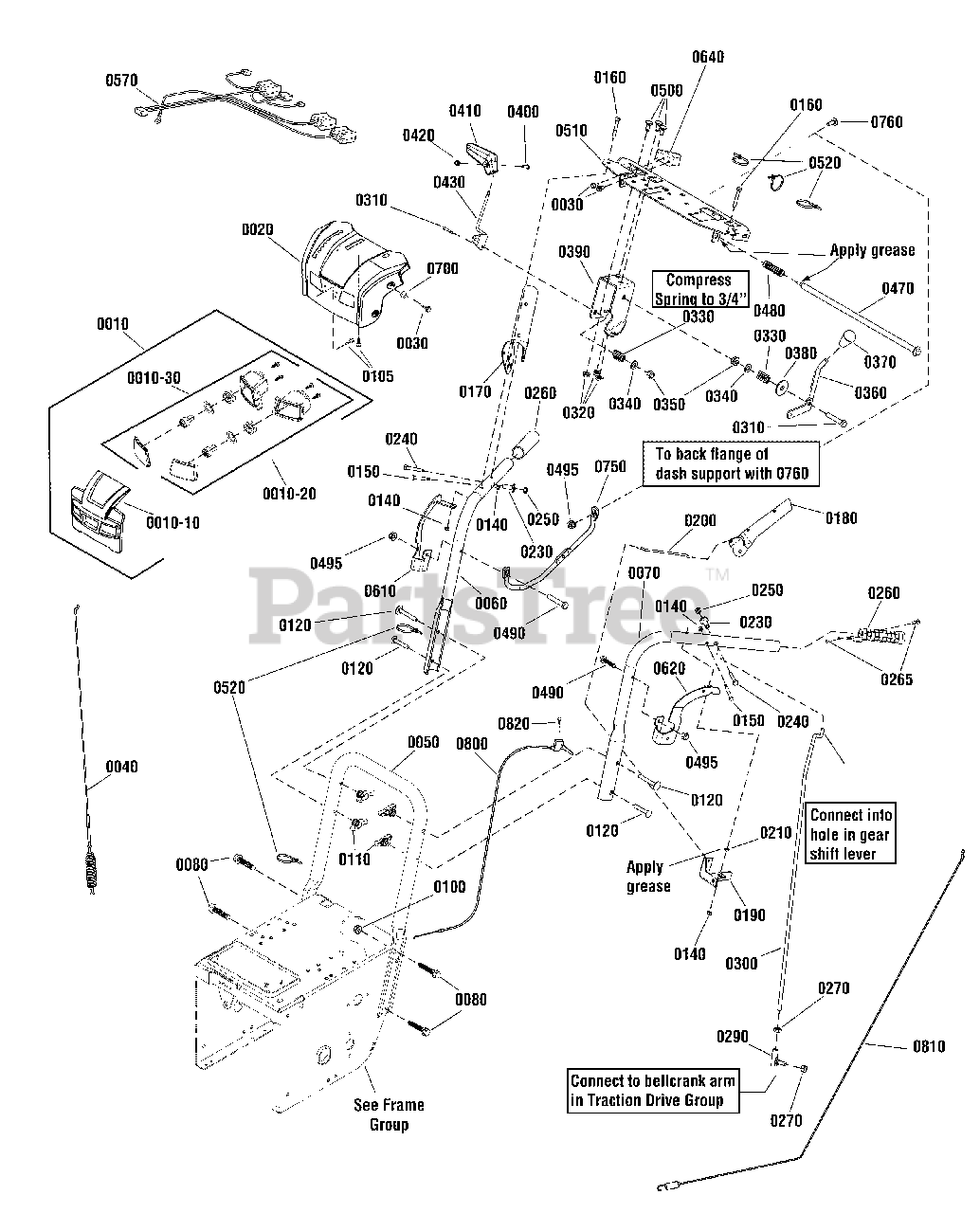

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 1755320YP

COVER ASSEMBLY

$208.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1754186YP

COVER, Panel

$85.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1755318YP

DEFLECTOR, LH

$66.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 1755319YP

DEFLECTOR, RH

$74.99

$

Usually ships in 2-12 days

0

0020

Snapper 1739860BSYP

COVER, Panel, Remote Deflector

$122.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 1737544YP

CABLE & SPRING ASSEMBLY, Auger Drive, RH
(Superseded to 703221)

$24.99

$

In Stock, Qty 6

0

0050

Snapper 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737531AYP

HANDLE, Upper, R.H.

$59.99

$

Usually ships in 2-12 days

0

0070

Snapper 1737532AYP

HANDLE, Upper, L.H.

$53.99

$

Usually ships in 2-12 days

0

0080

Snapper 1737687YP

BOLT, Carriage, 5/16-18 x 3/4, G5

$6.49

$

Usually ships in 2-12 days

0

0105

Snapper 7091105YP

SCREW, Washer Head, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0100

Snapper 1935048SM

NUT, Hex Flange Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 7035744YP

WINGKNOB, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0120

Snapper 1750299YP

BOLT, Carriage, Locking, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0140

Snapper 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 703405

CAPSCREW, Hex Head, 1/4-20 x 1 3/4

$50.99

$

Usually ships in 2-12 days

0

0160

Snapper 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 1739783BMYP

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782BMYP

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0190

Snapper 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736360YP

ROD, Hold Down, 5/32 Dia., 5-5/8 Lg

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 1733095SM

SPACER, 1/4 ID

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1753529YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 6

0

0260

Snapper 1738124YP

HAND GRIP
(Superseded to 770002)

$86.99

$

Usually ships in 2-12 days

0

0270

Snapper 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, only 4 left!

0

0290

Snapper 1739290YP

BALL JOINT, Quick Release
(Superseded to 703224)

$21.99

$

In Stock, only 1 left!

0

0300

Snapper 1737331YP

ROD, Speed Select

$19.99

$

In Stock, only 1 left!

0

0310

Snapper 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 9

0

0320

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1918266SM

WASHER, 3/8 x 13/16 OD
(Superseded to 703590)

$3.99

$

In Stock, Qty 18

0

0350

Snapper 1919439SM

NUT, Hex Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0360

Snapper 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0370

Snapper 1732470SM

KNOB, Deflector Control

$19.99

$

In Stock, only 1 left!

0

0380

Snapper 1924356SM

WASHER, 1/2
(Superseded to 703591)

$5.49

$

In Stock, Qty 19

0

0390

Snapper 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Snapper 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Snapper 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 6

0

0430

Snapper 1736836YP

SPEED LEVER ASSEMBLY
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0470

Snapper 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Snapper 2108360SM

SPRING, Compression, 017/32 ID x 2-1/4 Lg

$5.49

$

In Stock, only 1 left!

0

0490

Snapper 1921962SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0495

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0500

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0510

Snapper 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Snapper 1701011SM

TIE, SELF LOCKING, 7-5/16 Lg

$5.49

$

In Stock, only 2 left!

0

0570

Snapper 1755059YP

HARNESS

$59.99

$

Usually ships in 2-12 days

0

0610

Snapper 1739663BMYP

BRACKET, Mounting, Dash, R.H.

$17.99

$

Usually ships in 2-12 days

0

0620

Snapper 1739664BMYP

BRACKET, Mounting, Dash, L.H.

$22.99

$

Usually ships in 2-12 days

0

0640

Snapper 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

0700

Snapper 1921319SM

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0750

Snapper 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0760

Snapper 7091530SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 8

0

0800

Snapper 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0810

Snapper 1737511YP

CABLE, Traction Drive

$24.99

$

In Stock, only 1 left!

0

0820

Snapper 7073145YP

BOLT, Oval Head, 10-24 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0
