SNL 924R (1696221-01) - Snapper 24" Snow Thrower, 9hp Engine Group Parts Diagram

24" Snow Thrower, 9hp

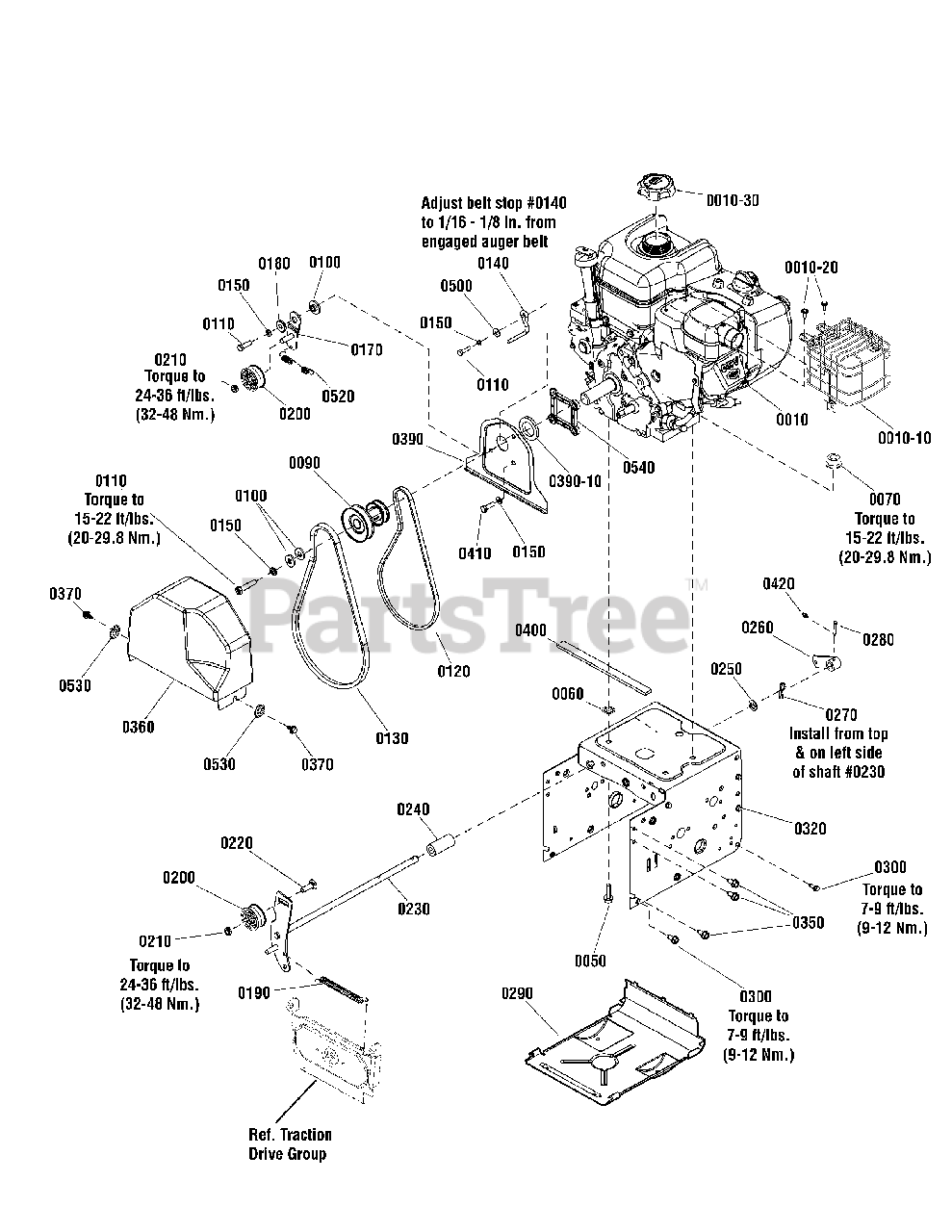

Engine Group Parts Diagram

  • Title

0010

Snapper 10D132-0110-F8

* ENGINE, Briggs & Stratton 163CC Snow Series, 10D132-0110-F8

$

$

Not available

0010

Snapper 12D106-0168-F8

* ENGINE, 900 Series Briggs & Stratton, 12D106-0168-F8

$

$

Not available

0010-10

Snapper 591619

GUARD, Muffler

Note: (Use on 163CC Engine)

$47.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 793193

GUARD, Muffler

Note: (Use on 900 Series Engine)

$55.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 798796

SCREW, Muffler Guard

Note: (Use on 163CC Engine)

$61.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 699854

SCREW, Muffler Guard

Note: (Use on 900 Series Engine)

$3.99

$

In Stock, Qty 9

0

0010-30

Snapper 794641

CAP, Fuel Tank

Note: (Use on 163CC Engine)

$20.99

$

In Stock, only 3 left!

0

0010-30

Snapper 795027

FUEL CAP

Note: (Use on 900 Series Engine)

$10.99

$

In Stock, Qty 20+

0

0050

Snapper 1931337

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 80003669)

$4.49

$

In Stock, only 3 left!

0

0060

Snapper 720376

PUSHNUT
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 80002728

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0090

Snapper 722085

PULLEY, Engine
(Superseded to 1501109MA)

$41.99

$

In Stock, Qty 5

0

0100

Snapper 1919381

WASHER, Flat, 5/16, G5
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

0110

Snapper 1921982

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, GR5
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 1733324

V-BELT, 3L 33.03
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

0130

Snapper 1751417

BELT, Auger
(Superseded to 1751417YP)

$28.99

$

Usually ships in 2-12 days

0

0140

Snapper 1739070

BELT GUIDE
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

0150

Snapper 720174

LOCKWASHER, Split, 5/16
(Superseded to 018X15MA)

$3.99

$

In Stock, only 1 left!

0

0170

Snapper 722090

IDLER BRKT
(Superseded to 1687797YP)

$8.49

$

In Stock, Qty 7

0

0180

Snapper 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.49

$

In Stock, only 4 left!

0

0190

Snapper 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 9

0

0200

Snapper 722378

IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 12

0

0210

Snapper 1960251

NUT, Center Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Snapper 724823

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1752397

IDLER, Auger
(Superseded to 1752397YP)

$63.99

$

Usually ships in 2-12 days

0

0240

Snapper 722118

SPACER, Plastic, 1/2 ID x 1 OD x 1-3/4
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

CONTROL ARM
(Superseded to 1733451SM)

Note: (Use on 900 Series Engine)

$20.99

$

In Stock, Qty 5

0

0270

Snapper 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1736381

CLEVIS PIN
(Superseded to 703313)

Note: (Use on 900 Series Engine)

$4.99

$

In Stock, Qty 6

0

0290

Snapper 1753969BM

COVER, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0320

Snapper 1754891D

FRAME
(Superseded to 1754891DYP)

$142.99

$

Usually ships in 2-12 days

0

0350

Snapper 722839

SCREW, Thread Roll, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1753893

COVER, Belt
(Superseded to 1753893YP)

$52.99

$

Usually ships in 2-12 days

0

0370

Snapper 1751355

SCREW, Hex Washer Head, Tap, SEMS 1/4-20 x 3/4
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

0390

Snapper 1733868BM

PLATE, Seal
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0390-10

Snapper 1754847

SEAL, Foam, 3/8" Thick
(Superseded to 1754847YP)

Note: (Use on 163cc Engine)

$9.49

$

Usually ships in 2-12 days

0

0390-10

Snapper 1733898

SEAL, Foam, 1/8" Thick
(Superseded to 1733898SM)

Note: (Use on 900 Series Engine)

$6.49

$

Usually ships in 2-12 days

0

0400

Snapper 1750172

STRIP, Seal
(Superseded to 1750172YP)

$7.49

$

Usually ships in 2-12 days

0

0410

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Snapper 7023590

COTTER PIN, 1/4
(Superseded to 7023590SM)

Note: (Use on 900 Series Engine)

$3.99

$

In Stock, Qty 20+

0

0500

Snapper 7091528

WASHER, Flat, 3/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0520

Snapper 722457

SPRING, Idler
(Superseded to 165X164MA)

$7.49

$

In Stock, only 3 left!

0

0530

Snapper 7091890

WASHER, Internal Lock, 1/4
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

0540

Snapper 1754362

SPACER BLOCK
(Superseded to 1754362YP)

Note: (Use on 163CC Engine)

$9.49

$

Usually ships in 2-12 days

0
