SNL 924R (1696221-01) - Snapper 24" Snow Thrower, 9hp Discharge Chute Group - Left Hand Crank Parts Diagram

24" Snow Thrower, 9hp

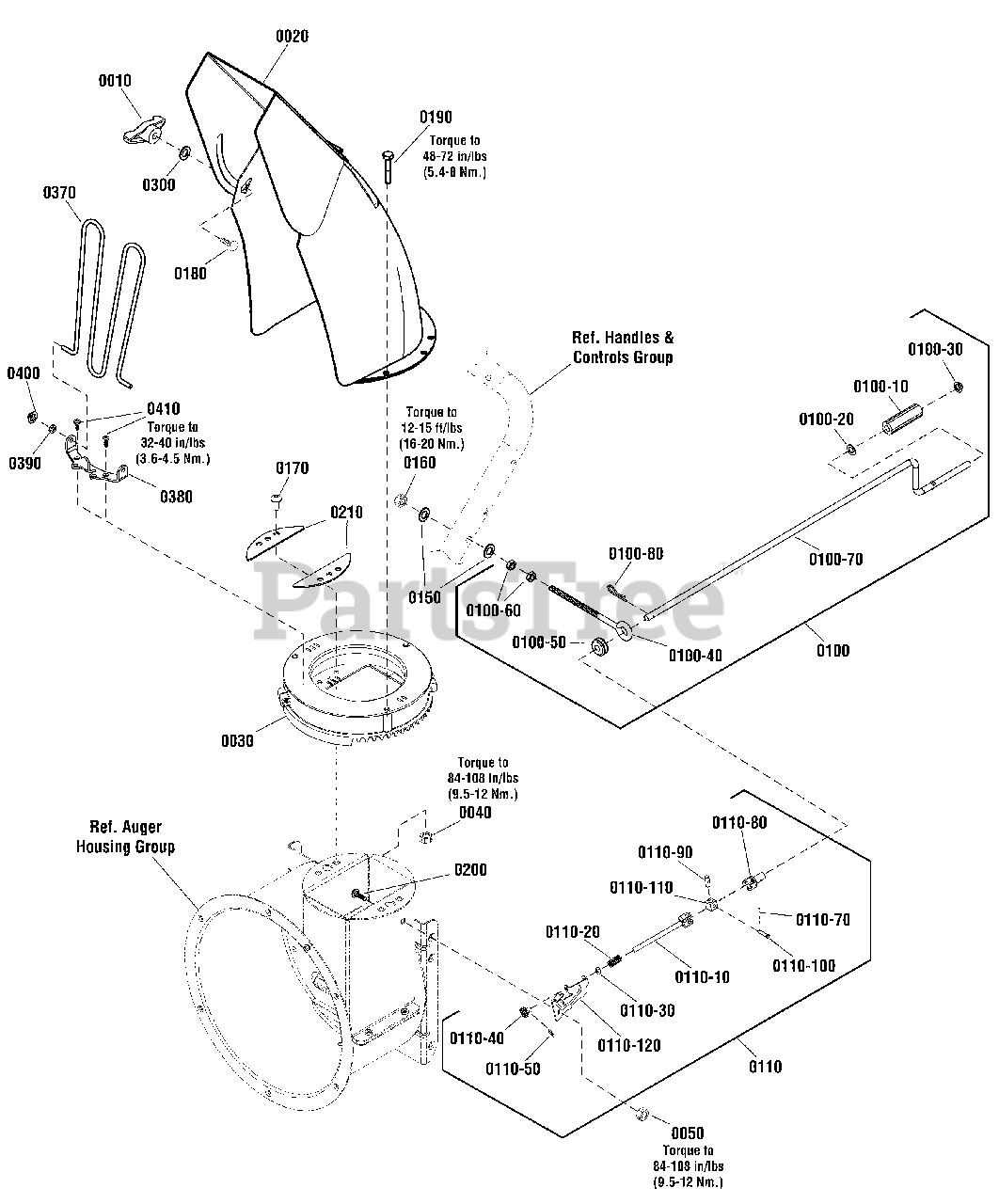

Discharge Chute Group - Left Hand Crank Parts Diagram

  • Title

0010

Snapper 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0020

Snapper 1752977CYP

CHUTE,Weld

$

$

Not available

0030

Snapper 1752395YP

CHUTE ROTATION ASSEMBLY, LH Crank

$39.99

$

Usually ships in 2-12 days

0

0040

Snapper 703331

NUT, 5/16-24

$3.99

$

In Stock, Qty 20+

0

0050

Snapper 703232

NUT, Hex Centerlock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1740933YP

ROD ASSSEMBLY

$72.99

$

Usually ships in 2-12 days

0

0100-10

Snapper 51443MA

KNOB, Sleeve

$7.49

$

Usually ships in 2-12 days

0

0100-20

Snapper 703326

WASHER. Flat, 3/8

$3.99

$

Usually ships in 2-12 days

0

0100-30

Snapper 73664MA

NUT, Push, 3/8

$4.99

$

In Stock, only 3 left!

0

0100-40

Snapper MT1501456MA

EYEBOLT, 3/8-16 x 6-1/2"
(Superseded to 1501456MA)

$9.49

$

Usually ships in 2-12 days

0

0100-50

Snapper 148MA

GROMMET, Eye Bolt

$

$

Not available

0100-60

Snapper MT71045MA

NUT, Hex Jam, 3/8-16
(Superseded to 71045MA)

$4.99

$

Usually ships in 2-12 days

0

0100-70

Snapper 703120

CRANK, Chute Turn

$29.99

$

In Stock, only 2 left!

0

0100-80

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1752560YP

BRACKET ASSEMBLY, Chute Rotation

$55.99

$

Usually ships in 2-12 days

0

0110-10

Snapper MT1501533YZMA

ROD, Yoke Crank
(Superseded to 1501533YZMA)

$11.99

$

Usually ships in 2-12 days

0

0110-20

Snapper 164X37MA

SPRING, Compression

$9.49

$

In Stock, only 1 left!

0

0110-30

Snapper 017X48MA

WASHER, Flat, 3/8

$8.49

$

Usually ships in 2-12 days

0

0110-40

Snapper 1501125MA

GEAR, 9 Tooth

$66.99

$

Usually ships in 2-12 days

0

0110-50

Snapper MT1501293MA

PIN, Hair
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0110-70

Snapper 1501125MA

PIN, Cotter

$66.99

$

Usually ships in 2-12 days

0

0110-80

Snapper 1501075YZMA

YOKE TUBE ASSEMBLY, Adapter

$10.99

$

In Stock, only 1 left!

0

0110-90

Snapper 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

0110-100

Snapper 779000MA

PIN, 1/4

$8.99

$

Usually ships in 2-12 days

0

0110-110

Snapper 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 4 left!

0

0110-120

Snapper 1752383BMYP

BRACKET, Mounting, Chute Rotation Gear

$

$

Not available

0150

Snapper 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0160

Snapper 71046MA

NUT, Hex, Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 880456YP

SCREW, Torx Truss Head, 1/4-20 x 7/8

$3.49

$

Usually ships in 2-12 days

0

0180

Snapper 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0190

Snapper 880804YP

SCREW, Hi-Lo, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 703978

BOLT, Carriage, Short Neck, 1/4-20 x 1/2, G5

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 1753477YP

STIFFENER, Chute Rotation

$14.99

$

Usually ships in 2-12 days

0

0300

Snapper 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 3 left!

0

0370

Snapper 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0380

Snapper 1752883BMYP

BRACKET, Chute Guard

$

$

Not available

0390

Snapper 1738174YP

GROMMET, Chute Guard Bracket

$4.49

$

Usually ships in 2-12 days

0

0400

Snapper 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0410

Snapper 880070YP

SCREW, 310, Hi-Lo x 1/2

$3.49

$

Usually ships in 2-12 days

0
