SNL 924R (1696221-00) - Snapper 24" Snow Thrower, 9hp Handles & Controls Group - Left Hand Crank Parts Diagram

24" Snow Thrower, 9hp

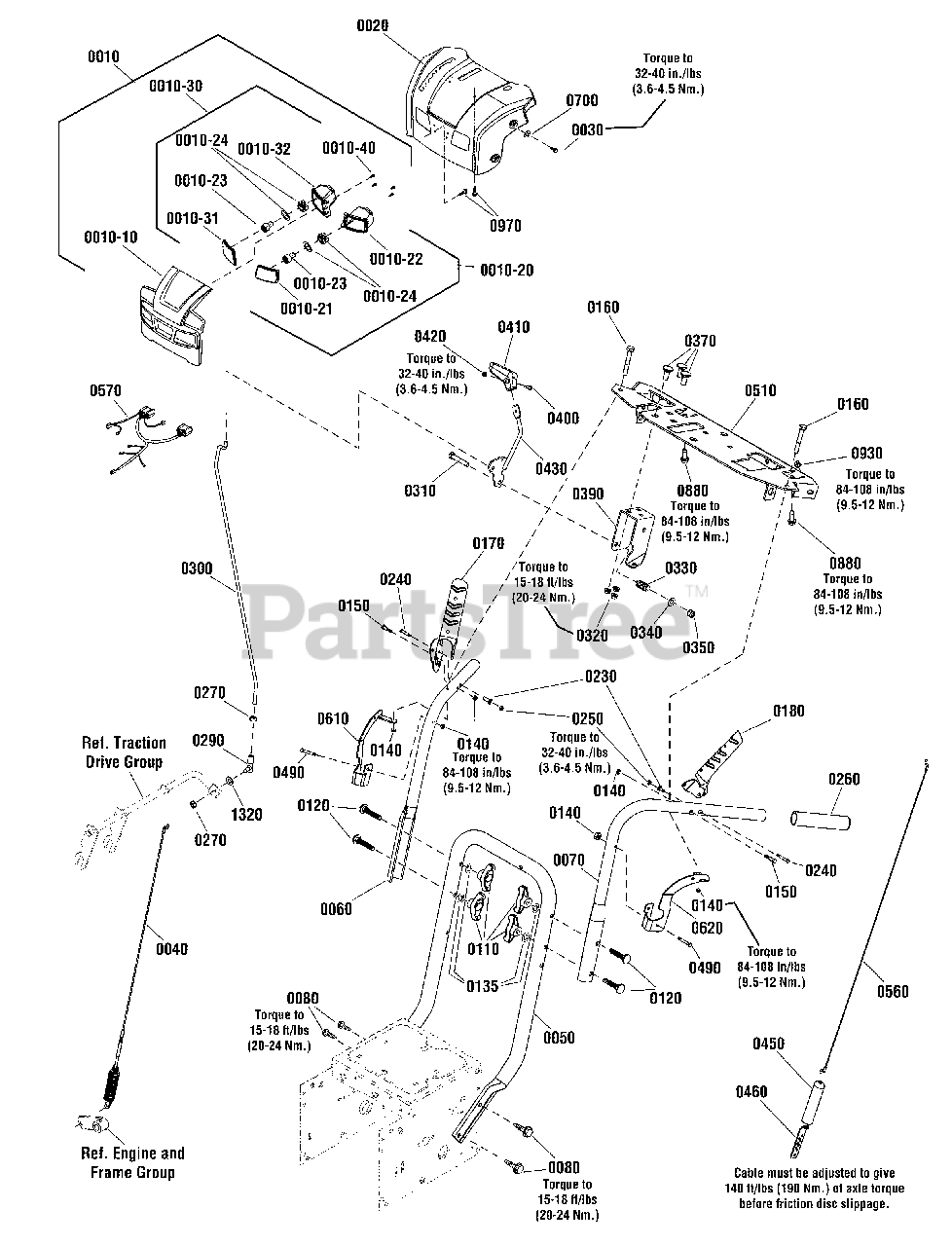

Handles & Controls Group - Left Hand Crank Parts Diagram

  • Title
0010

Snapper 1755320

COVER ASSEMBLY, P18 LED Panel
(Superseded to 1755320YP)

$208.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1754186

COVER, Dash
(Superseded to 1754186YP)

$85.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1755318

DEFLECTOR ASSEMBLY, LH
(Superseded to 1755318YP)

Note: (Includes Ref. Nos. 0010-21, 0010-22, 0010-23 & 0010-24)

$66.99

$

Usually ships in 2-12 days

0

0010-21

LENS, LH

Note: (Not a serviceable part. Order Ref. No. 0010-20)

$

$

Not available

0010-22

DEFLECTOR, LH

Note: (Not a serviceable part. Order Ref. No. 0010-20)

$

$

Not available

0010-23

LAMP, LED, 12VAC (1156

$

$

Not available

0010-24

Snapper 1736180

SOCKET, With Gasket
(Superseded to 1736180YP)

$10.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 1755319

DEFLECTOR ASSEMBLY, RH
(Superseded to 1755319YP)

Note: (Includes Ref. Nos. 0010-31, 0010-32, 0010-23 & 0010-24)

$74.99

$

Usually ships in 2-12 days

0

0010-31

LENS, RH

Note: (Not a serviceable part. Order Ref. No. 0010-30)

$

$

Not available

0010-32

DEFLECTOR, RH

Note: (Not a serviceable part. Order Ref. No. 0010-30)

$

$

Not available

0010-40

Snapper 7091105

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

0020

Snapper 1754196D

DASH ASSEMBLY
(Superseded to 1754196DYP)

$176.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 16

0

0040

Snapper 1737544

CABLE, Auger Drive
(Superseded to 1737544YP)

$24.99

$

In Stock, Qty 6

0

0050

Snapper 1737274A

HANDLE, Lower
(Superseded to 1737274AYP)

$107.99

$

Usually ships in 2-12 days

0

0060

Snapper 1734587A

HANDLE, Upper, RH
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0070

Snapper 1734586A

HANDLE, Upper, LH
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0080

Snapper 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0110

Snapper 703065

KNOB, Wing, Black, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0120

Snapper 1960273

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0135

Snapper 703587

LOCKWASHER, Internal Tooth, 5/16

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 703045

BOLT, Shoulder, 1/4-20 x 1-3/4, G5

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 703588

SCREW, Hex Head Cap, 1/4-20 x 1-3/4, G5

$3.99

$

In Stock, only 1 left!

0

0170

Snapper 1739783A

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782A

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0230

Snapper 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1750554

BOLT, Shoulder
(Superseded to 1750554YP)

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0260

Snapper 1726317

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

0270

Snapper 2820263

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0290

Snapper 1739290

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Snapper 1751543

ROD, Speed Control
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 X 2, G5
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0320

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 724361

SPRING, 3/4
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

0350

Snapper 1919439

NUT, Hex Lock, ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0370

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960589

SCREW, Phillips Head, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0410

Snapper 1733192

KNOB, Slot Speed
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0430

Snapper 1736836

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0450

Snapper 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

In Stock, only 3 left!

0

0460

Snapper 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0490

Snapper 80002714

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

0510

Snapper 1739500A

SUPPORT, Dash
(Superseded to 1739500AYP)

$51.99

$

Usually ships in 2-12 days

0

0560

Snapper 722097

CABLE, Forward Drive
(Superseded to 762259MA)

$12.99

$

In Stock, Qty 5

0

0570

Snapper 1750359

WIRING HARNESS
(Superseded to 1750359YP)

$37.99

$

Usually ships in 2-12 days

0

0610

Snapper 1739663BM

BRACKET, Mounting, RH
(Superseded to 1739663BMYP)

$17.99

$

Usually ships in 2-12 days

0

0620

Snapper 1739664BM

BRACKET, Mounting, LH
(Superseded to 1739664BMYP)

$22.99

$

Usually ships in 2-12 days

0

0700

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0880

Snapper 7091081

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

0970

Snapper 7091105

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

1320

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
