SNL 924R (1696221-00) - Snapper 24" Snow Thrower, 9hp Auger Drive Group Parts Diagram

24" Snow Thrower, 9hp

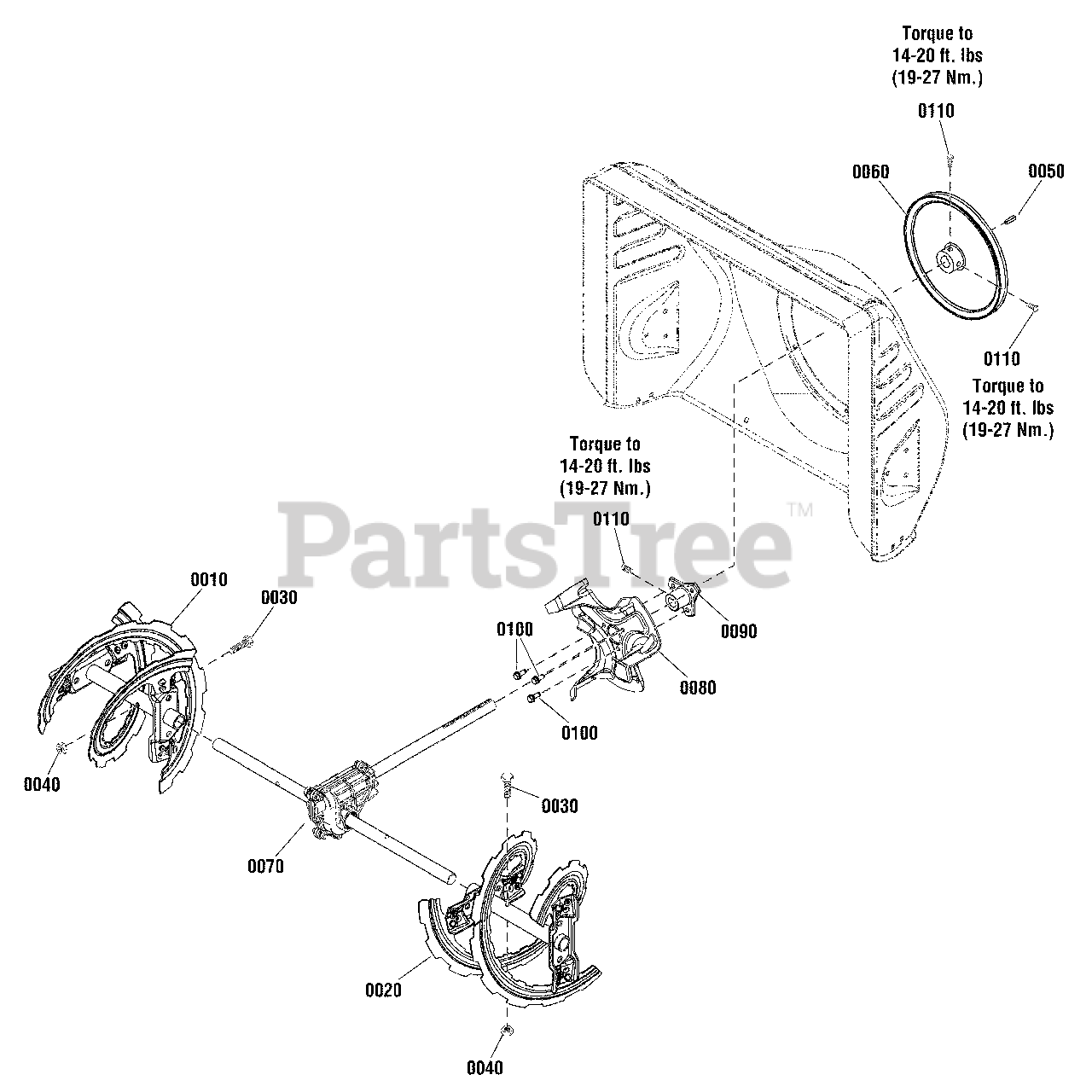

Auger Drive Group Parts Diagram

  • Title

0010

Snapper 1752081BMYP

AUGER ASSEMBLY, RH

Note: (Black)

$158.99

$

In Stock, only 1 left!

0

0010

Snapper 1752081BHYP

AUGER ASSEMBLY, RH

Note: (Charcoal Gray)

$100.99

$

Usually ships in 2-12 days

0

0020

Snapper 1752067BMYP

AUGER ASSEMBLY, LH

Note: (Black)

$

$

Not available

0020

Snapper 1752067BHYP

AUGER ASSEMBLY, LH

Note: (Charcoal Gray)

$107.99

$

Usually ships in 2-12 days

0

0030

Snapper 703057

CAPSCREW, Hex Head, 1/4-20

Note: (Was 80003915)

$5.99

$

In Stock, Qty 5

0

0040

Snapper 703251

NUT, Hex, 1/4-20

Note: (Was 80003534)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 2001022MA

KEY, Square, 3/16 x 3/4

Note: (Was 722726)

$4.49

$

In Stock, Qty 12

0

0060

Snapper 1752220YP

AUGER PULLEY

$87.99

$

In Stock, Qty 5

0

0070

Snapper 1753221YP

GEAR CASE ASSEMBLY

$463.99

$

Usually ships in 2-12 days

0

0080

Snapper 1751348BM

IMPELLER, 10"
(Superseded to 1751348BMYP)

Note: (Black)

$46.99

$

In Stock, only 4 left!

0

0080

Snapper 1751348BH

IMPELLER, 10"
(Superseded to 1687600YP)

Note: (Charcoal Gray)

$86.99

$

In Stock, Qty 20+

0

0090

Snapper 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0100

Snapper 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0110

Snapper 1930540SM

SET SCREW, Square Head, 5/16-18 x 5/8, G8

$4.49

$

In Stock, Qty 11

0

--

Snapper C950527610MA

KIT, Shear Pin
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0030 & 0040)(Was 722130)

$4.99

$

In Stock, Qty 20+

0
