SNL 824R (1696523-00) - Snapper 24" Snow Thrower, 7.5hp Auger Housing Group Parts Diagram

24" Snow Thrower, 7.5hp

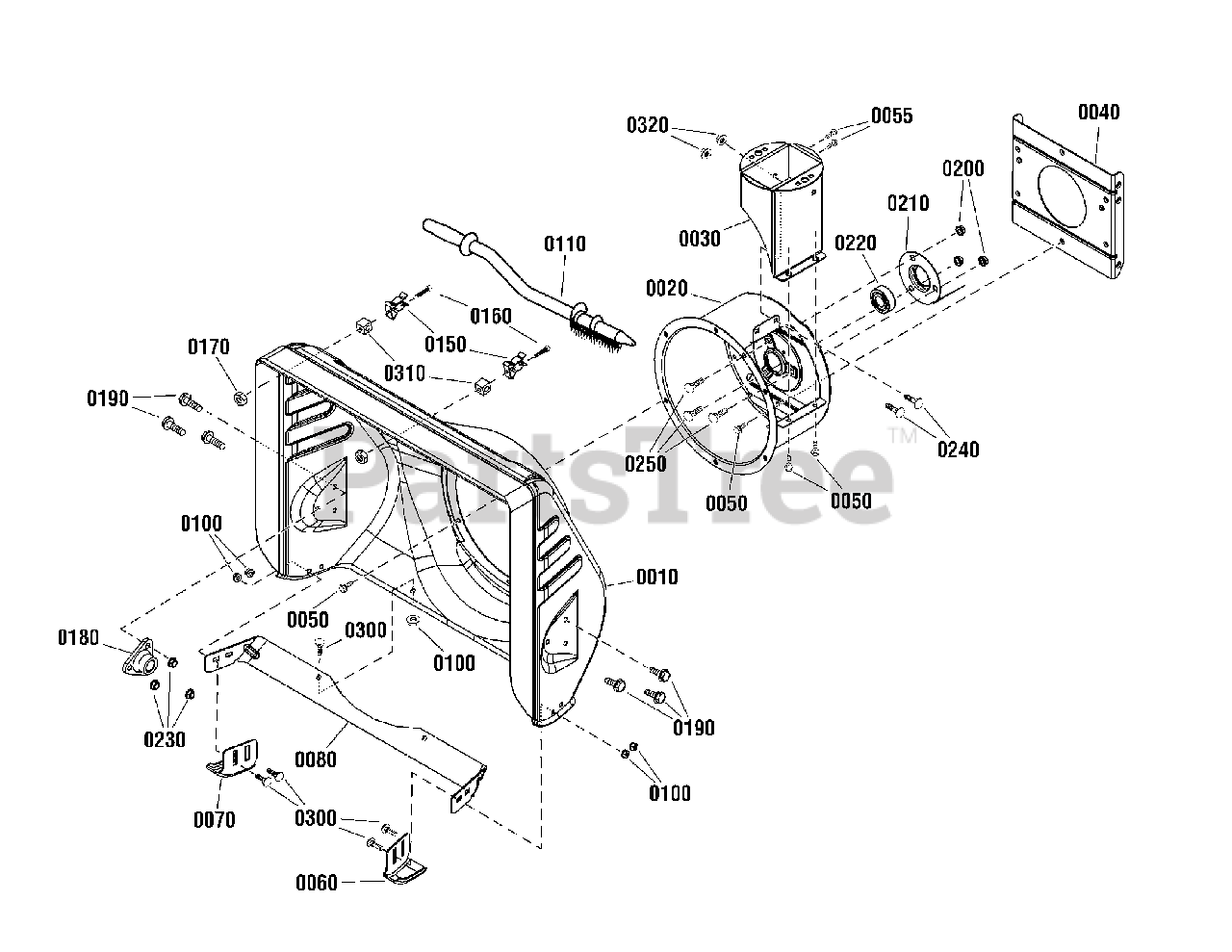

Auger Housing Group Parts Diagram

  • Title

0010

Snapper 1687698YP

AUGER HOUSING KIT, Stamped, VL

$267.99

$

Usually ships in 2-12 days

0

0020

Snapper 1751278DYP

HOUSING, IMPELLER, 10"
(Superseded to 1751278BSYP)

$91.99

$

Usually ships in 2-12 days

0

0030

Snapper 1751938DYP

CHIMNEY, Steel

$

$

Currently unavailable

0040

Snapper 1751303DYP

BRACKET, Rear Mounting

$31.99

$

Usually ships in 2-12 days

0

0050

Snapper 1927428SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0055

Snapper 1750447YP

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0060

Snapper 1751407AYP

SKID SHOE, LH
(Superseded to 1751407BMYP)

$11.99

$

In Stock, only 3 left!

0

0070

Snapper 1751406AYP

SKID SHOE, RH
(Superseded to 1751406BMYP)

$11.99

$

In Stock, Qty 5

0

0080

Snapper 1751418AYP

SCRAPER BAR
(Superseded to 1751418BMYP)

$

$

Not available

0100

Snapper 5025391

NUT, Hex Nylock Flange, 1/4-20
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1736094YP

STICK, Cleanout Brush, 22-1/2

$34.99

$

In Stock, Qty 7

0

0150

Snapper 1736620YP

CLAMP, Spring, Snow Brush

$6.49

$

In Stock, only 3 left!

0

0160

Snapper 1750897YP

BOLT, Truss Head, 10-24 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 722401

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0180

Snapper 726059

BEARING, Auger
(Superseded to 9517MA)

$5.99

$

In Stock, Qty 20+

0

0190

Snapper 726004

CAPSCREW, Tapping, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0200

Snapper 1931277SM

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Snapper 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 20+

0

0220

Snapper 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8"

$11.99

$

In Stock, Qty 20+

0

0230

Snapper 725381

NUT, Hex Flange, Top Lock, 5/16-18
(Superseded to 703119)

$3.49

$

In Stock, only 2 left!

0

0240

Snapper 1931315SM

BOLT, Carriage, 1/4-20 x 1/2, G5
(Superseded to 703978)

Note: (Not used on Model 1696523)

$3.99

$

In Stock, Qty 20+

0

0250

Snapper 7090001

BOLT, Carriage, Short Neck, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0300

Snapper 1931317SM

BOLT, Carriage, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

0310

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 4 left!

0

0320

Snapper 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

Note: (Not used on Model 1696523)

$4.99

$

In Stock, Qty 20+

0
