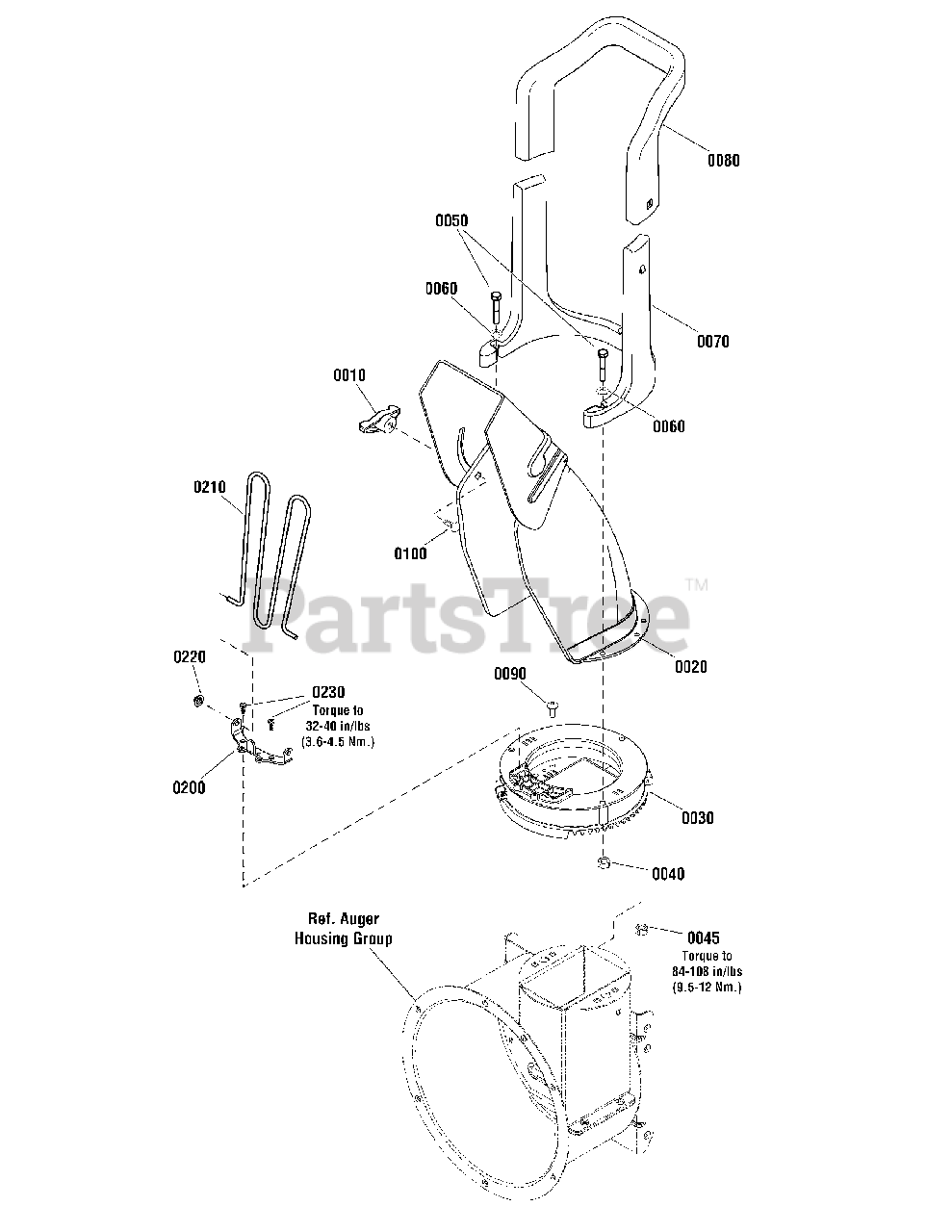

SNL 824R (1696220-00) - Snapper 24" Snow Thrower, 7.5hp Discharge Chute Group - Manual Parts Diagram

24" Snow Thrower, 7.5hp

Discharge Chute Group - Manual Parts Diagram

  • Title

0010

Snapper 7035744

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0020

Snapper 1736313

CHUTE ASSEMBLY
(Superseded to 1736313YP)

$107.99

$

Usually ships in 2-12 days

0

0030

Snapper 1751886

CHUTE ROTATION ASSEMBLY
(Superseded to 1751886YP)

$48.99

$

In Stock, only 1 left!

0

0040

Snapper 722400

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0045

Snapper 1923358

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 51374

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0060

Snapper 720158

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 1752117

HANDLE, Lower
(Superseded to 1752117YP)

$49.99

$

In Stock, only 1 left!

0

0080

Snapper 1752243

HANDLE, Upper
(Superseded to 1752243YP)

$48.99

$

In Stock, only 1 left!

0

0090

Snapper 880845

SCREW, Torx, 1/4-20 x 5/8
(Superseded to 880845YP)

$3.49

$

Usually ships in 2-12 days

0

0100

Snapper 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0200

Snapper 1752883

BRACKET, Chute Guard
(Superseded to 1752883YP)

$15.99

$

Usually ships in 2-12 days

0

0210

Snapper 1733475

CHUTE GUARD
(Superseded to 1733475SM)

$21.99

$

Usually ships in 2-12 days

0

0220

Snapper 1960140

NUT, Push, 3/16
(Superseded to 1960140SM)

$3.49

$

Usually ships in 2-12 days

0

0230

Snapper 880070

SCREW, Hi-Lo, 1/2
(Superseded to 880070YP)

$3.49

$

Usually ships in 2-12 days

0
